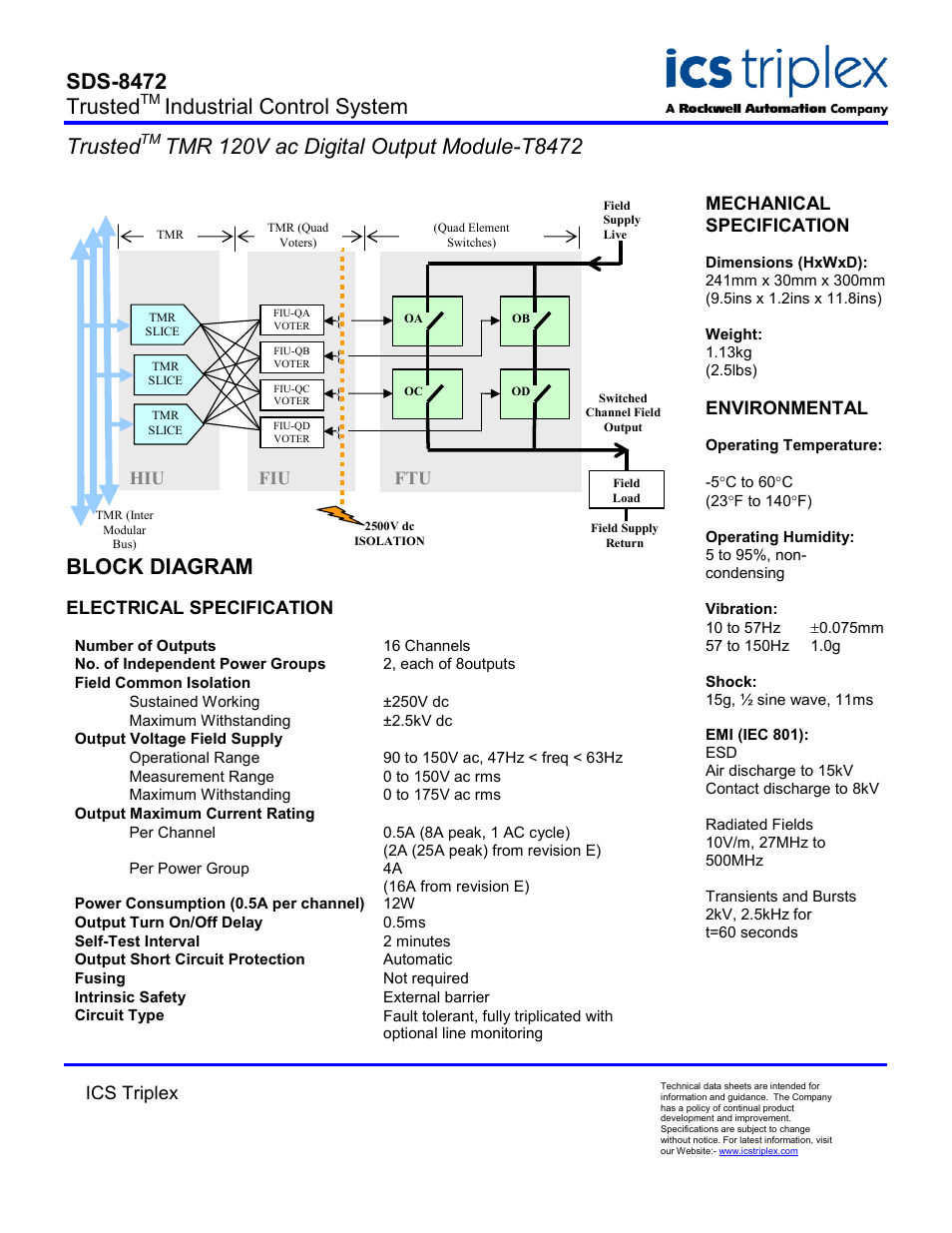

Block diagram, Electrical specification, Sds-8472 trusted – Rockwell Automation T8472 Trusted TMR 120V ac Digital Output Module User Manual
Page 2: Industrial control system trusted, Ft u
