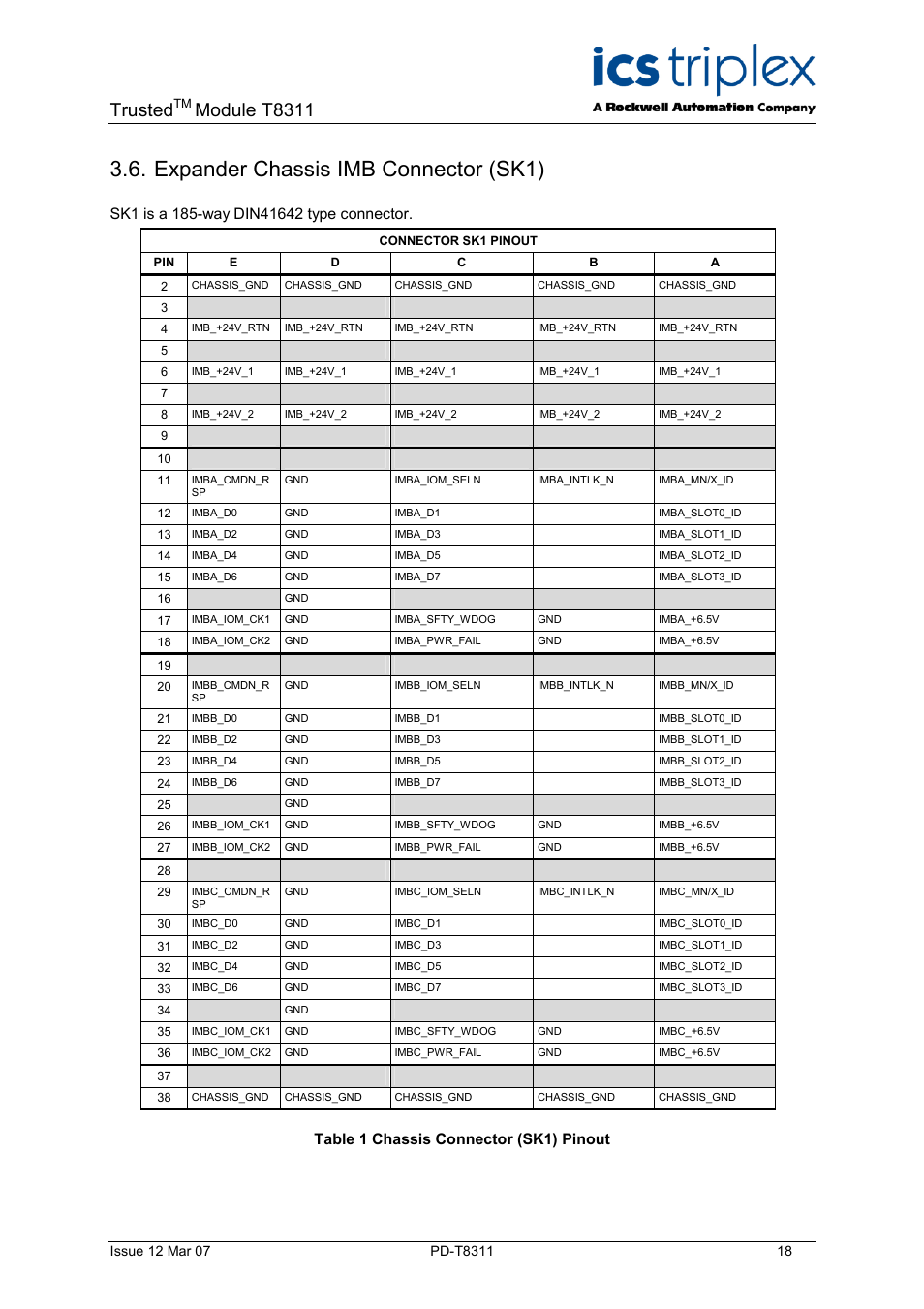

Expander chassis imb connector (sk1), Table 1 chassis connector (sk1) pinout, Trusted – Rockwell Automation T8311 Trusted Expander Interface User Manual
Page 18: Module t8311
