Sequence of events characteristics, Output switch structure, Figure 3 output switch structure – Rockwell Automation T8471 Trusted TMR 120V dc Digital Output Module - 32 Channel User Manual

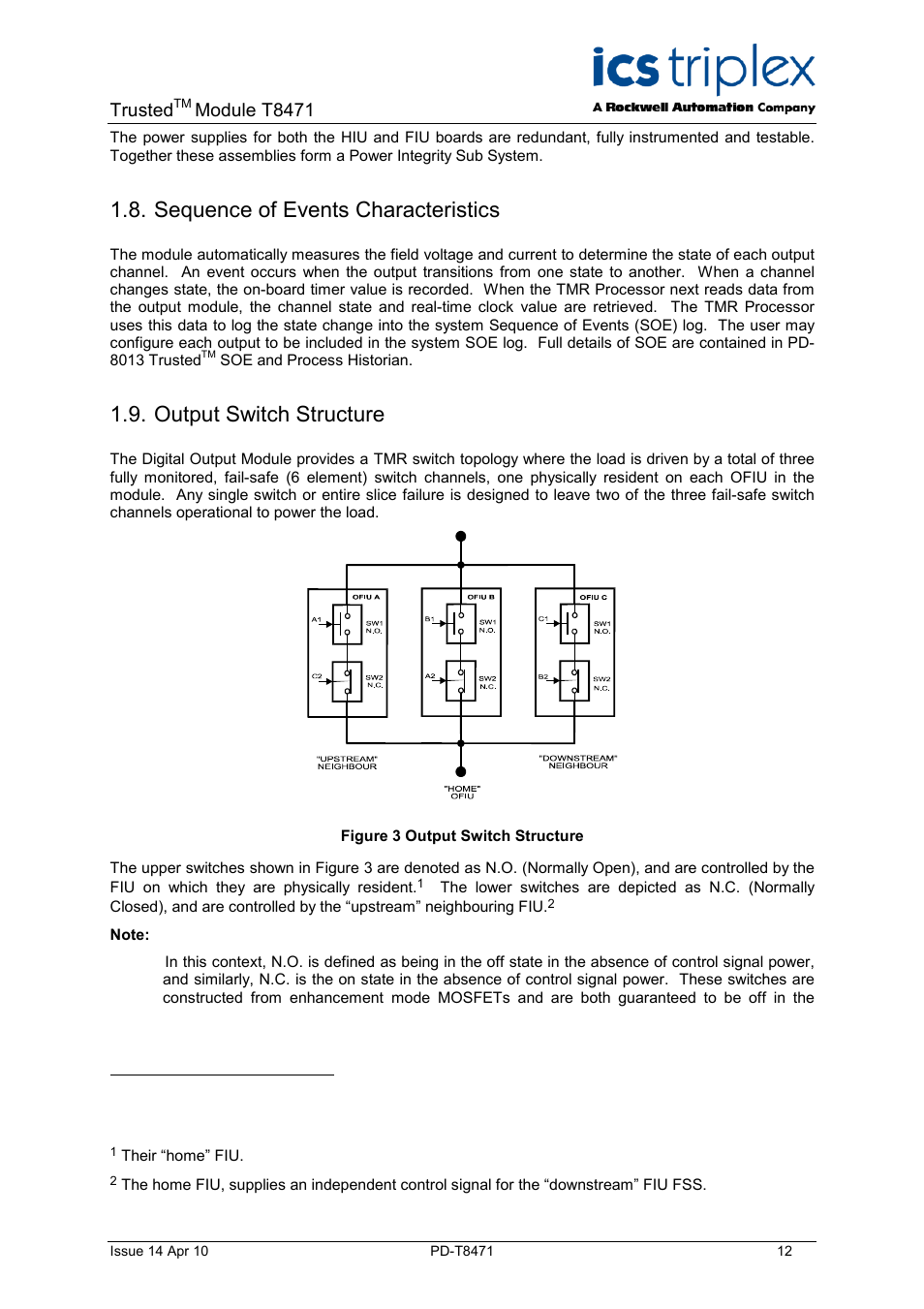

Page 12: Trusted, Module t8471
