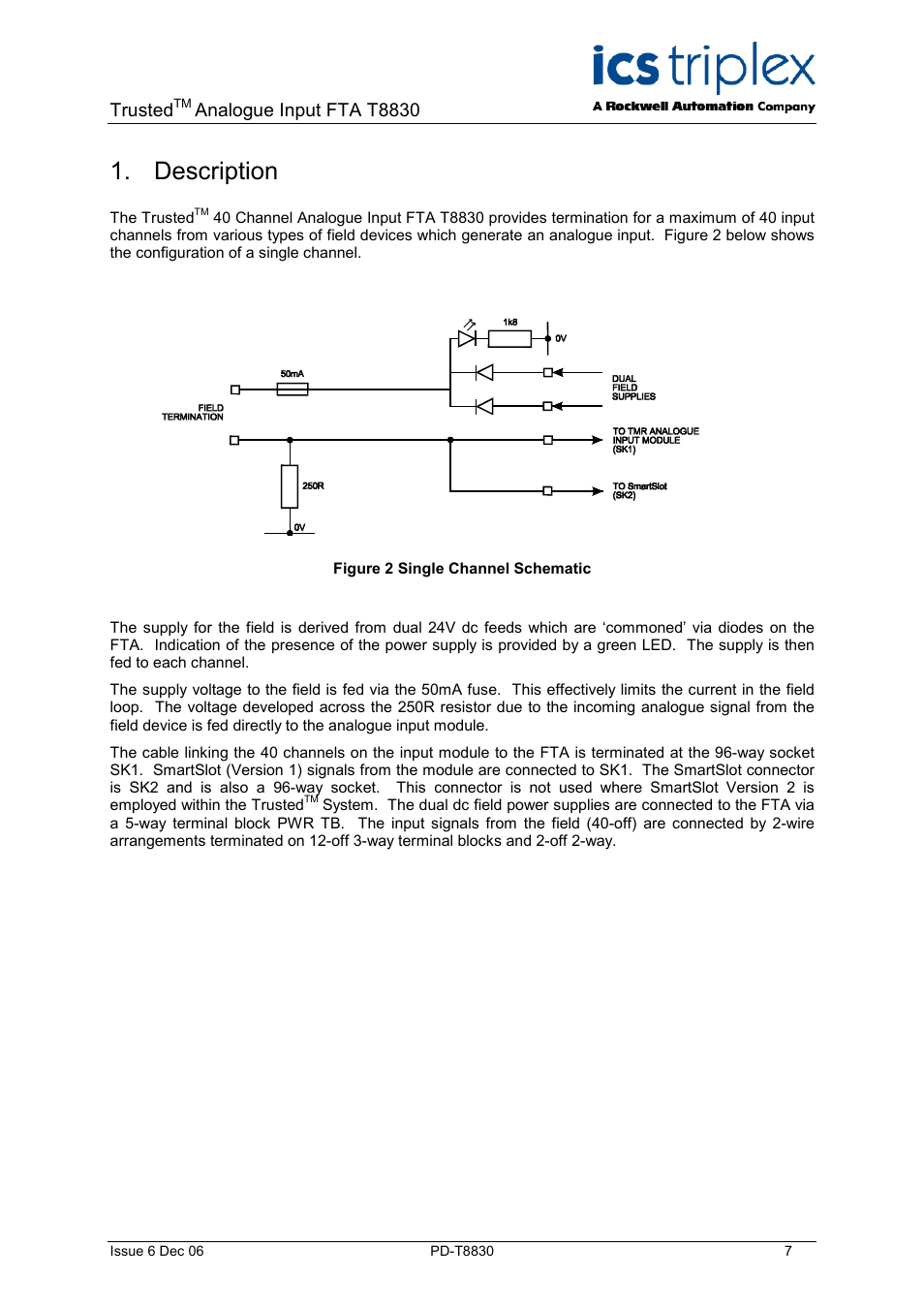

Description, Figure 2 single channel schematic, Trusted – Rockwell Automation T8830 Trusted 40 Channel Analogue Input FTA User Manual
Page 7: Analogue input fta t8830
