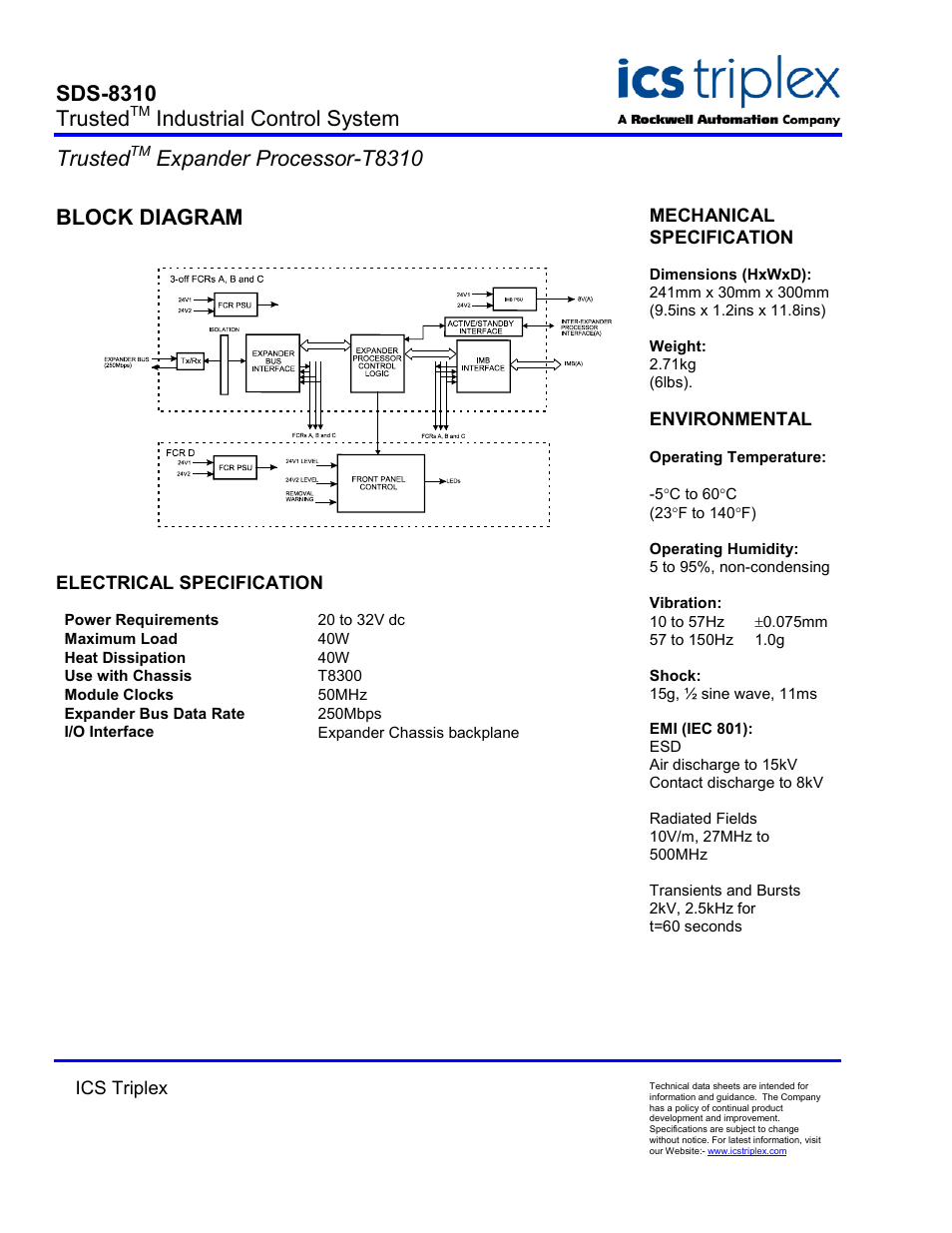

Block diagram, Electrical specification, Sds-8310 trusted – Rockwell Automation T8310 Trusted Expander Processor User Manual
Page 2: Industrial control system trusted, Expander processor-t8310
