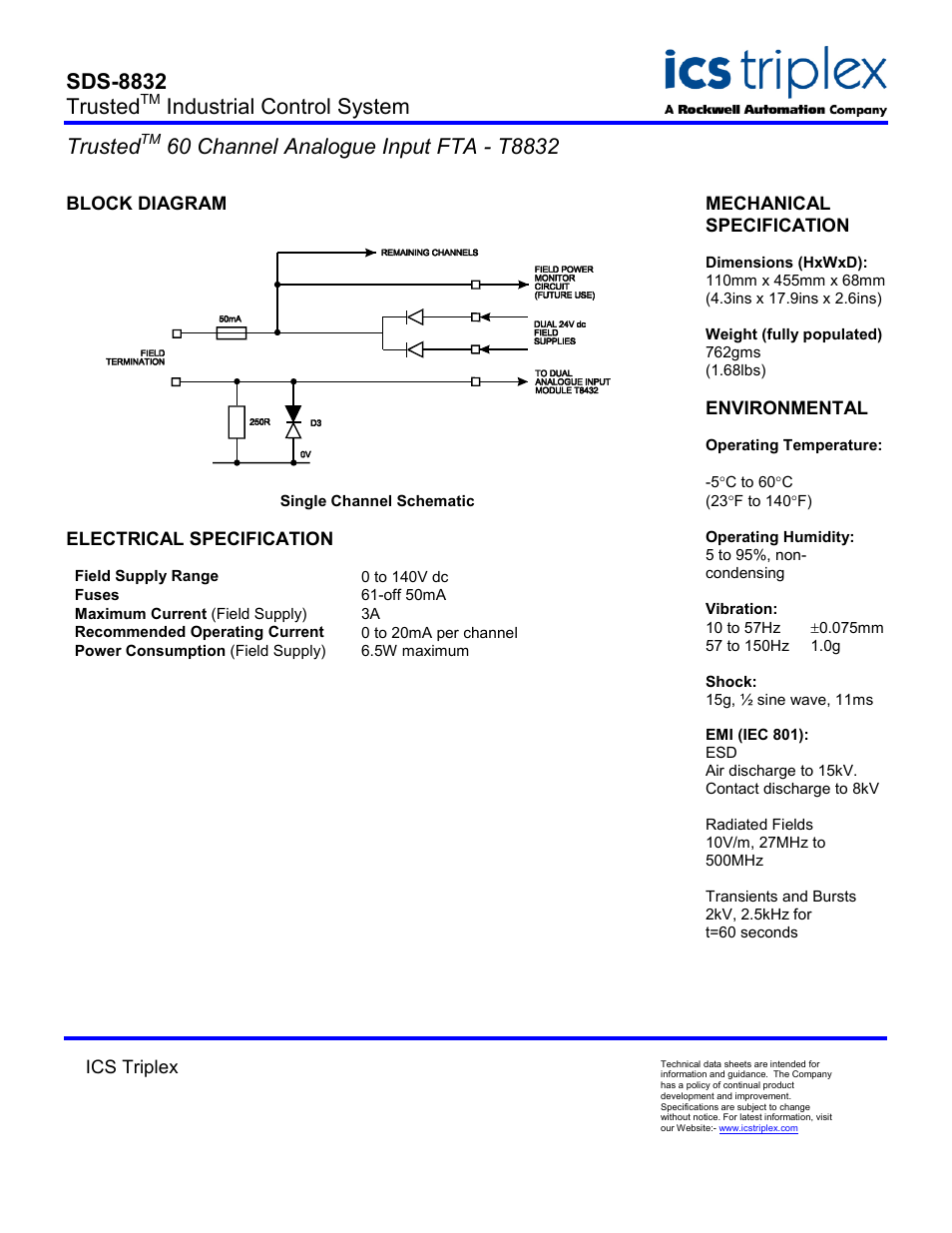

Block diagram, Single channel schematic, Electrical specification – Rockwell Automation T8832 Trusted 60 Channel Analogue Input FTA User Manual
Page 2: Sds-8832 trusted, Industrial control system trusted
