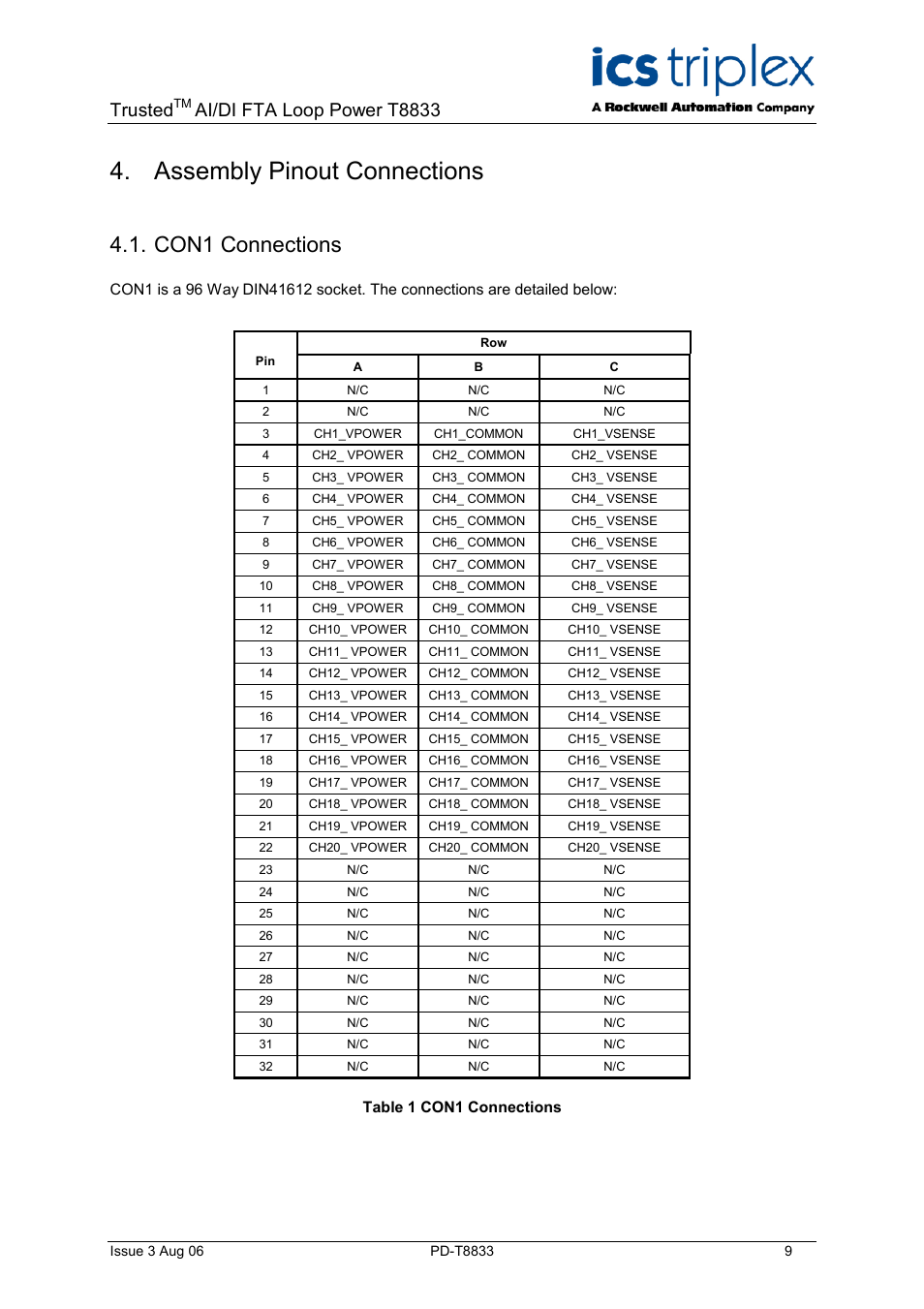

Assembly pinout connections, Con1 connections, Table 1 con1 connections – Rockwell Automation T8833 Trusted 20 Channel Isolated AI/DI FTA Loop Powered User Manual
Page 9: Trusted, Ai/di fta loop power t8833
