Rs232 serial ports, Rs485 serial ports, Examples – Rockwell Automation T8153 Trusted Communications Interface Adaptor User Manual

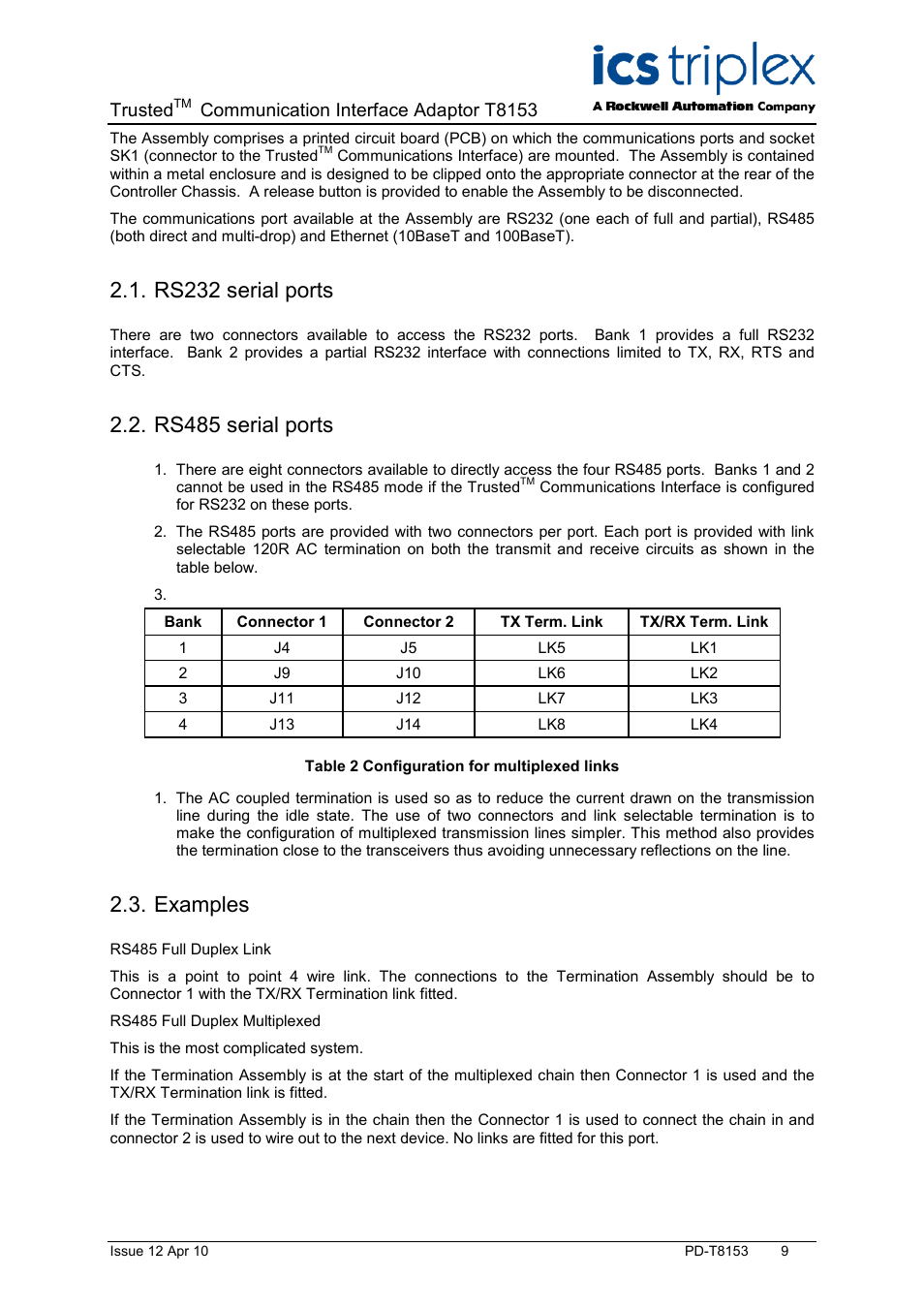

Page 9: Table 2 configuration for multiplexed links, Trusted, Communication interface adaptor t8153
