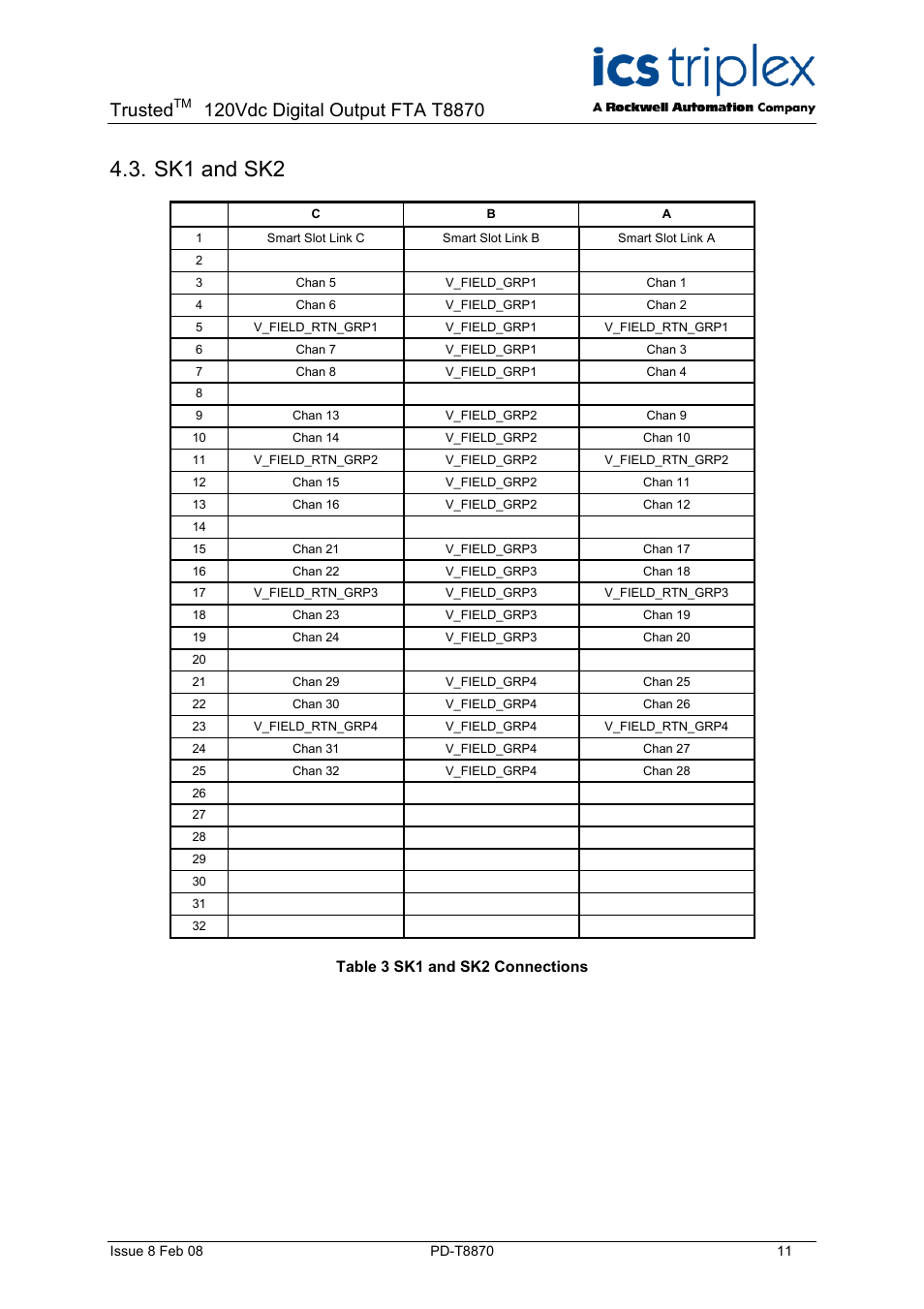

Sk1 and sk2, Table 3 sk1 and sk2 connections, Trusted – Rockwell Automation T8870 Trusted 32 Channel 120V dc Digital Output Digital Output FTA User Manual
Page 11
