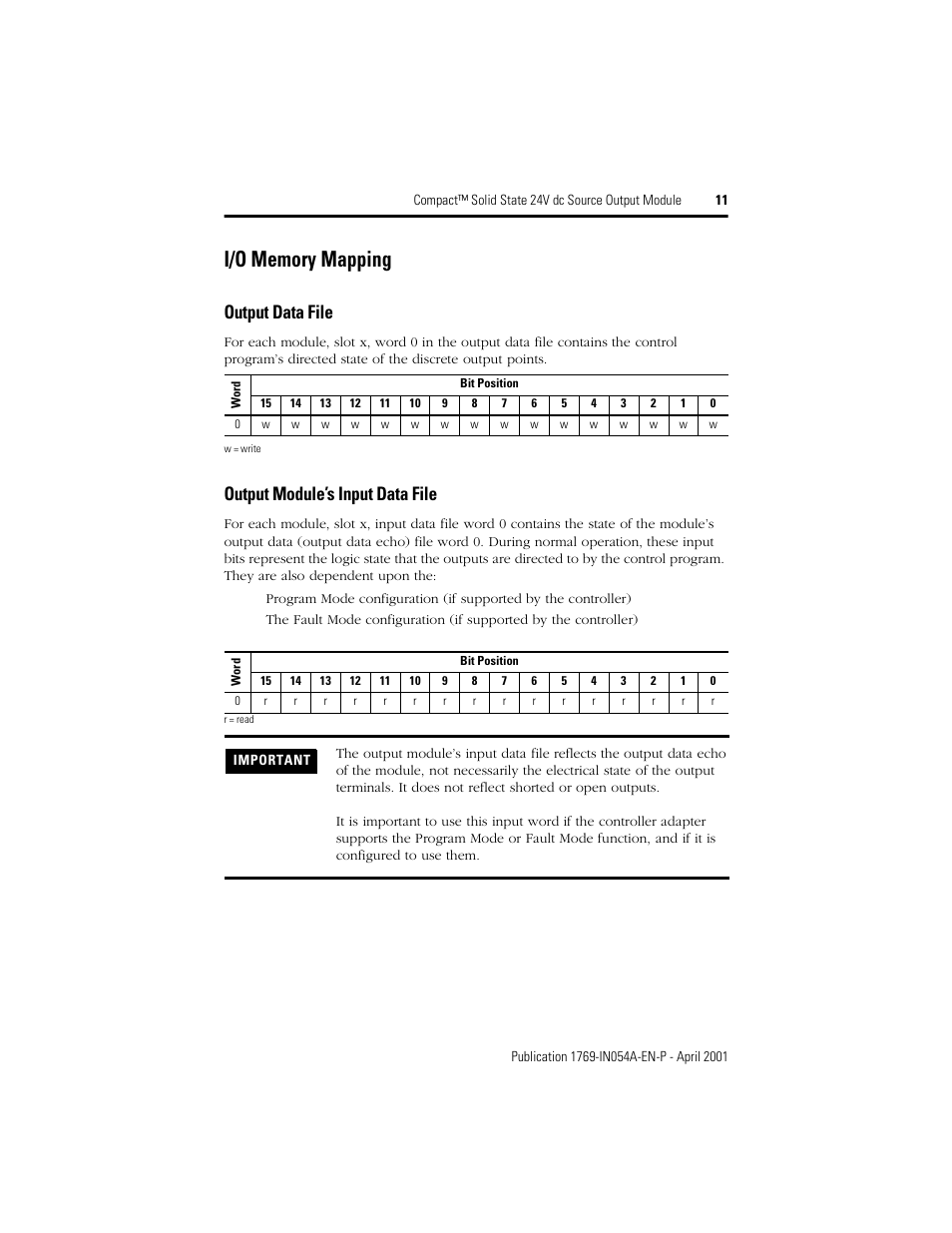

I/o memory mapping, Output data file, Output module’s input data file – Rockwell Automation 1769-OB16 Compact Solid State 24V dc Source Output Module User Manual
Page 11
