Oscilloscope output in bargraph mode, Operation, Install the batteries – Rockwell Automation 1788-CNCHKR ControlNet NetChecker User Manual User Manual

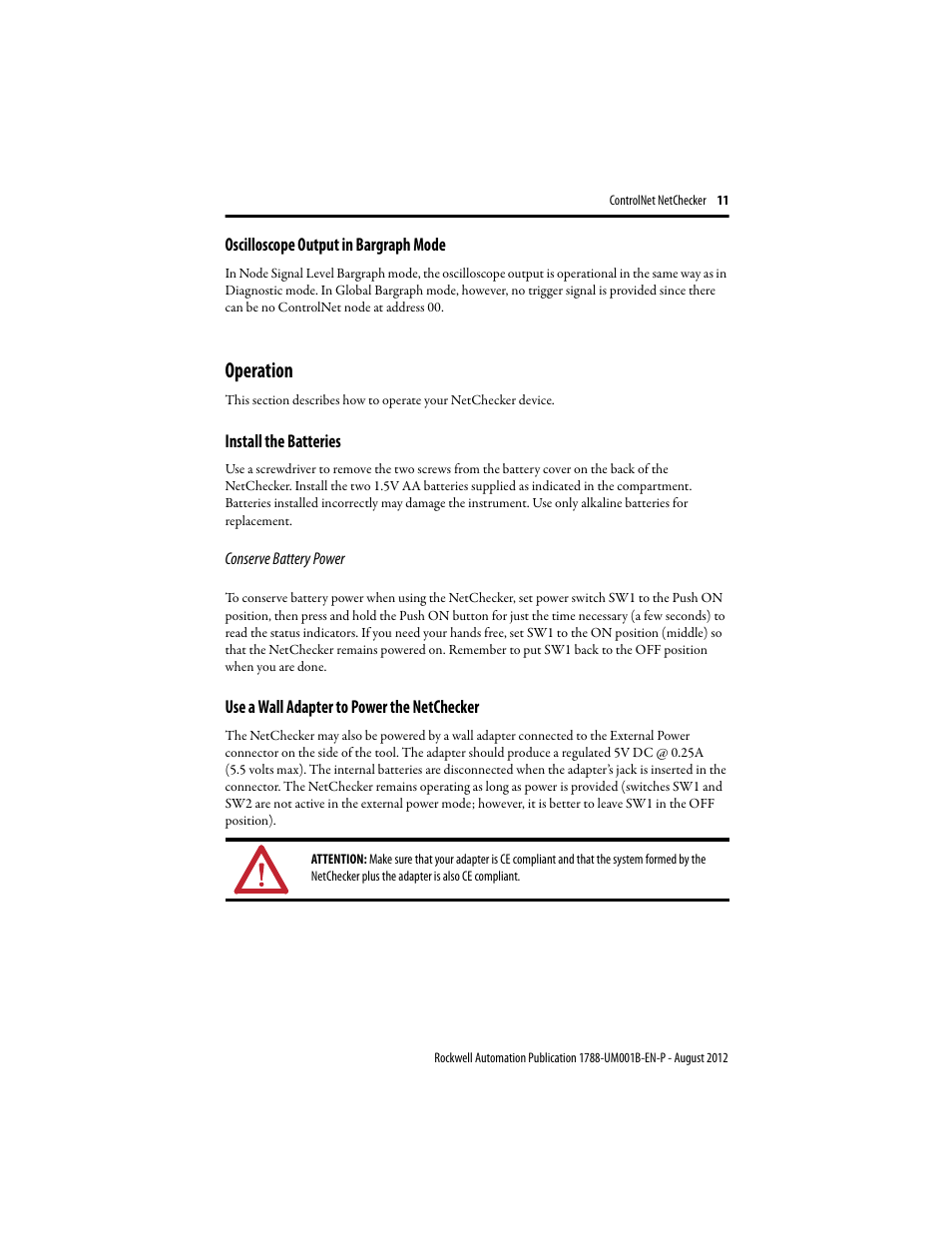

Page 11: Use a wall adapter to power the netchecker
