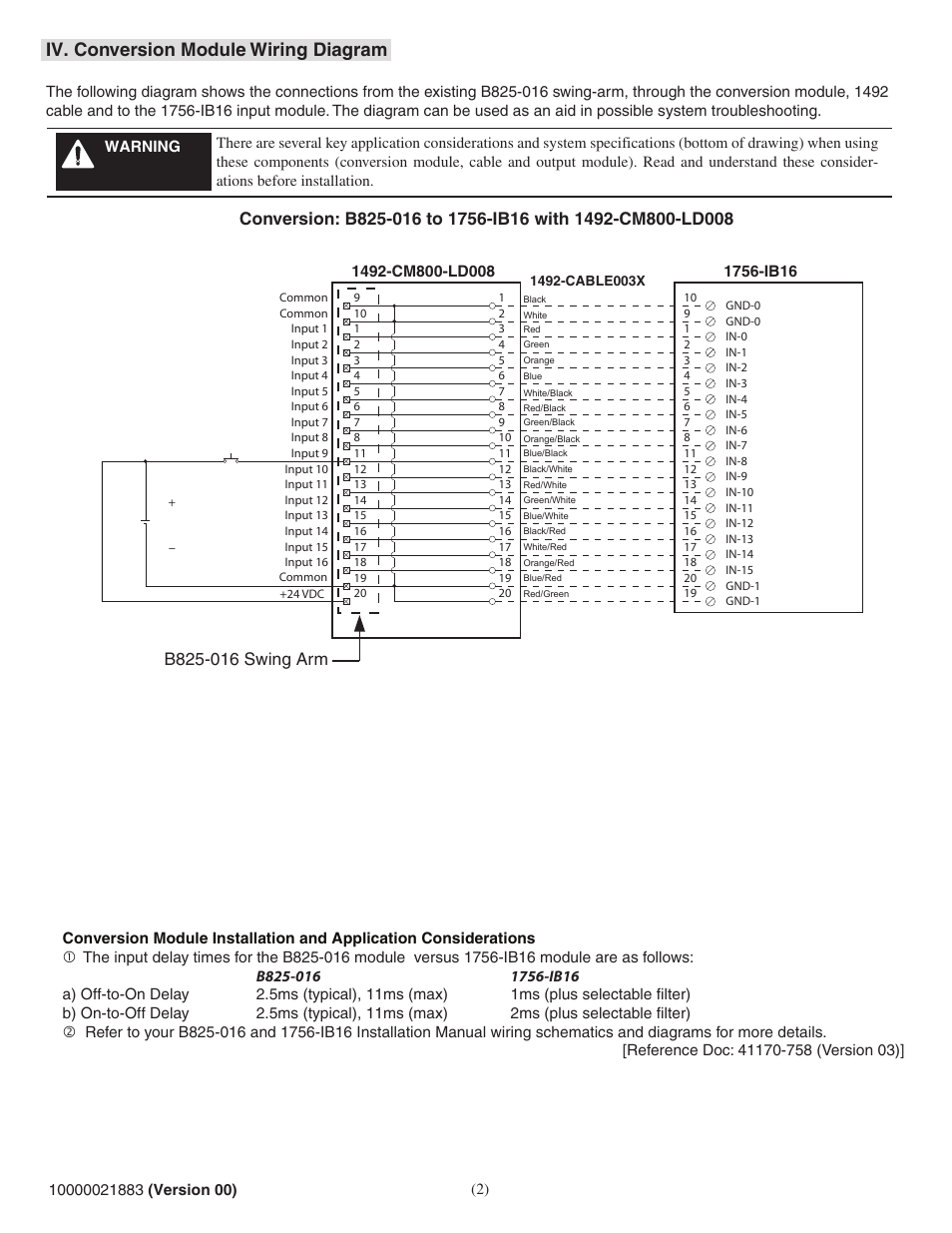

Iv. conversion module wiring diagram – Rockwell Automation 1492-CM800-LD008 Field Wire Conv. Module for Modicon B825-016 to 1756-IB16 User Manual
Page 2
