Switch mode power supply board, Remove components, Install components – Rockwell Automation PF700 Power Interface Board and SMPS Board Replacement - Frames 7, 8, 9, 10 User Manual

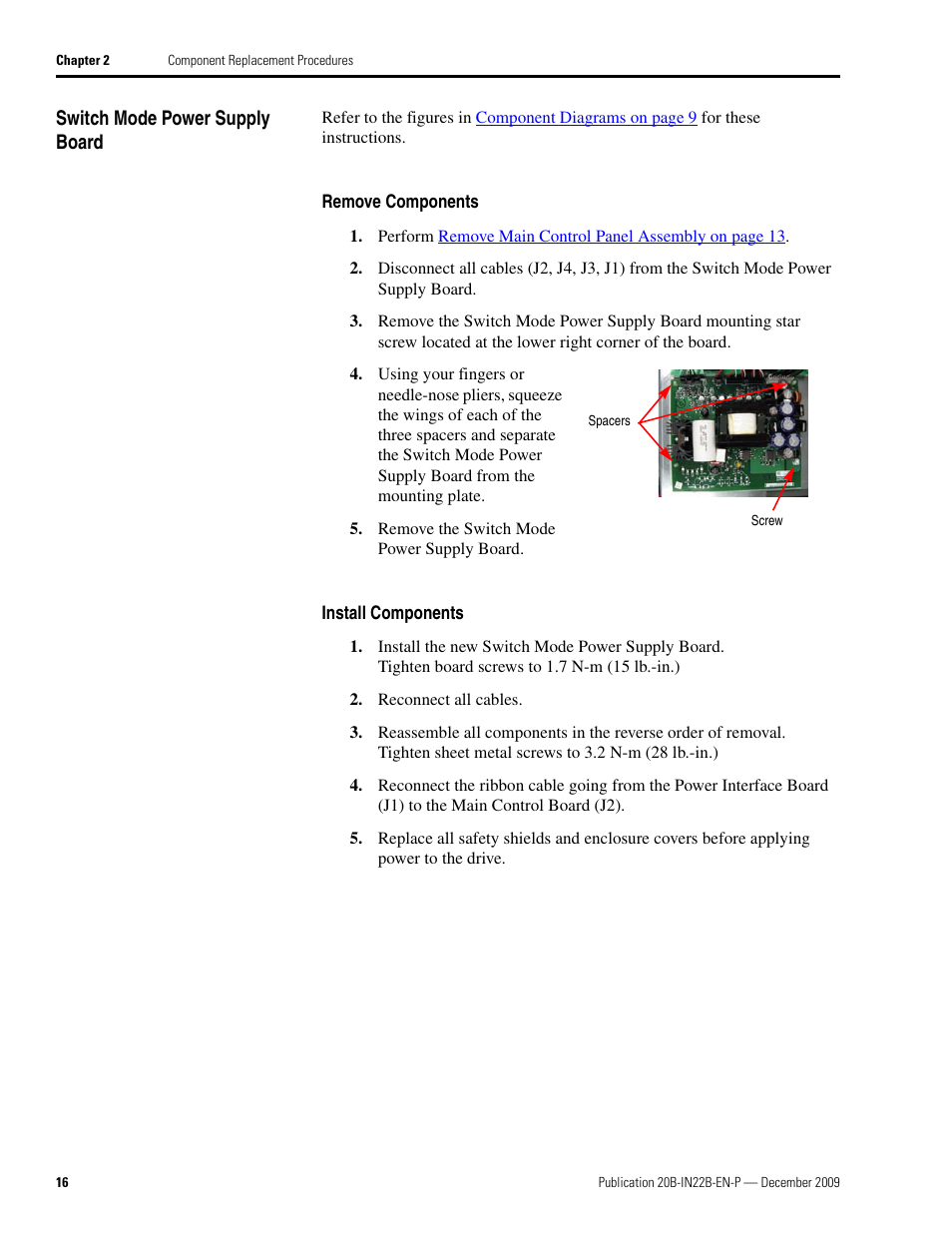

Page 16: Remove components install components
