12
Preparation and Operation Method
2. Connect the vacuum controller, in case it is attached.
＊ ＊ ＊ ＊Prepare additionally an aspirator with displacement of 10 liter/min. as a vacuum device.
● Combination with the vacuum controller VR100.

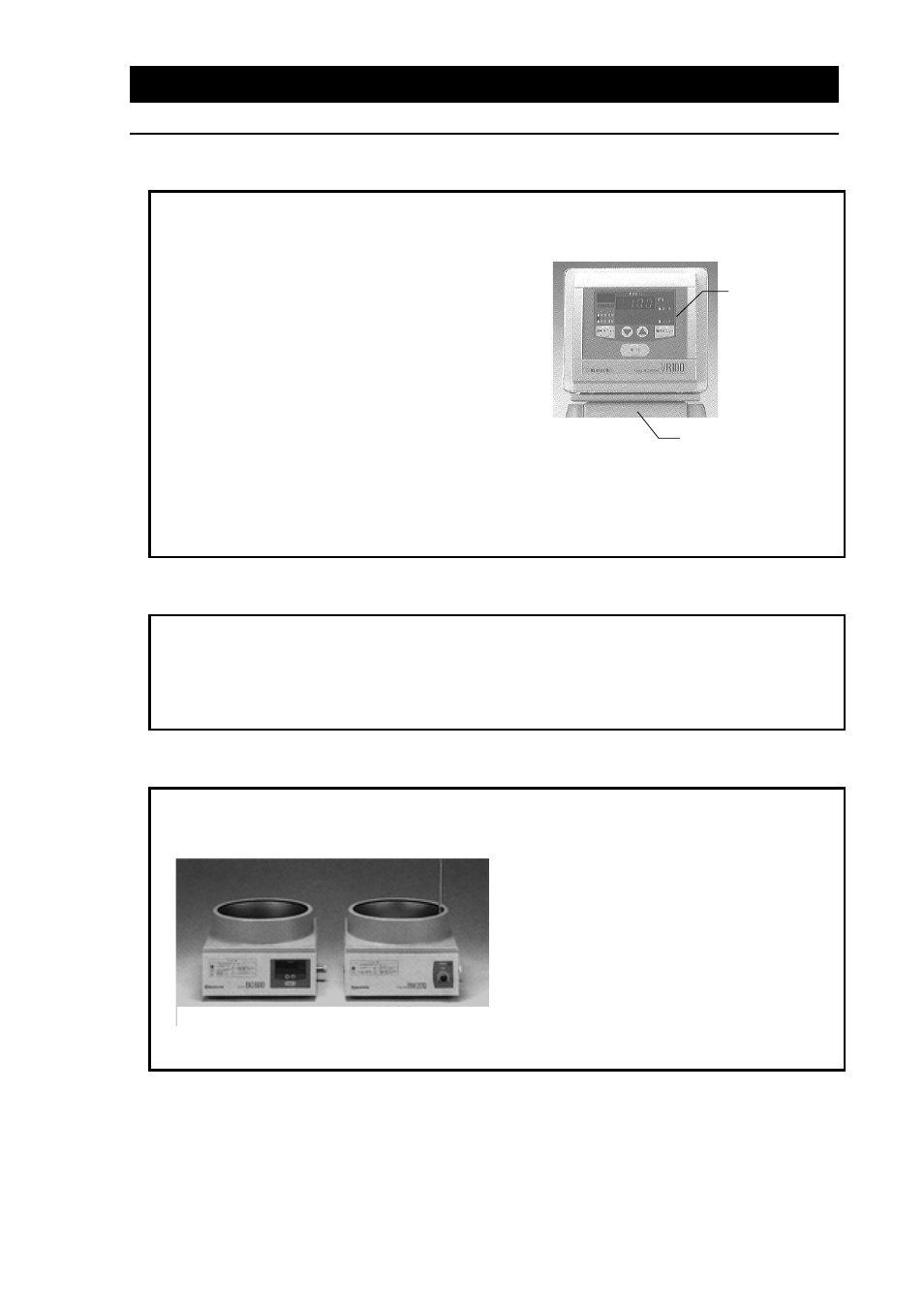

You can fix the vacuum controller, as shown in the
right picture, by metal fastener onto the controller
box of RE400Rotary Evaporator.
In addition, you can connect the power code of
vacuum controller VR100 to the power socket on
the back of Rotary Evaporator controller.
Look at the back panel of vacuum controller where hoses to connect are indicated. Follow the
indications and connect the hoses.
＊ ＊ ＊ ＊Be sure to read the attached operation manual to handle the vacuum adjuster.
3. Connect the power plug into an outlet.
1. Connect the power code of the body to AC100V power source.
Never fail to connect the earth for safety.
＊ ＊ ＊ ＊ Be sure to switch off whenever you insert or pull out the power code.
2. Then, joint the motor connecting cable to the socket on the back of controller.
4. Prepare bath (separately sold)
Set the bath in front of the body, and pour water into it.
＊ ＊ ＊ ＊ Be sure to read the attached operation manual to handle the bath.
RE400
VR100
BM400 BM200
