18

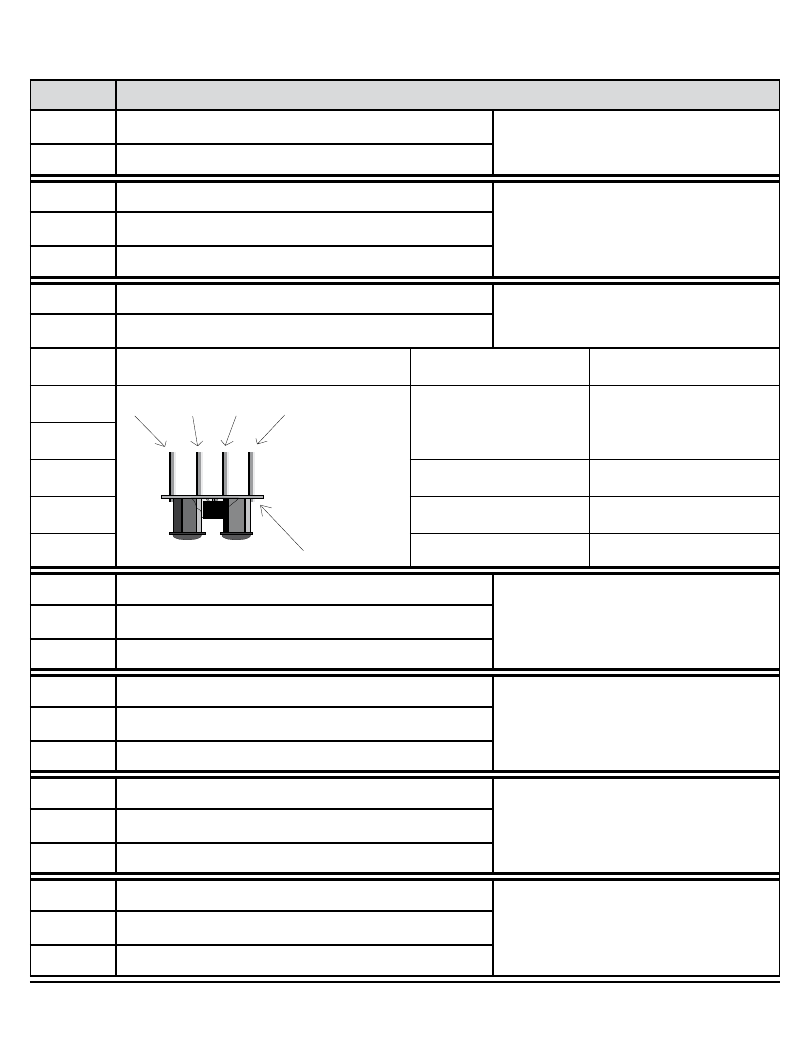

•Connections
Terminal Signal
1 Neutral / –
Power supply
2 Live / +
3 Output +
Analogue output
(/AO option only)
4 Current –
5 Voltage –
6 Security Link
Link to allow access to the set-up
mode (normally not connected)
7 Security Link
Thermocouple inputs (via CJC Board) RTD inputs Millivolt inputs
8
+ve --ve White
mark
8 9 10 11
Not used Not used
9
10 B mV input –
11 B
sense
mV input +
12 A Not used
13 Normally Closed
Alarm Channel One
(/4RO option only)
14 Common
15 Normally Open
16 Normally Closed
Alarm Channel Two
(/4RO option only)
17 Common
18 Normally Open
19 Normally Closed
Alarm Channel Three
(/4RO option only)
10 Common
21 Normally Open
22 Normally Closed
Alarm Channel Four
(/4RO option only)
23 Common
24 Normally Open
