WarmlyYours Mirror Defogger - Manual (Page 4)

INSTALLATION INSTRUCTIONS
This appliance must be installed in accordance with the instructions
in this manual and the NEC guidelines relating to bathroom electrical
fixtures. The Mirror Defogger must be on a GFCI protected circuit
and wired by a professional certified to do electrical wiring.
Determine Location of Mirror Defogger
Step 1

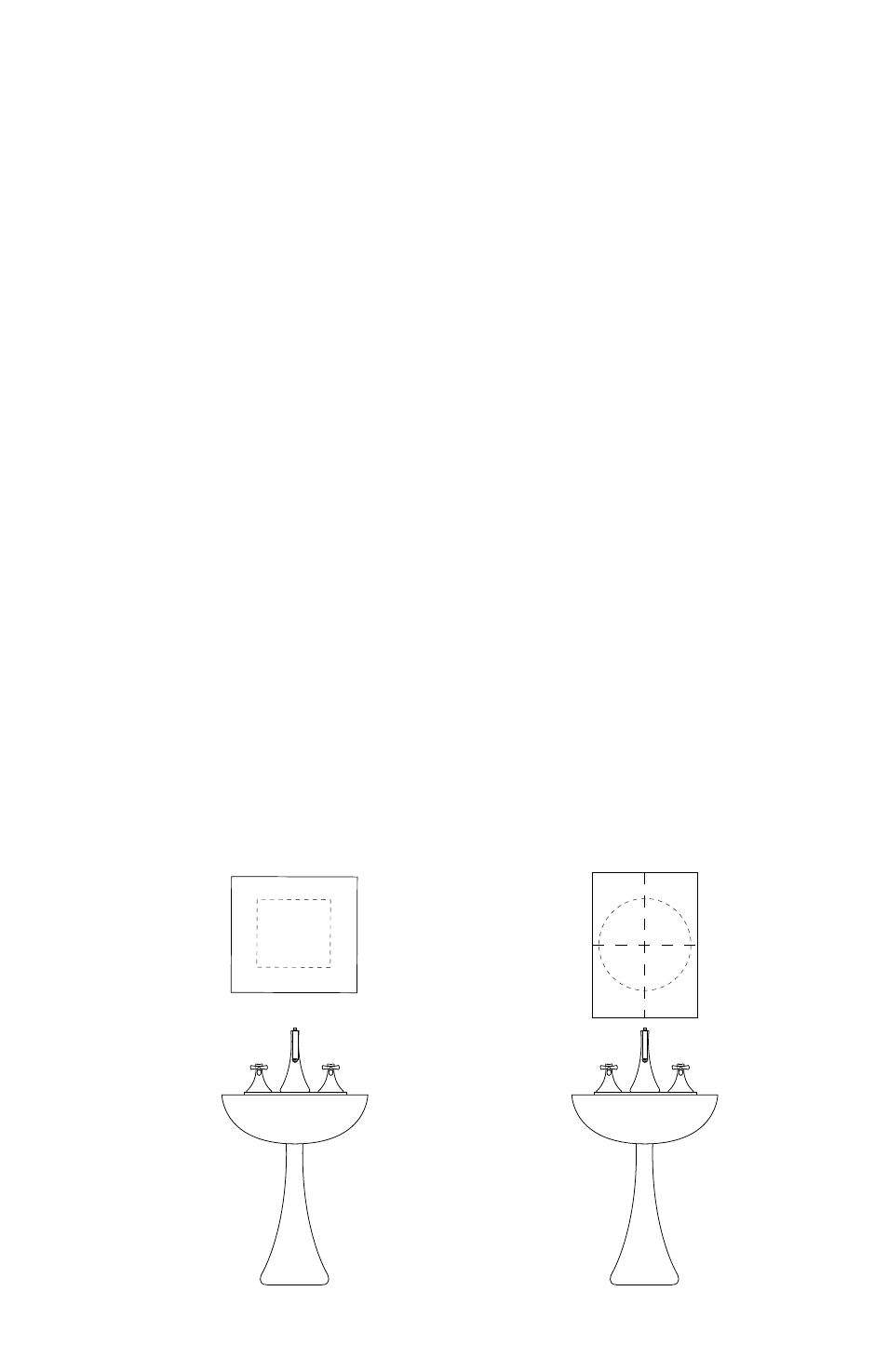

Choose a location for your Mirror Defogger so that everyone in
your home can enjoy it.
• For the larger rectangular and oval shaped Mirror Defoggers,
place the system so that the top edge is 6’6” above the floor.
Refer to
Diagram A.
• For smaller rectangular and circular shaped Mirror Defoggers,
center them over the vanity and in the center of the mirror.
Refer to
Diagram B.
Step 2
Mark the wall with the location where you will be installing the
Mirror Defogger. Mark the location where the lead wires leave the
Mirror Defogger.
2
Mirror
Wall
ClearlyYou™ Defogger
Existing
electrical box
for vanity
lighting
New single
gang electrical
box
QuickTime™ and a
TIFF (Uncompressed) decompressor
are needed to see this picture.
Mirror defogger
Remove Protective
Paper
Power Cord
Back of Mirror
Mirror Defogger
leads from Mirror Defogger
to light junction box
Model # Shape Width (Inches) Length (Inches) Watts Volts Amps MSRP
FFM-1218 Rectangle 12 18 29 120 0.24 $65.00
FFM-1824 Rectangle 18 24 57 120 0.48 $85.00
FFM-2432 Rectangle 24 32 96 120 0.80 $105.00
FFM-15R Round 15 20 120 0.17 $65.00
FFM-20R Round 20 41 120 0.34 $85.00
FFM-25R Round 25 65 120 0.54 $105.00
FFM-1826OV Oval 18 26 45 120 0.38 $85.00
FFM-2432OV Oval 24 32 76 120 0.63 $105.00
Circle
Circle
Circle
Diagram B
Mirror
Wall
ClearlyYou™ Defogger
Existing
electrical box
for vanity
lighting
New single
gang electrical
box
QuickTime™ and a
TIFF (Uncompressed) decompressor
are needed to see this picture.
Mirror defogger
Remove Protective
Paper
Power Cord
Back of Mirror
Mirror Defogger
leads from Mirror Defogger
to light junction box
Model # Shape Width (Inches) Length (Inches) Watts Volts Amps MSRP
FFM-1218 Rectangle 12 18 29 120 0.24 $65.00
FFM-1824 Rectangle 18 24 57 120 0.48 $85.00
FFM-2432 Rectangle 24 32 96 120 0.80 $105.00
FFM-15R Round 15 20 120 0.17 $65.00
FFM-20R Round 20 41 120 0.34 $85.00
FFM-25R Round 25 65 120 0.54 $105.00
FFM-1826OV Oval 18 26 45 120 0.38 $85.00
FFM-2432OV Oval 24 32 76 120 0.63 $105.00
Circle
Circle
Circle
Diagram A
