GelDoc-It TS Imaging System 7

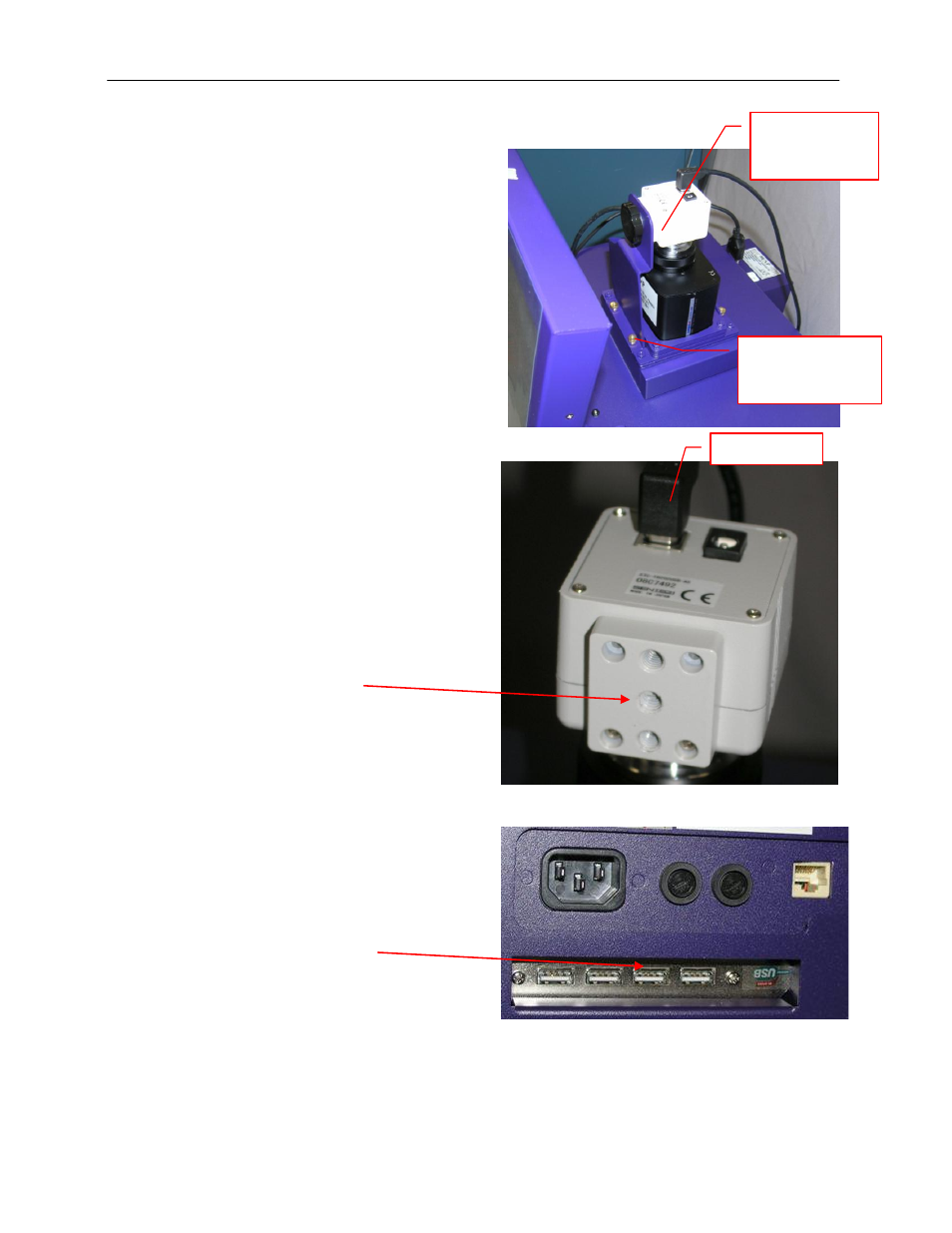

Motorized Lens Configuration
The camera, zoom lens, and diopter are
assembled at the UVP factory. Remove the cap
from the lens if in place.
1. Using the four thumb screws provided, secure
the bracket to the base.
2. Slide the camera and lens assembly into the
camera bracket.
3. Insert and tighten the knob/washer in the
central hole in the camera to secure the
camera to the bracket.
4. Plug the camera cable into the top the camera
and the other end into the UBS port on back
of the darkroom.
Thumb screws
secures the
bracket to the base
Camera and
motorized lens
assembly
Camera cable
