GelDoc-It TS Imaging System 5
Set-up Instructions
Components

Camera with zoom lens, bracket, filter, cables

GelDoc-It TS darkroom

Windows XP operating system and software to control the GelDoc-It TS

USB storage device, 64MB (minimum)

Transilluminator (may be ordered separately)
WARNING: DO NOT ATTEMPT TO CONNECT ANY WIRING WHILE THE
EQUIPMENT IS CONNECTED TO ANY POWER SUPPLY
CAUTION
Do not install the system in places with high moisture, dust, or high temperature. Do not use any oil or
petroleum based cleaner for the cabinet. Use only mild soap or detergent solution for cleaning. Ensure that
the system is turned OFF during cleaning. Keep the equipment away from motors or other large magnetic
equipment apparatus.
Installing the Filter
To install the 50mm sq Ethidium Bromide (EtBr) filter:
1. Carefully remove the filter from the protective plastic
case, holding the filter at the edges to prevent
fingerprints.

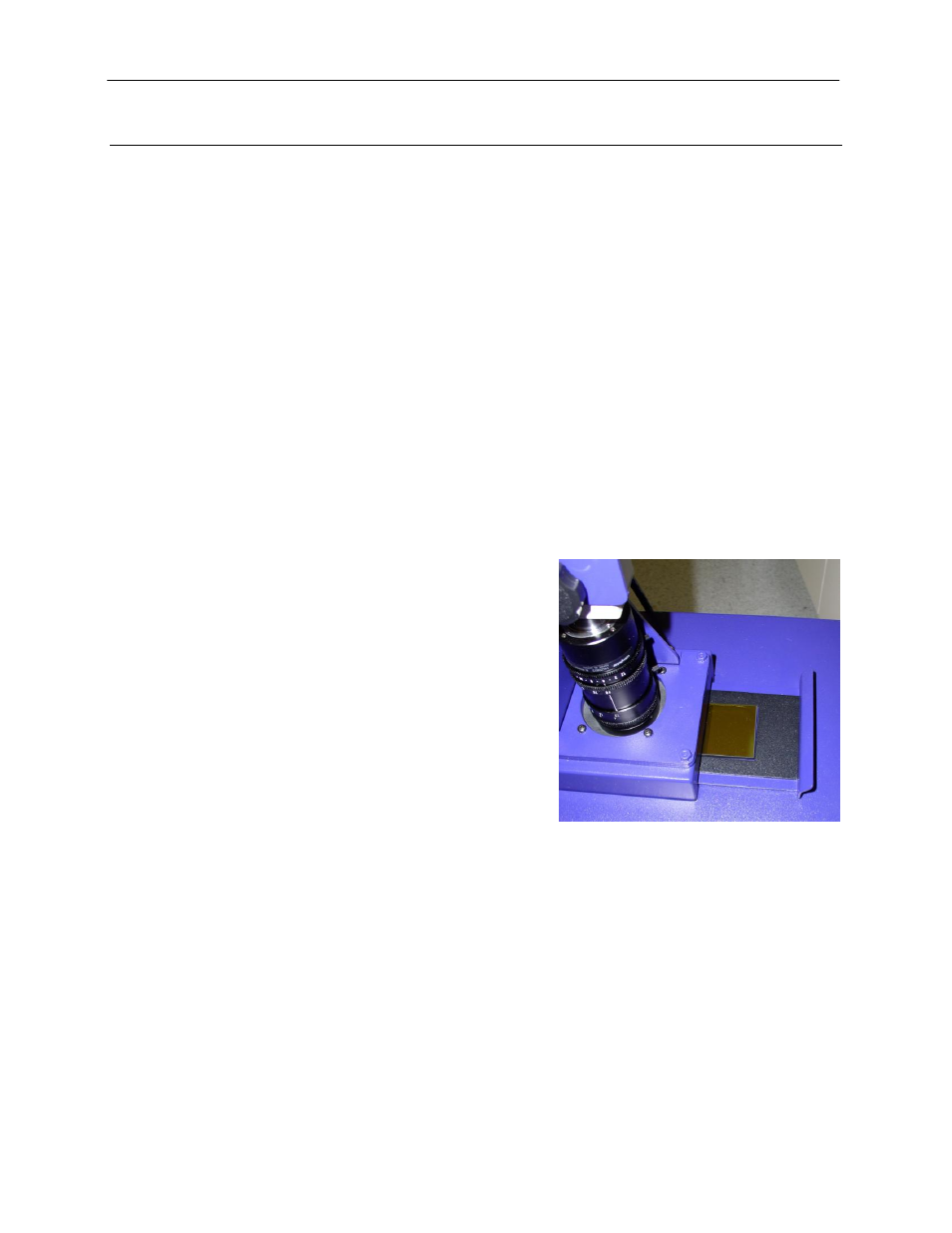

2. The filter tray is located under the camera bracket on
the right side top of the darkroom. Slide the tray open.
3. Place the filter inside the filter tray so that the text on
the edge of the filter is positioned so the letters are
right side up when facing you.
Additional filters are available. Refer to Accessories for ordering information.
