GelDoc-It TS Imaging System 6

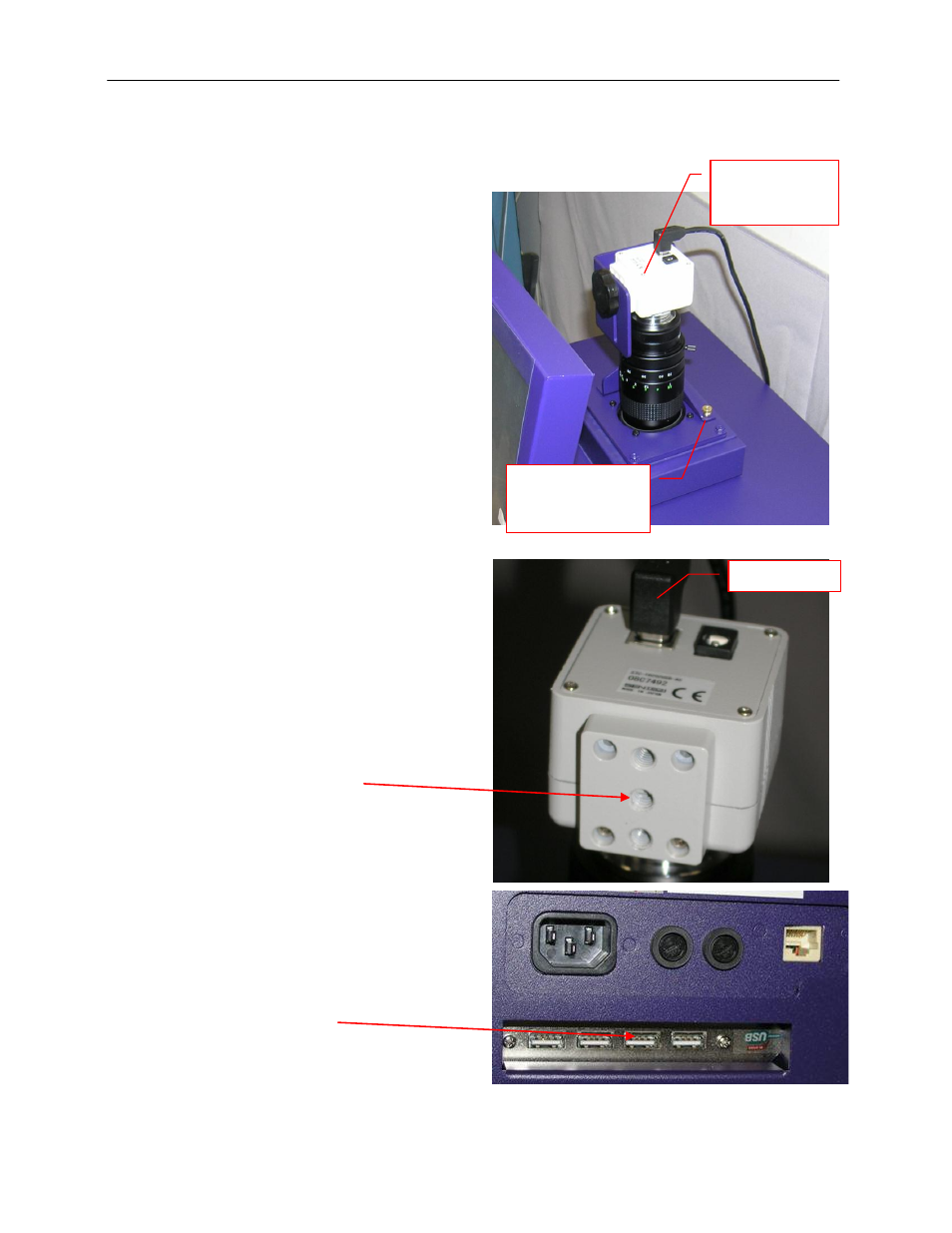

Camera Set-up
Manual Lens Configuration
The camera, zoom lens, and diopter are
assembled at the UVP factory.
1. Remove the cap from the lens if in place.
2. Using the four thumb screws provided,
secure the bracket to the base.
3. Slide the camera and lens assembly into the
camera bracket. Slide the lens through the
center hole in the gasket. The gasket forms
a seal around the lens.
4. Insert and tighten the knob/washer in the
central hole in the camera to secure the
camera to the bracket.
5. Plug the camera cable into the top the
camera and the other end into the UBS port
on back of the darkroom.
Thumb screws
secures the
bracket to the base
Camera and
manual lens
assembly
Camera cable
