Unisteer 8011530 Corvette Power Rack & Pinion Kit 1958-1962 - Manual (Page 2)

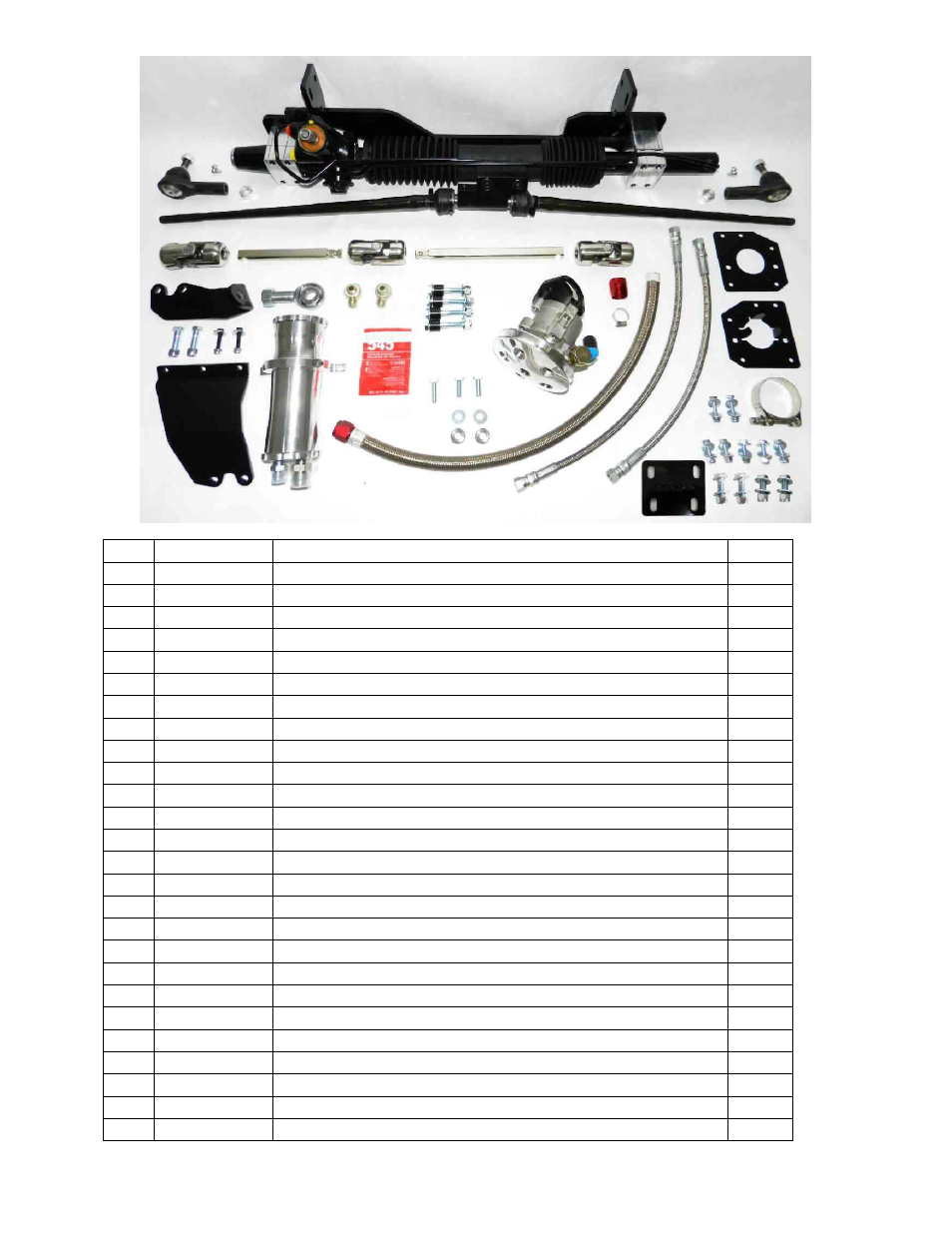

Page 2 656460
# Part # Description Qty
1 8011840-01 58-62 Vette Power Rack & Bracket w/Tie Rod Ends 1
2 8020940 M14 x 1.5 Outer Tie Rod End w/zerc and jam nut 2
3 8026380 Vette Core Support plate 1
4 231490 3/
8”-16 x 1½” Bolt
2
4 230810 3/8”-16 x 1” Bolt 2
4 200850
5/16” Zinc Flat Washer
8
4 120490
3/8”-16 Lock Nut
4
5 8020790 Remote Reservoir w/6AN & 10AN 1
6 231480 ¼”-20 x 1¼“ Bolt 2
6 201000
¼“ Zinc Flat Washer
2
6 120660 ¼“-20 Nylon Lock Nut 2
7 8026720 21” 6AN Pressure Line (lower port on rack) 1
8 8026660
17¼“ 6AN Return Line (upper port on rack)
1
9 8026730 10AN Pump Feed Line 1
10 547620 6.625” Notched ¾”DD x 9/16”-30 Spline Shaft 1
11 547630 10” 9/16”-30 Spline x Notched ¾”DD Shaft 1
12 130350 55mm
– 59mm Column Clamp
1
13 8050770 Chrome Shaft Support Bearing w/Nut 1
14 232350 ¼”-20 x 1” Hex Bolt 5
14 231360
¼”-20 x 1¼” Hex Bolt
2
14 201000
Zinc ¼” Flat Washer
14
14 120660 ¼”-20 Nylon Lock Nut 7
15 231490 3/8”-16 x 1½” Hex Bolt 2
15 120490
3/8”-16 Lock Nut
2
16 8026430 1958-62 Power Vette Shaft Support Bracket 1
17 8026440 Black Outer Column Bracket 1
1
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
2
2
19 20 21
22
23 24
25
26
27
28
29
