2.1 Physical
Description
2.1.1 Exterior – Front View

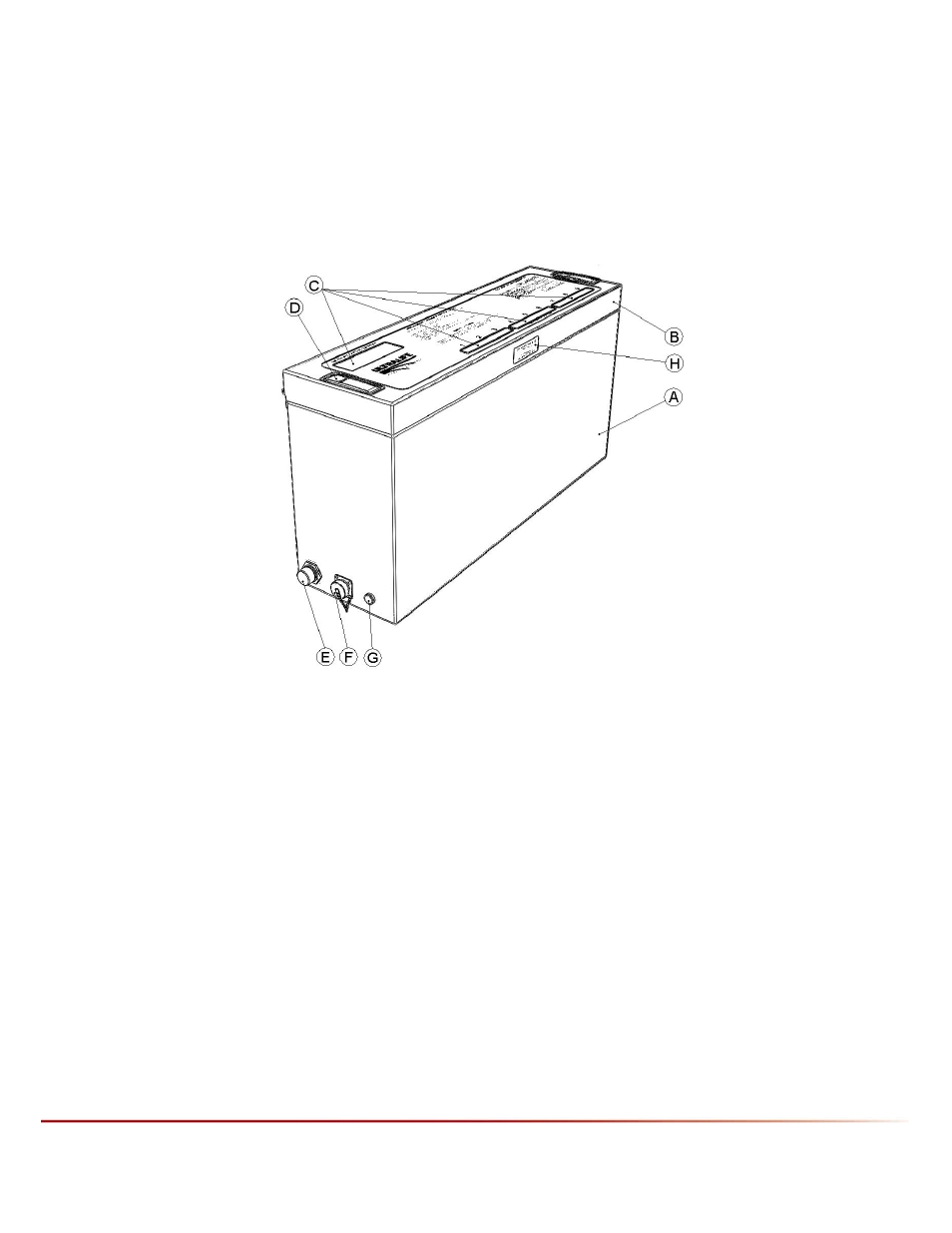

Figure 1: CH0007 Front View
(A)
Charger Body – The charger body is made from aluminum
(B)
Charger Lid – The charger lid is made from aluminum
(C) Charger Lid View Ports – Several areas of the charger lid have polycarbonate label- covered
windows for viewing the status of the charger without opening the lid.
(D)
Lid Latches – Metal push button-style latches secure the lid tightly to the base.
(E)
USB Input Connector – There is a round circular connector that houses a USB input socket. This
connector should be protected by a screw-on cap when not in use. (cap is provided and attached
using chain)
(F)
Power Connector – There is a circular connector that houses the power socket. This connector
should be protected by a screw-on cap when not in use (cap is provided and attached using chain)
(G) Pressure Release Vent – Watertight pressure release vent helps balance internal pressure of
charger case.
(H)
ID Label – Shows manufacturer information and serial number
