7 ACCESSORIES
7.1 Power Cable
Recommended power cable for the charger is CA0011 and is supplied with the charger. One end
of the power cable is terminated with a connector that mates to the charger and the other end is left
free. The user is required to wire the free end to the DC power source based on the following chart.
Connection Wire
color
Mating pin on charger
power connector
POSITIVE RED
A
POSITIVE WHITE
B
NEGATIVE WHITE/BLACK
C
POSITIVE ORANGE
D
NEGATIVE GREEN
E
N/A N/A
F
N/A N/A
G
N/A N/A
H
NEGATIVE BLACK
J
N/A N/A
K
DRAIN BLUE
L
Table 3: Power cable pin configuration and description

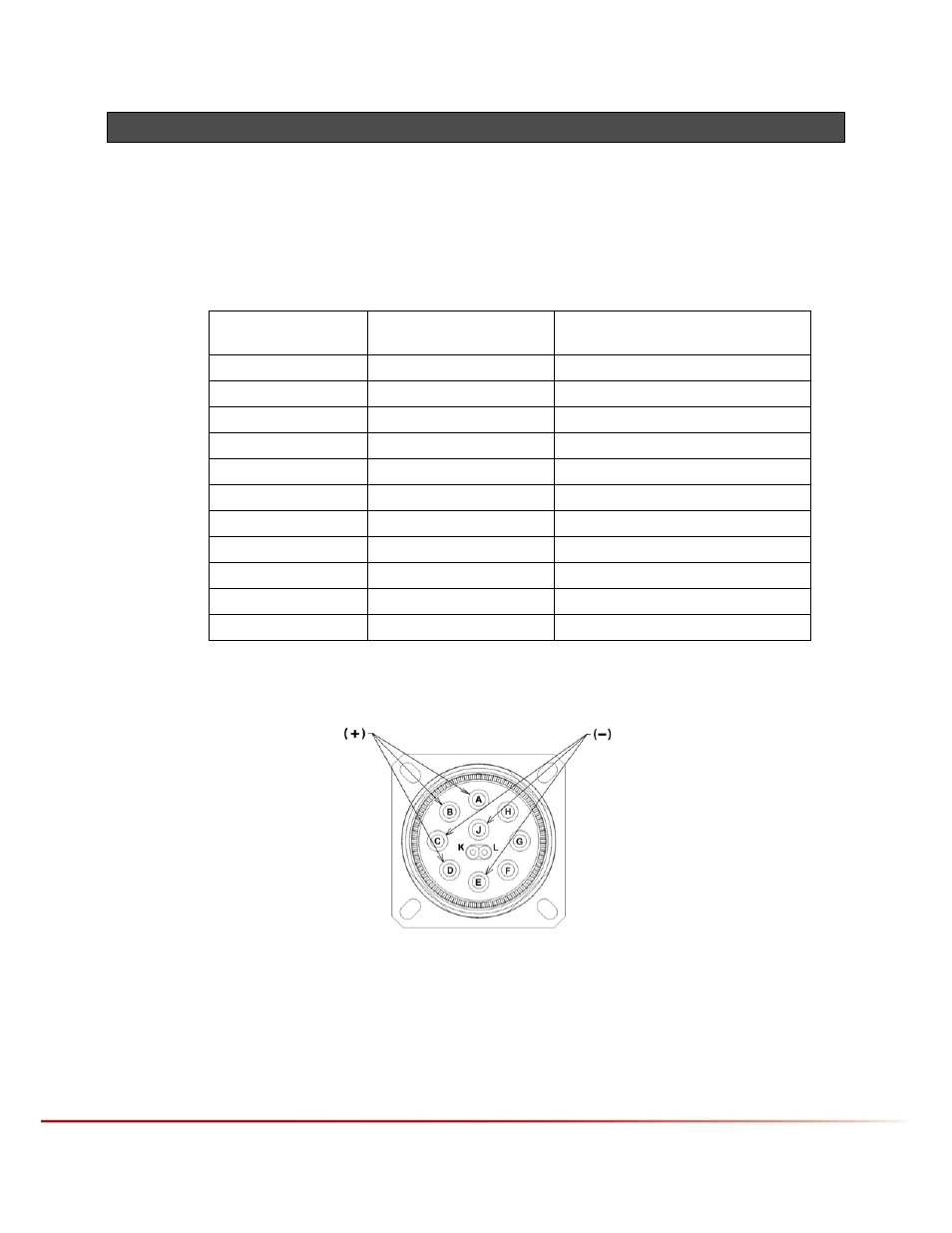

Figure 13: Input Power Connector
