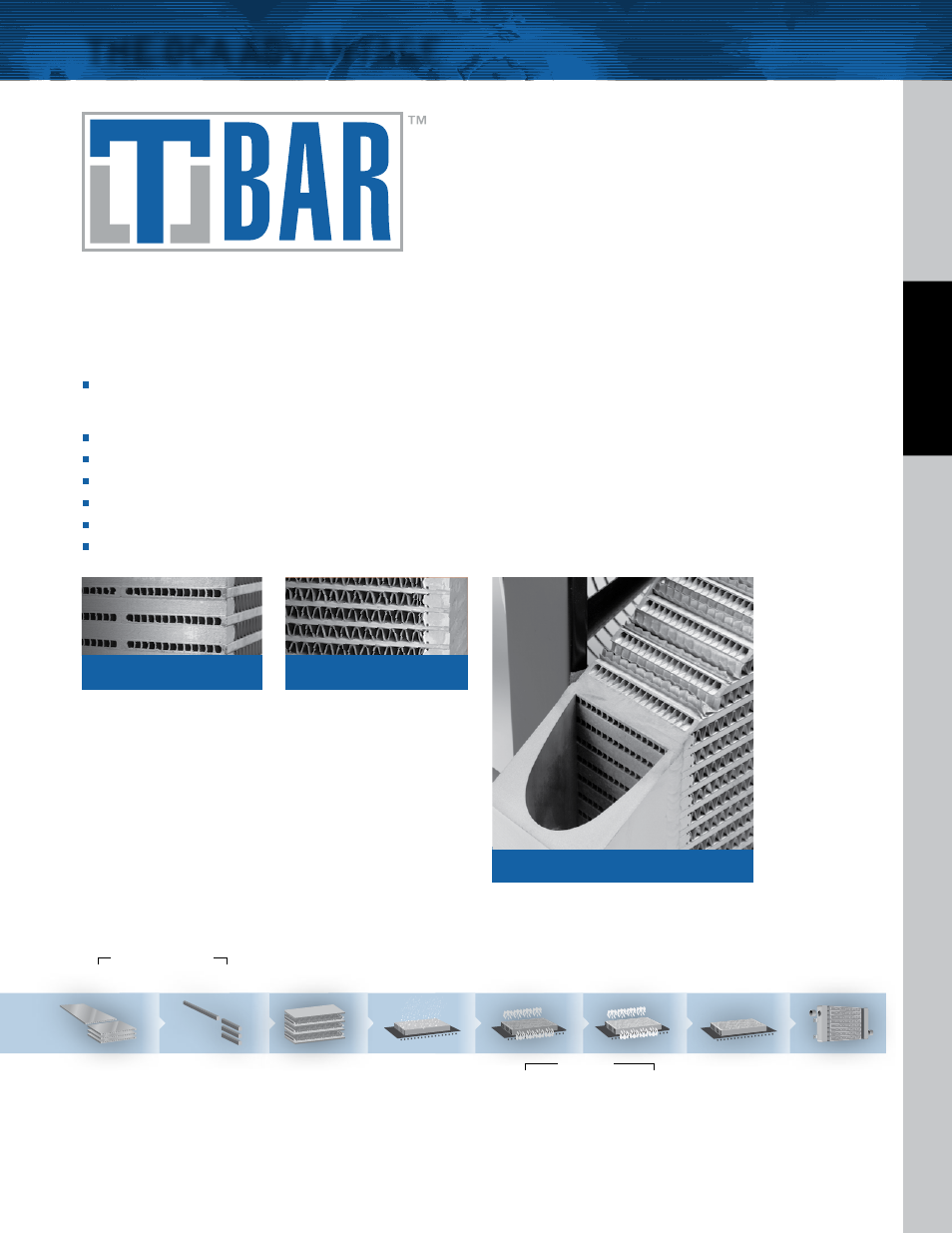

tHE OCA ADVANtAGE
Advantages
T-BAR provides advantages and value far beyond typical aluminum
core designs.
superior performance
Aluminum has up to 25 percent higher heat transfer capacity in
comparison to a traditional copper/brass cooling package.
rugged structure
resistant to Fouling
resistant to salt spray and salt air
Compact
Flexible mounting and port Configuration
great dollar Value per btu
LOw-CLOGGING HIGH-PERFORMANCE
t-BAR is a flexible design,
high performing, and a cost-
effective aluminum solution.
tubular micro Channel extrusion (t-bar™)
T-BAR is manufactured with Alloy 1100 aluminum micro channel and bars
in our patented in-house tube-to-bar brazing process using a Nocolok CAB
(Controlled Atmosphere Brazing) brazing technology furnace. Because our
tubes are a solid extrusion, T-BAR is very robust — with no tube seams
to fail and leak.
wELDING StAtION
8: Weld tank, ports &
BraCketry to Core
COOL-DOwN UNIt
7: Cool
FLUX StAtION
4:Flux Core unit
to prepare For Brazing
StACKING StAtION
3: staCk assemBle tuBe &
Bars to Form Core unit
CUttING StAtIONS
1: Cut extruded 2:Cut spaCer Bars
aluminum tuBing
FURNACE
5:pre-Heat 6: Braze
1200˚ F
t-Bar Manufacturing Process
t-BAR CORE IN OCA ASSEMBLy
• Core inside •
