Thermal Transfer Systems AOVH Series User Manual
Ao v h, Fluid cooling | industrial aovh series, How to order

AO
V
H
262.554.8330
www.thermaltransfer.com
12

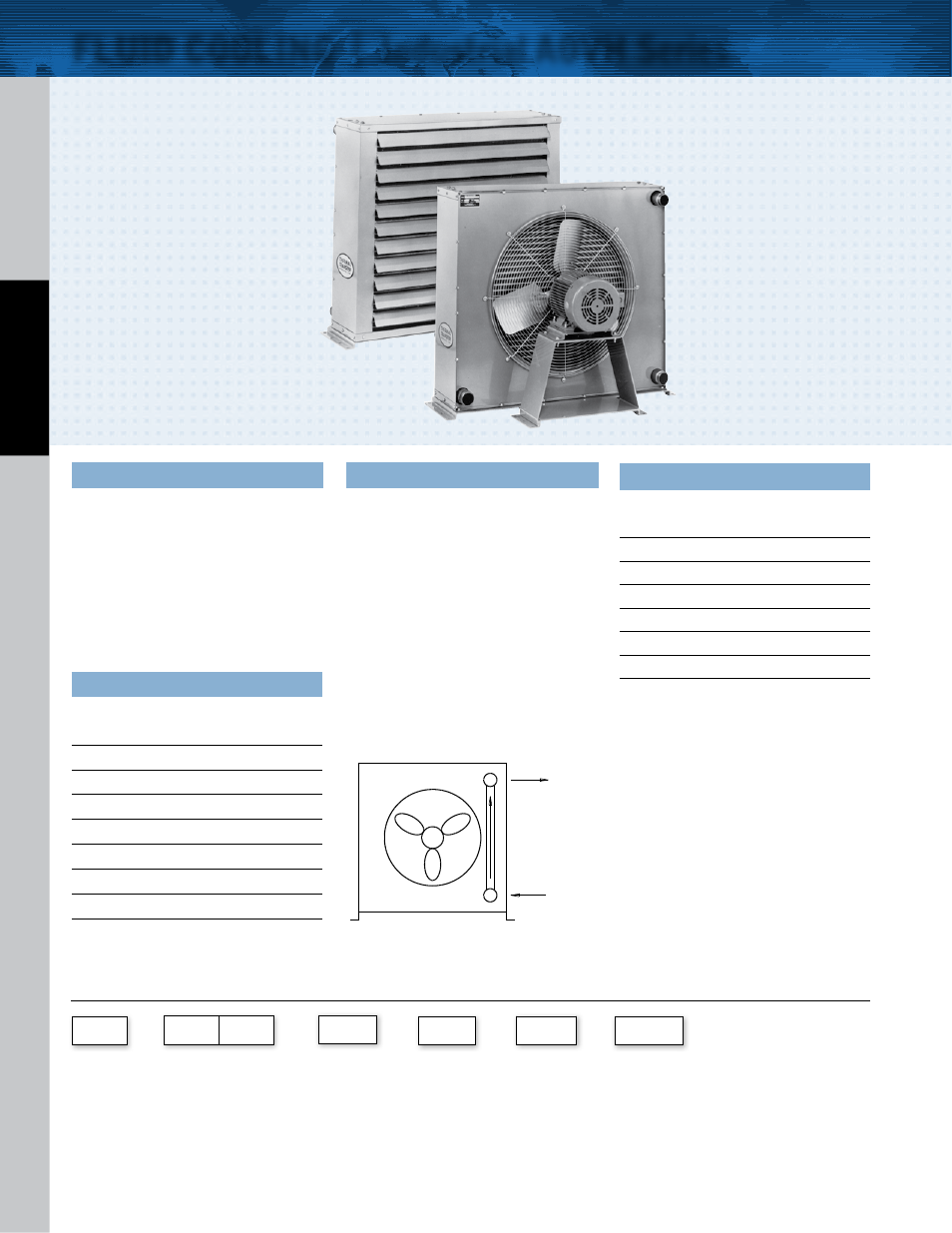

FLUID COOLING | Industrial AOVH Series
A
IR C
O
O
L
E
D
A
OV
H
Materials
Tubes Copper
Fins Aluminum
Turbulators Steel
Fan Blade Aluminum with steel hub
Fan Guard Zinc plated steel
Cabinet Steel with baked enamel finish
Manifolds Steel
Connections Steel
OPTIONS
Internal SAE Straight Threads
SAE & Metric Connections
Relief Bypass
Corrosive Resistant
Marine Coating
FEATURES
n
High Performance AO
n
High Flow Rates
n
Compact
n
One or Two Pass
n
Fluid Power Systems
n
Gear Drives
n
Injection Molding Machines
n
Machine Tools
n
Torque Converters
n
Hydraulic Presses
Ratings
Operating Pressure - 300 psi
Operating Temperature - 400° F
Weights
MODEL
Net Weight
(LBS)
AOVHR - 5
67
AOVHR - 10
78
AOVHR - 15
90
AOVHR - 20
110
AOVHR - 25
157
AOVHR - 30
190
AOVHR - 35
315
AOVHR - 40
350
Two Pass Only
(Low to Medium Oil Flows)
Model Number
Flow Range
GPM (USA)
AOVHR - 5-2
4 - 50
AOVHR - 10-2
4 - 60
AOVHR - 15-2
4 - 60
AOVHR - 20-2
4 - 80
AOVHR - 25-2
4 - 80
AOVHR - 30-2
4 - 80
AOVHR - 35-2
6 - 80
AOVHR - 40-2
8 - 80
AOVHR Series
How to Order
Model
Series
AOVH
AOVHR
-Includes
Bypass
Specify Motor
Required
Single Phase
Single Phase Expl. Proof
Three Phase
Three Phase 575 Volt
Three Phase Expl. Proof
–
Connection
Type
Blank
- NPT
S
- SAE
M
- Metric
Number of Passes*
Blank
- No Bypass
2
- Two Pass Only
Relief Bypass
Setting*
30
-30 psi
60
- 60 psi
–
–
–
*ADD FOR
AOVHR
MODELS ONLY: Relief Bypass Setting & Number of Passes
Model Size
Selected
Oil
IN
Oil
OUT
Oil
IN
Oil
OUT
–
