FLUID COOLING | Shell & Tube EC Series
W
A
T
E
R C
O
O
L
E
D
EC
COPPer & STeel COnSTrUCTiOn
Features
n
rugged Steel Shell Construction
n
3/8” Tube Size
n
larger Shell Diameter than eK,
8.50” Dia Max
n
High Flow Capacity & Performance
n
High efficiency Finned Bundle Design
n
Optional Patented Built-in
Surge-Cushion
®
Bypass
n
End bonnets removable for easy
tube cleaning
n
Mounting brackets included –
may be rotated for simple installation
n
NPT, SAE, BSPP, BSPT or flange
connections
n
Optional type 316 stainless steel
or 90/10 copper-nickel components
available
Materials
Shell Steel
Tubesheets Steel
Tubes Copper
Baff les Steel
Mounting Brackets Steel
Gaskets Nitrile Rubber/Cellulose Fiber
nameplate Aluminum Foil
Fins Aluminum
end Caps Grey Iron
Ratings
Operating Pressure 300 psi
Test Pressure 150 psi
Operating Temperature 300° F
How to Order
Model
Series
eC
eCS
eCM
eCF
eCFM
Model Size Selected
Tubeside
Passes
O
- One Pass
T
- 2 Pass
F
- 4 Pass
Surge
Cushion
Blank
- No Valve
r
- Value Included
–
–
–
–
Baff le
Spacing

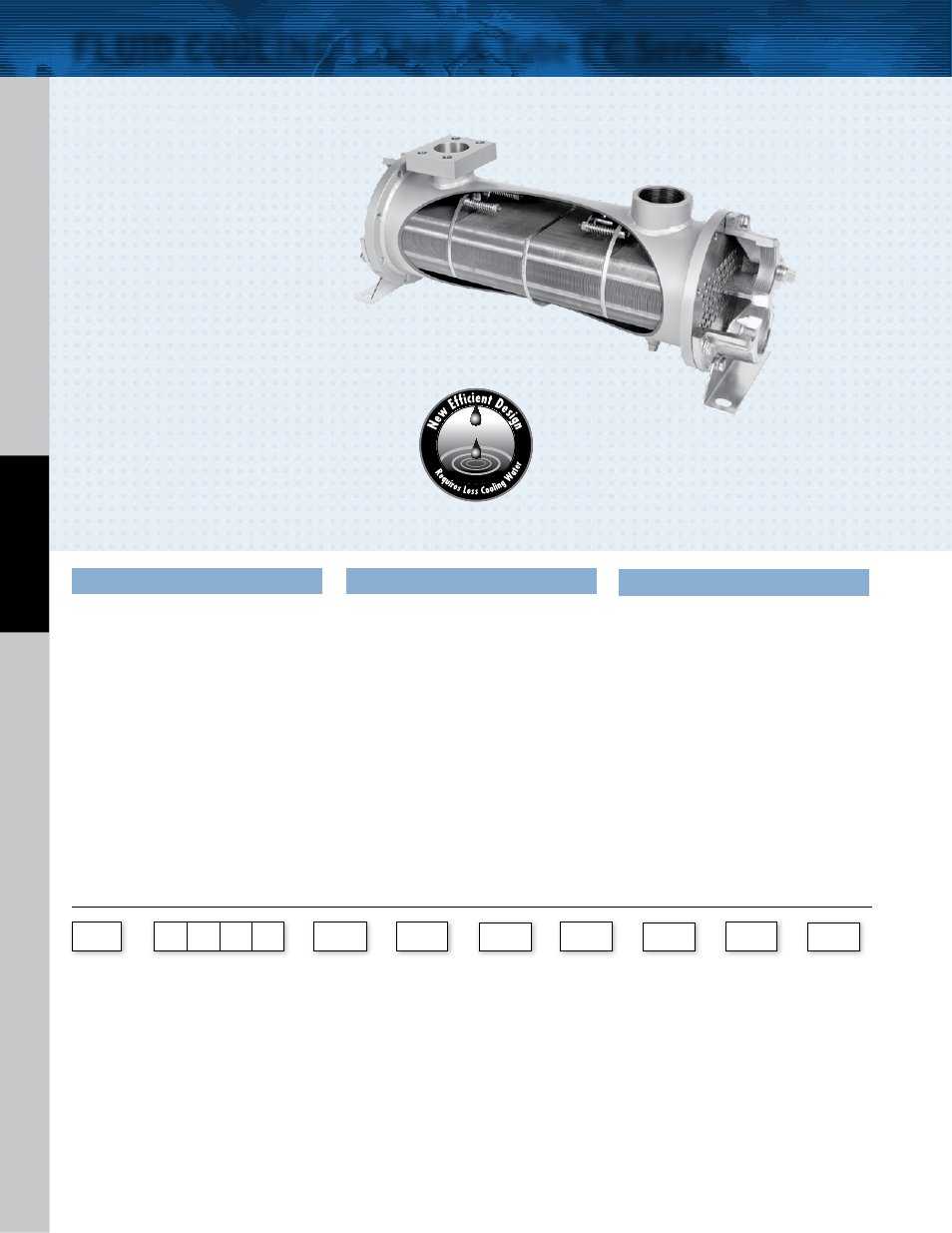

Cutaway view shows high performance copper
tube/aluminum fin cooling chamber with patented
SURGE-CUSHION
®
relief bypass valve, and optional
flange connections.
Surge-Cushion (Option)
The SURGE-CUSHION
®
is a protective device
(patented) designed to internally bypass
a portion of the oil flow during cold start
conditions, or when sudden flow surges
temporarily exceed the maximum flow allowed
for a given cooler. This device may replace an
external bypass valve, but it is not intended to
bypass the total oil flow.
Cooling Tube
Material
Blank
- Copper
Cn
- CuNi
SS
- 316
Stainless Steel
end Bonnet
Material
Blank
- Cast Iron
B
- Bronze
SB
- 316
Stainless Steel
–
–
Tubesheet
Material
Blank
- Steel
W
- CuNi
S
- 316
Stainless Steel
Zinc
Anodes
Blank
- None
Z
- Zinc Anodes
–
–
eC
= NPT Oil connections; NPT Water connections.
eCS
= SAE O-Ring Oil connections; NPT Water connections.
eCM
= BSPP Oil connections; BSPP Water connections.
eCF
= SAE 4 Bolt Flange (Tapped SAE) Oil connections; NPT Water connections.
eCFM
= SAE 4 Bolt Flange (Tapped Metric) Oil connections; BSPP Water connections.
