Thermal Transfer Systems AO Series - Manual

AO
[email protected] 262.554.8330 www.thermaltransfer.com
8

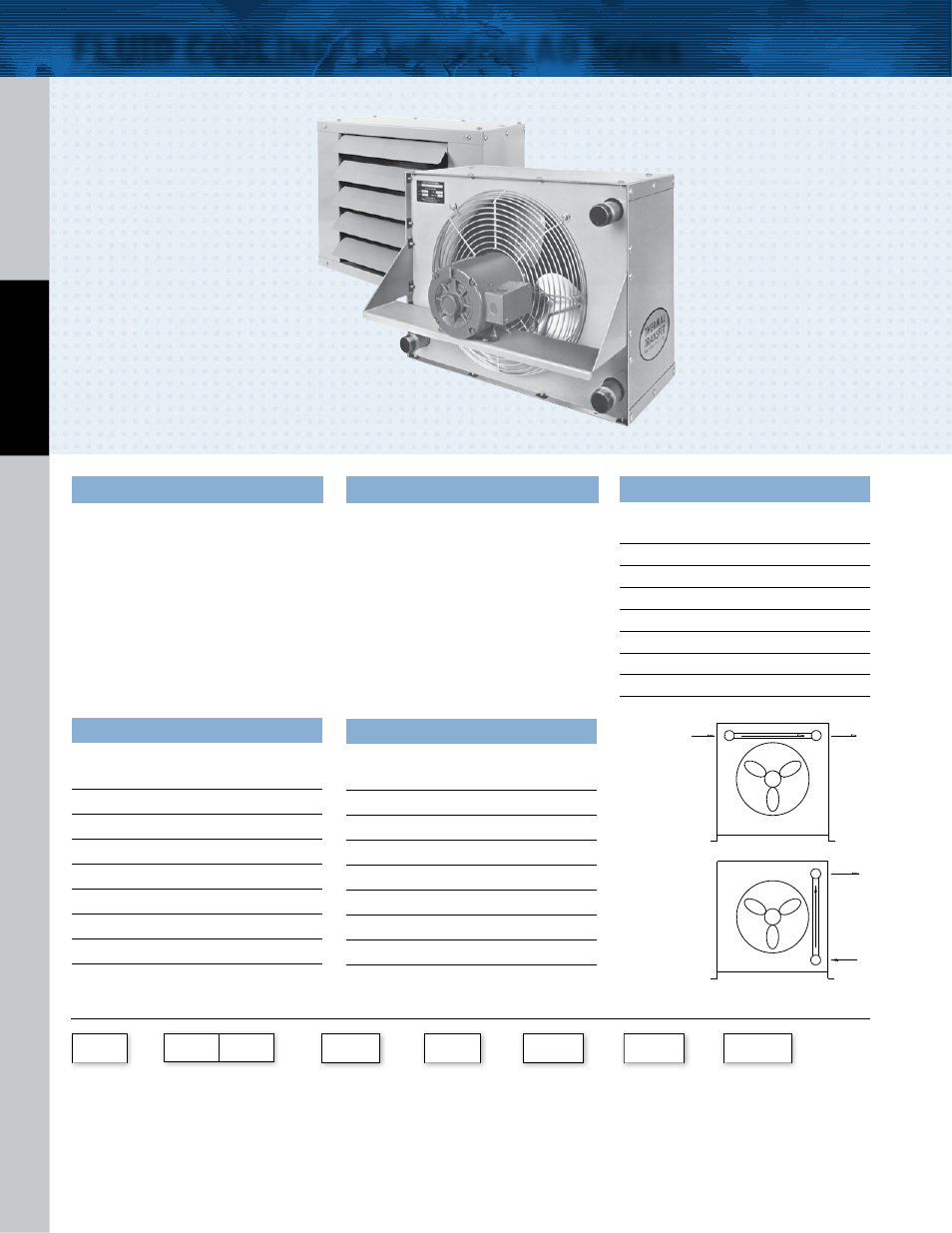

FLUID COOLING | Industrial AO Series
A
IR C
O
O
L
E
D
AO
/AO
R
Materials
Tubes Copper
Fins Aluminum
Turbulators Steel
Fan Blade Aluminum with steel hub
Fan Guard Zinc plated steel
Cabinet Steel with baked enamel finish
Manifolds Steel
Connections Steel
FEATURES
n
Young Interchange – OCH
n
Adjustable Louvers
n
Medium Flow Rates
n
Moderate Heat Removal
n
One or Two Pass
n
Fluid Power Systems
n
Gear Drives
n
Injection Molding Machines
n
Machine Tools
n
Torque Converters
n
Hydraulic Presses
Ratings
Operating Pressure - 300 psi
Test Pressure - 300 psi
Operating Temperature - 400° F
OPTIONS
SAE & Metric Connections
Relief Bypass
Foot Brackets
Corrosive Resistant
Marine Coating
One Pass
(Medium to High Oil Flows)
Model Number Flow Range GPM (USA)
AOR - 5-1 2 - 80
AOR - 10-1 3 - 80
AOR - 15-1 4 - 80
AOR - 20-1 5 - 80
AOR - 25-1 6 - 100
AOR - 30-1 7 - 100
AOR - 35-1 8 - 112
AOR - 40-1 9 - 118
Two Pass
(Low to Medium Oil Flows)
Model Number Flow Range GPM (USA)
AOR - 5-2 2 - 25
AOR - 10-2 2 - 30
AOR - 15-2 2 - 30
AOR - 20-2 2 - 40
AOR - 25-2 2 - 40
AOR - 30-2 2 - 40
AOR - 35-2 3 - 40
AOR - 40-2 4 - 40
One Pass
Two Pass
Oil
IN
Oil
OUT
Oil
IN
Oil
OUT
How to Order
Model
Series
AO
AOR -Includes
Bypass
Foot Mounted
Brackets
Blank - No
Brackets
FB - Foot Brackets
Specify Motor
Required
Single Phase
Single Phase Expl. Proof
Three Phase
Three Phase 575 Volt
Three Phase Expl. Proof
–
Connection
Type
Blank - NPT
S - SAE
M - Metric
Number of Passes*
Blank - No Bypass
1 - One Pass
2 - Two Pass
Relief Bypass
Setting*
30 -30 psi
60 - 60 psi
– – – –
*ADD FOR AOR MODELS ONLY: Relief Bypass Setting & Number of Passes
Model Size
Selected
Oil
IN
Oil
OUT
Oil
IN
Oil
OUT
Weights
MODEL Net Weight
(LBS)
AO-5 47
AO-10 62
AO-15 72
AO-20 86
AO-25 120
AO-30 135
AO-35 160
AO-40 185
–
