BOL Models with Low-Noise Option

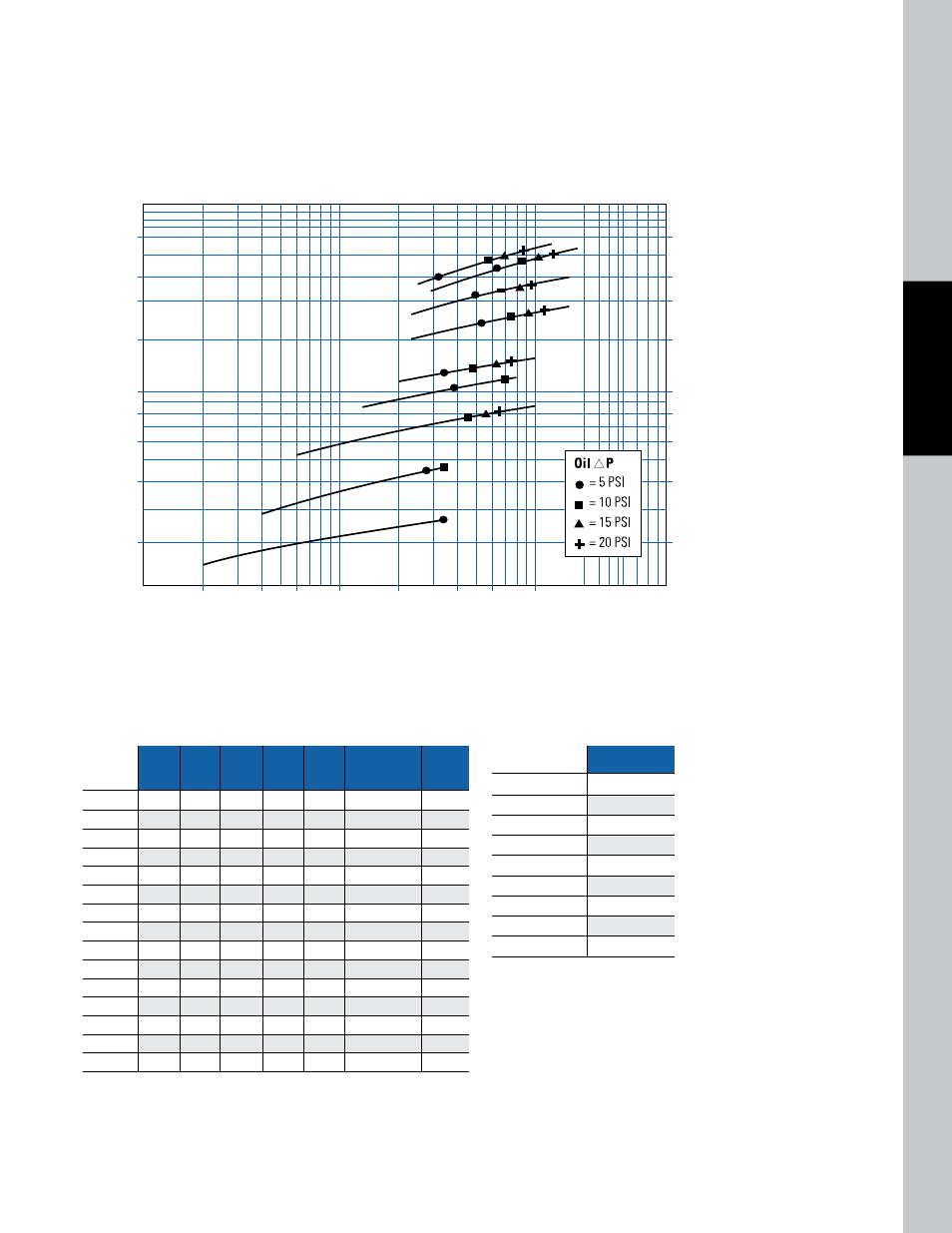

performance data Curve
BOL-1600-LN
BOL-1200-LN
BOL-950-LN
BOL-725-LN
BOL-30-LN
BOL-400-LN
BOL-16-LN
BOL-8-LN
BOL-2000-LN
H
ea
t R
ej
ec
tio
n
B
TU
/H
R
@
1
00
F
ET
D
10,000
20,000
40,000
60,000
80,000
100,000
200,000
300,000
400,000
600,000
1,000,000
0.05
0.1
0.2
0.3
0.4
0.5
1.1
1.6
2.1
3.2
5.3
H
ea
t R
ej
ec
tio
n
KW
/°
C
Oil Flow GPM (LPM)
1
(3.79)
2
(7.57)
20
(75.71)
40
(151.42)
60
(227.12)
100
(378.54)
4
(15.14)
6
(22.71)
10
(37.85)
1000
(3785.40)
The low noise option offers the BOL models with a reduced motor speed.
This allows a lower sound level output for noise-sensitive applications.
Available on 60 Hz Nema frame only.
dba
model
at 3 ft
BOL-8-LN
67
BOL-16-LN
71
BOL-30-LN
80
BOL-400-LN
71
BOL-725-LN
75
BOL-950-LN
80
BOL-1200-LN
84
BOL-1600-LN
84
BOL-2000-LN
90
sound data
electric motor information
low
low
low
noise noise noise
Frequency
model
Hp
Frame rpm
CFm Cmm
Voltage
(Hz)
8-1PH
0.33
48
1725
400
11.33
115/230
60
8-3PH
0.33
48
1725
400
11.33
208-230/460
60
16-1PH
0.50
48
1725
704
19.93
115/230
60
16-3PH
0.50
48
1725
704
19.93
208-230/460
60
30-1PH
0.50
56C
1160
1470
41.62
115/230
60
30-3PH
0.50
56C
1160
1470
41.62
208-230/460
60
400-1PH
1.00
56C
1725
1100
31.19
115/230
60
400-3PH
1.00
56C
1725
1100
31.19
208-230/460
60
725-1PH
1.50
56C
1725
1780
50.40
115/230
60
725-3PH
1.50
56C
1725
1780
50.40
208-230/460
60
950-1PH
1.50
145TC
1160
3150
89.19
115/230
60
950-3PH
1.50
145TC
1160
3150
89.19
208-230/460
60
1200-3PH
3.00
182TC
1160
4690 132.81
208-230/460
60
1600-3PH
5.00
184TC
1160
6510 184.34
208-230/460
60
2000-3PH
5.00
213TC
1160
8700 000.00
230/460
60
