Working principle
Channels are formed between the plates and the corner
ports are arranged so that the two media flow through alter-
nate channels. The heat is transferred through the plate
between the channels, and complete counter-current flow is
created for highest possible efficiency. The corrugation of the
plates provides the passage between the plates, supports
each plate against the adjacent one and enhances the turbu-
lence, resulting in efficient heat transfer.
STANDARD MATERIALS
Frame plate
Mild steel, Epoxy painted
Nozzles
Carbon steel
Metal lined: Stainless steel, Titanium
Plates
Stainless steel AISI 316 or Titanium
Gaskets
Field gaskets
Nitrile, EPDM
Ring gaskets Chloroprene, EPDM
Connections
FG PED
Size 300/350 mm DIN 2501 PN16
FG ASME Size 12”/14” ANSI 150
FD PED Size 300/350 mm DIN 2501 PN25
FD ASME Size 12”/14” ANSI 300
FS PED Size 300/350 mm DIN 2501 PN25/PN40
FS ASME Size 12”/14" ANSI 400
TECHNICAL DATA
Mechanical design pressure (g) / temperature
FG PED
1.6 MPa / 180 °C
FG ASME 150 psig / 350 °F
FD PED 2.5 MPa / 180 °C
FD ASME 300 psig / 350 °F
FS PED 3.0 MPa / 160 °C
FS ASME 400 psig / 320 °F
Maximum heat transfer surface
1131 m
2 (12.107 sq. ft)
Particulars required for quotation
– Flow rates or heat load
– Temperature program
– Physical properties of liquids in question (if not water)
– Desired working pressure
– Maximum permitted pressure drop
– Available steam pressure
Dimensions
Measurements (mm)
Type
H W h
MA30-WFG 2940 1170 521
MA30-WFD 2940 1170 521
MA30-WFS 2940 1170 521
Alfa Laval reserves the right to change specifications without prior notification.
561
W
1585-5820
1811
H
h

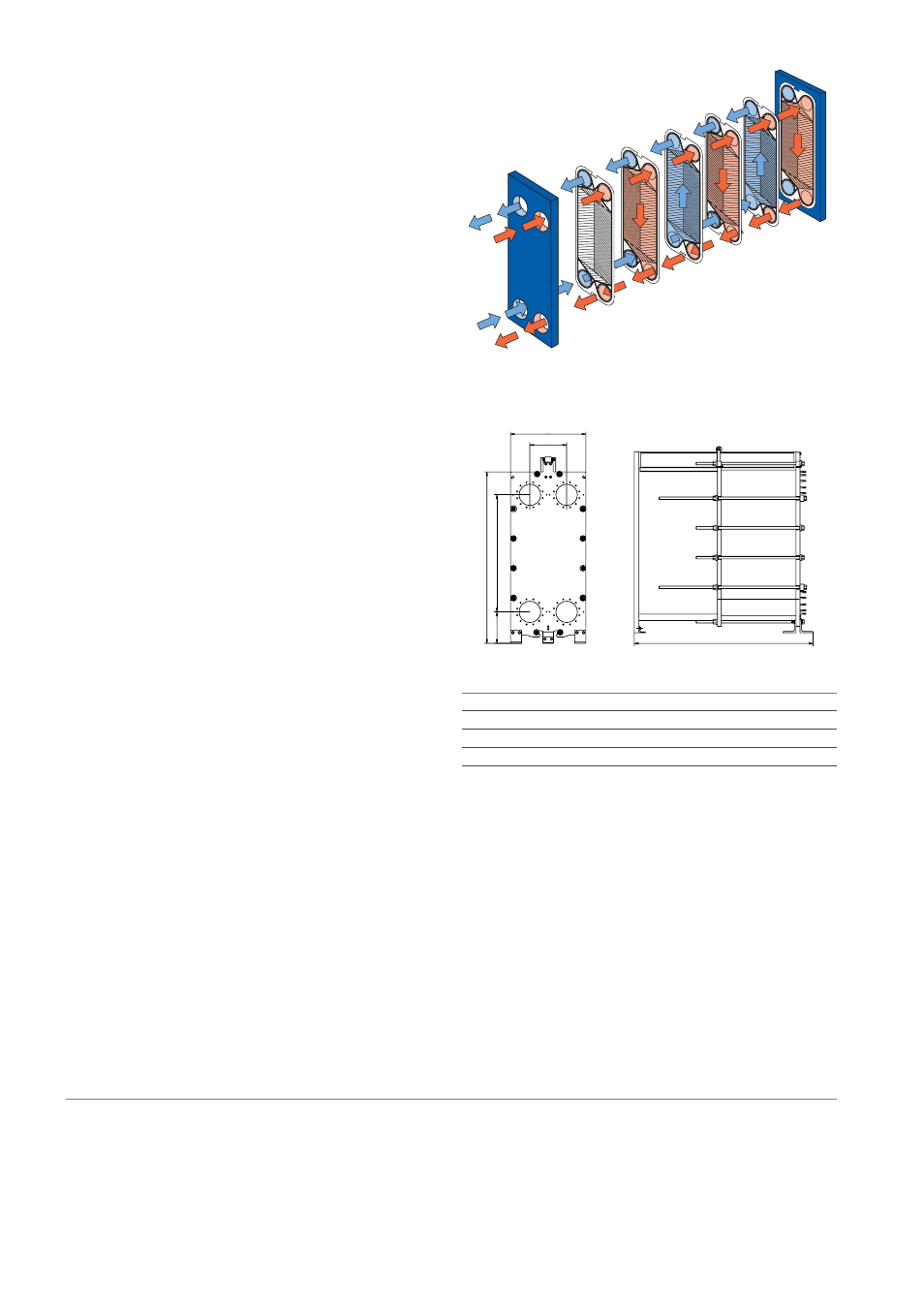

Flow principle of a plate heat exchanger
