PoE Powered Outdoor Enclosure System
For Cisco 2602e/3502e/3602e Series Access Points
800.851.4965
◊
Innovative heating and cooling system driven from PoE
power integrated into enclosure from the factory
◊
Integrated with one 4 pack (Cisco 2602e/3602e) or 6
pack (Cisco 3502e) antenna including all internal patch
cables
◊
RF surge arrestors are designed into the system with
ground bars and ground wires protecting the AP
◊
Plug-and-play system fully integrated from the factory
◊
Heating and cooling system engineered to allow safe
operability in outdoor environments
◊
Single antenna design for MIMO applications eliminates
multiple antenna installation costs and time
◊
Protect the Cisco 2602E/3502E/3602E access point from
the outdoor environment
◊
Minimal installation time. Powered by PoE—no need to
run 120 VAC

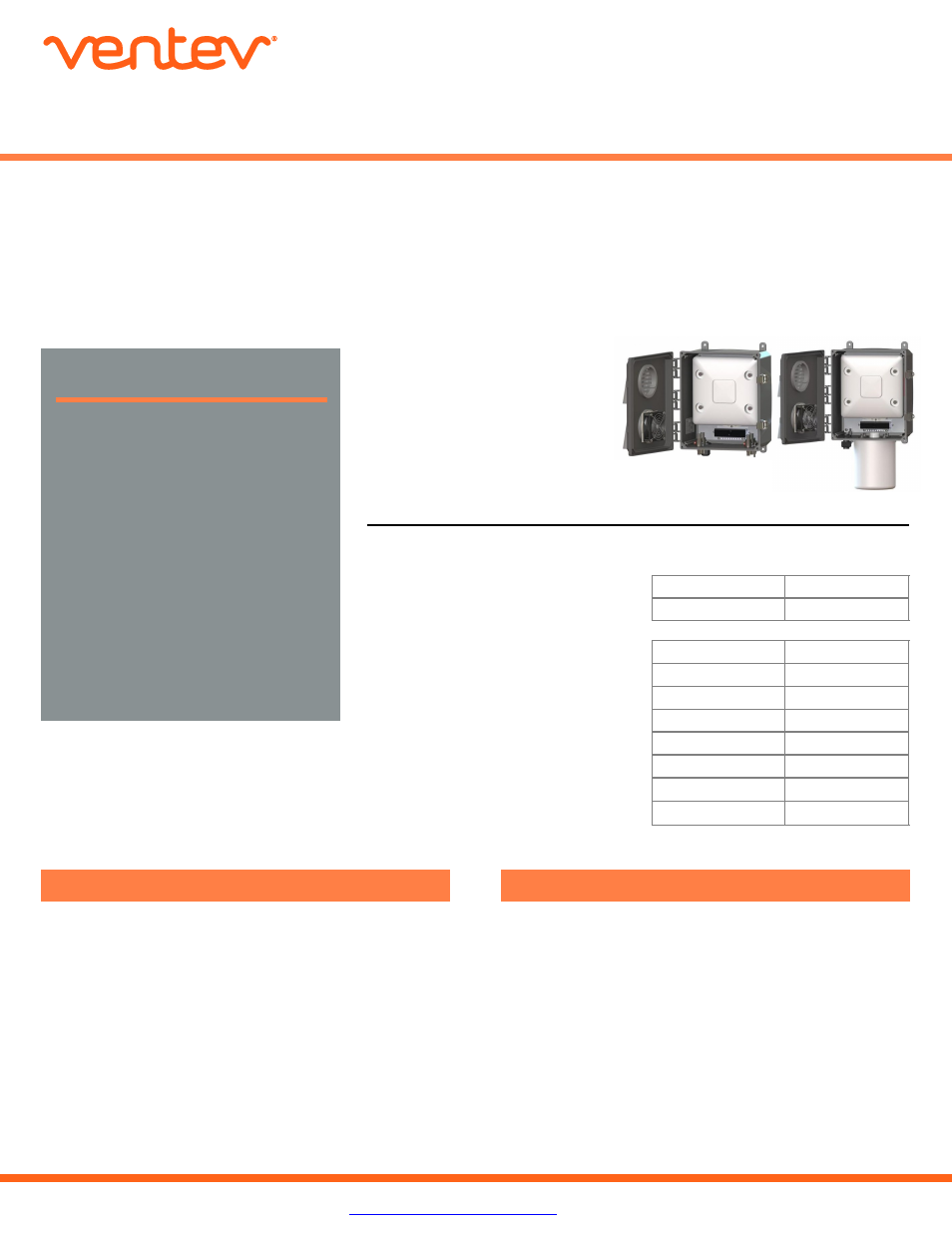

PoE Powered Outdoor Enclosure Systems
System without
Integrated Omni
Antenna*
System with
Integrated Omni
Antenna
Cisco 3502e
VA01-AP07-AF
VA01-AP19-AF
Cisco 2602e/3602e
VA01-AP01-AF
VA01-AP13-AF
System Includes
Grey Polycarbonate Enclosure w/ Latch Locks
Predrilled Aluminum Back Plate
RF Jumpers
RF Surge Protectors
PoE Power Surge Arrestor w/ Ethernet Cable
Ground System w/ Ground Stud, Bar & Wires
Heating & Cooling Elements
Integrated Omni Antenna
The Ventev PoE Powered Outdoor Enclosure System is a plug-and-play solution engineered to enable the use of Cisco
indoor AP’s in outdoor applications. Housed in a 12”x10”x6” NEMA 4X enclosure, this compact system includes a
controlled heating and cooling system that keeps ambient temperature of the enclosure within manufacturer specified
operating temperatures. This system can include an integrated Omni antenna or an external patch antenna can be
mounted separately to increase network coverage and improve the performance of your radio. The Outdoor Enclosure
System splits the power from the common PoE Cat 5/6 cable, driving power to both the AP and heating system. With
built in PoE surge protection and a ground stud, this enclosure system is a reliable, long-term solution for campuses,
parking lots or city center applications.
◊
Industry’s first and only fully
integrated AP enclosure
solution with
PoE-only input
◊
True plug-and-play system with
heating and cooling capability for
outdoor installations using PoE
power only
◊
Robust aluminum back plate that
allows for seamless integration with
Cisco’s 3502e and 2602e/3602e
access points
System Highlights
*Wires and cable not shown for clarity.
**AP sold separately.
