2.3-2.5 / 2.5-2.7 GHz 18 dBi 65° Cross-Polarized
Panel Antenna
TerraWave Solutions
®
2.3-2.5/2.5-2.7 GHz 18 dBi 65-Degree Cross Polarized
Panel Antenna with N-Style Jack Connectors
www.terrawave.com Email: [email protected] Phone: 210-375-8482 or 800-851-4965 10521 Gulfdale, San Antonio, TX 78216

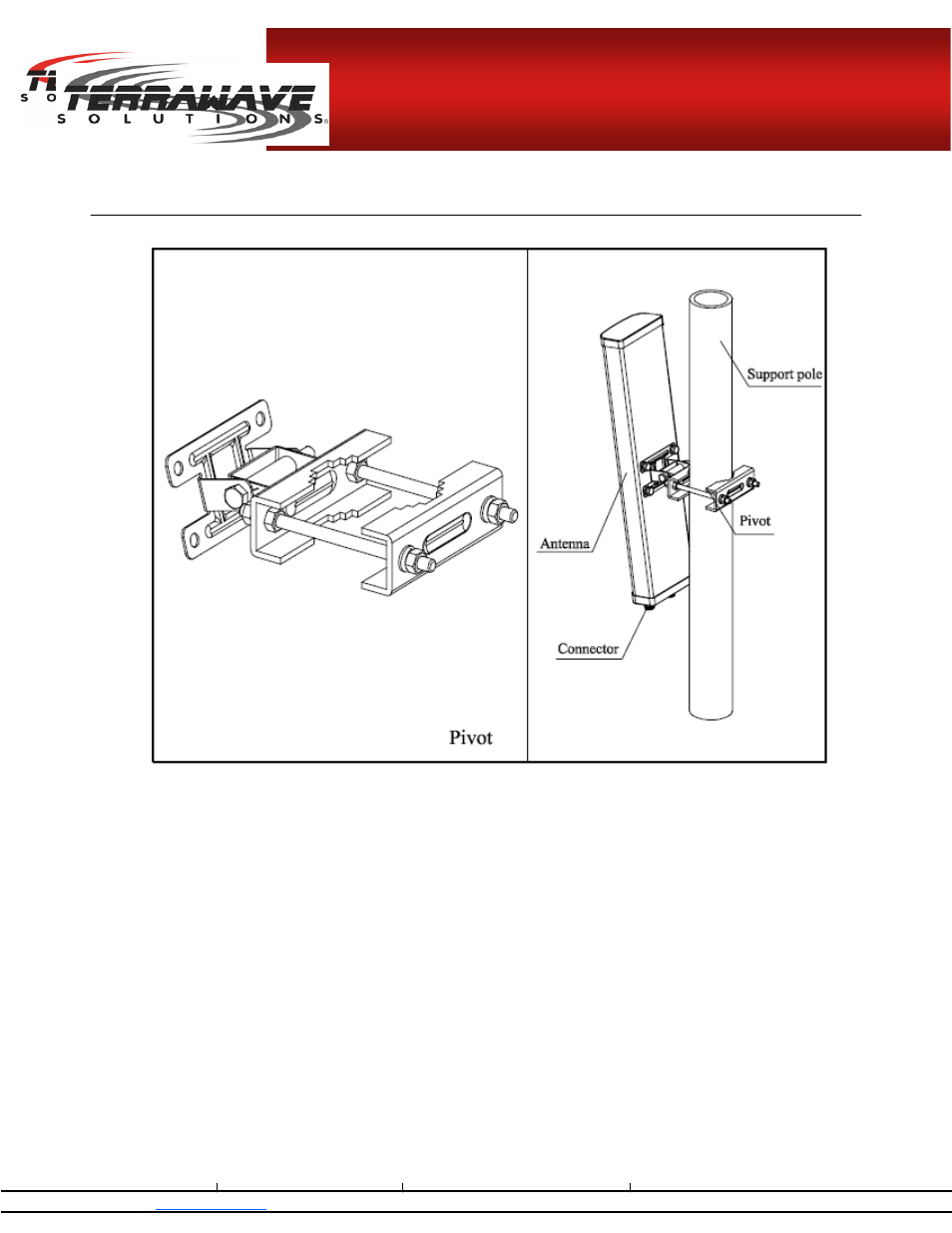

1) Fix the mount and antenna onto the support pole (1.38”- 2.95”) then adjust the
horizontal angle and mechanical downtilt angle of the antenna to a suitable direction.
Then screw on all mount nuts.
2) Open the plug cover at the bottom of the antenna and fix the cable attachment and
tighten. It is recommended to wrap the cable connector with waterproof tape.
