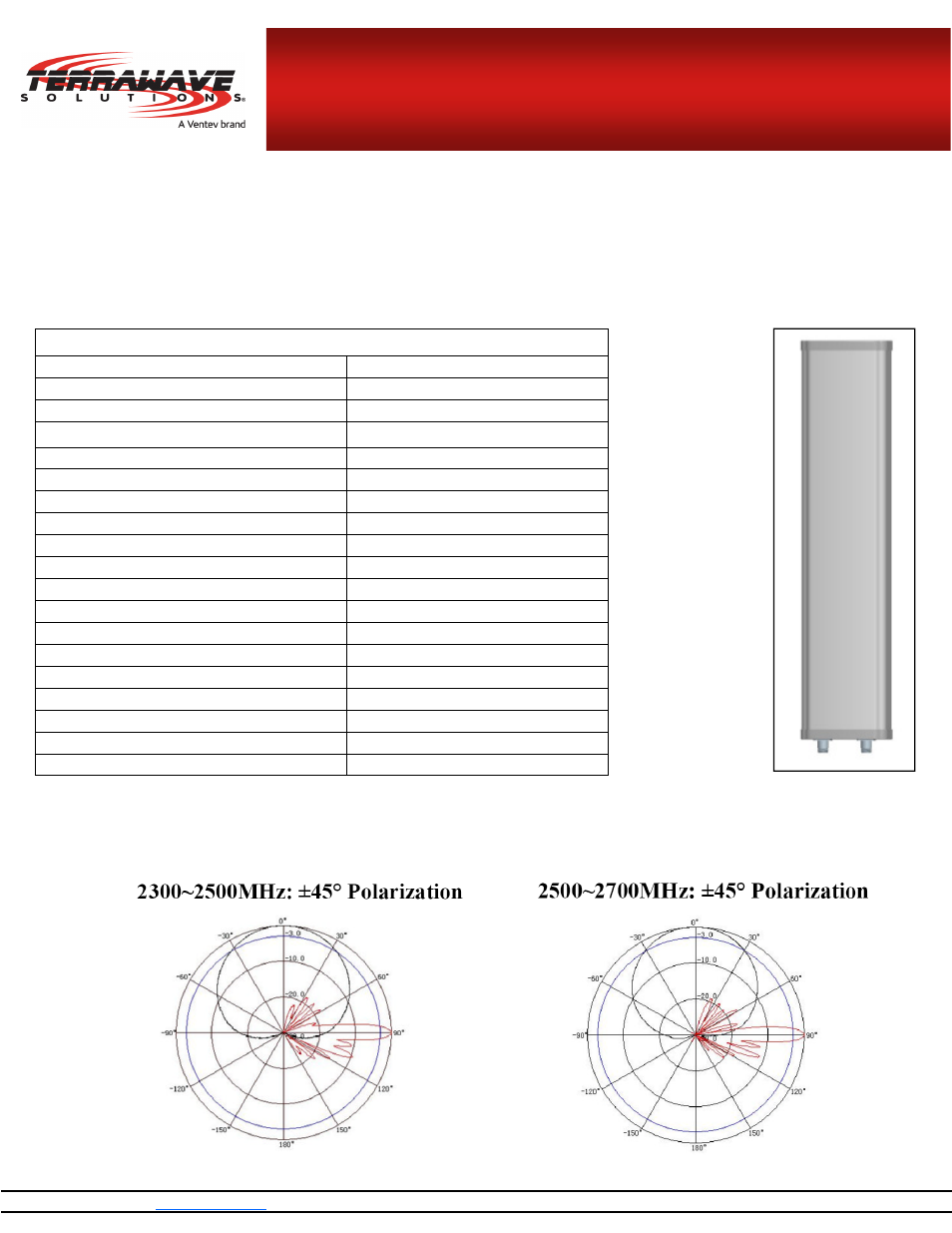

TerraWave T23180P10006-65X - Manual

www.terra-wave.com [email protected] 1-800-851-4965
2.3-2.5 / 2.5-2.7 GHz 18 dBi 65° Cross-Polarized
Panel Antenna
TerraWave’s 18 dBi cross polarized sector panel antenna is designed for applications operating in the 2.3-2.7 GHz fre-
quency range. This antenna offers outstanding performance in a rugged design. It features a high gain and is cross po-
larized to double the wireless capacity over the same channel. Every TerraWave antenna is covered by the Company's
two-year TerraNet warranty program.
For questions and to purchase product, contact a Regional Sales Executive at 210-
375-8482, 800-851-4965 or [email protected].
Specifications
Model T23180P10006-65X
Frequency Range 2300~2500 / 2500~2700 MHz
Bandwidth 400 MHz
Gain 17.5 / 18 dBi
Horizontal Beamwidth 65°/63°
Vertical Beamwidth 6.5°/6°
Front-to-Back Ratio ≥ 25 dB
Isolation ≥ 30 dB
VSWR ≤ 1.5
Nominal Impedance 50 Ohms
Maximum Power Rating 200 Watts
Polarization ± 45°
Connector N-Style Jack (x2)
Dimensions 45.7” x 5.0” x 2.2”
Weight 7.93 lbs
Wind Load 134 mph
Mast Mount Diameter 2.95”
Operating Temperature Range -40°F to 140°F
Cross-polar discrimination ≥15(± 60° ≥10) dB
