Page 18
18
Regency Plateau™ PTO30 Outdoor Gas Fireplace
INSTALLATION

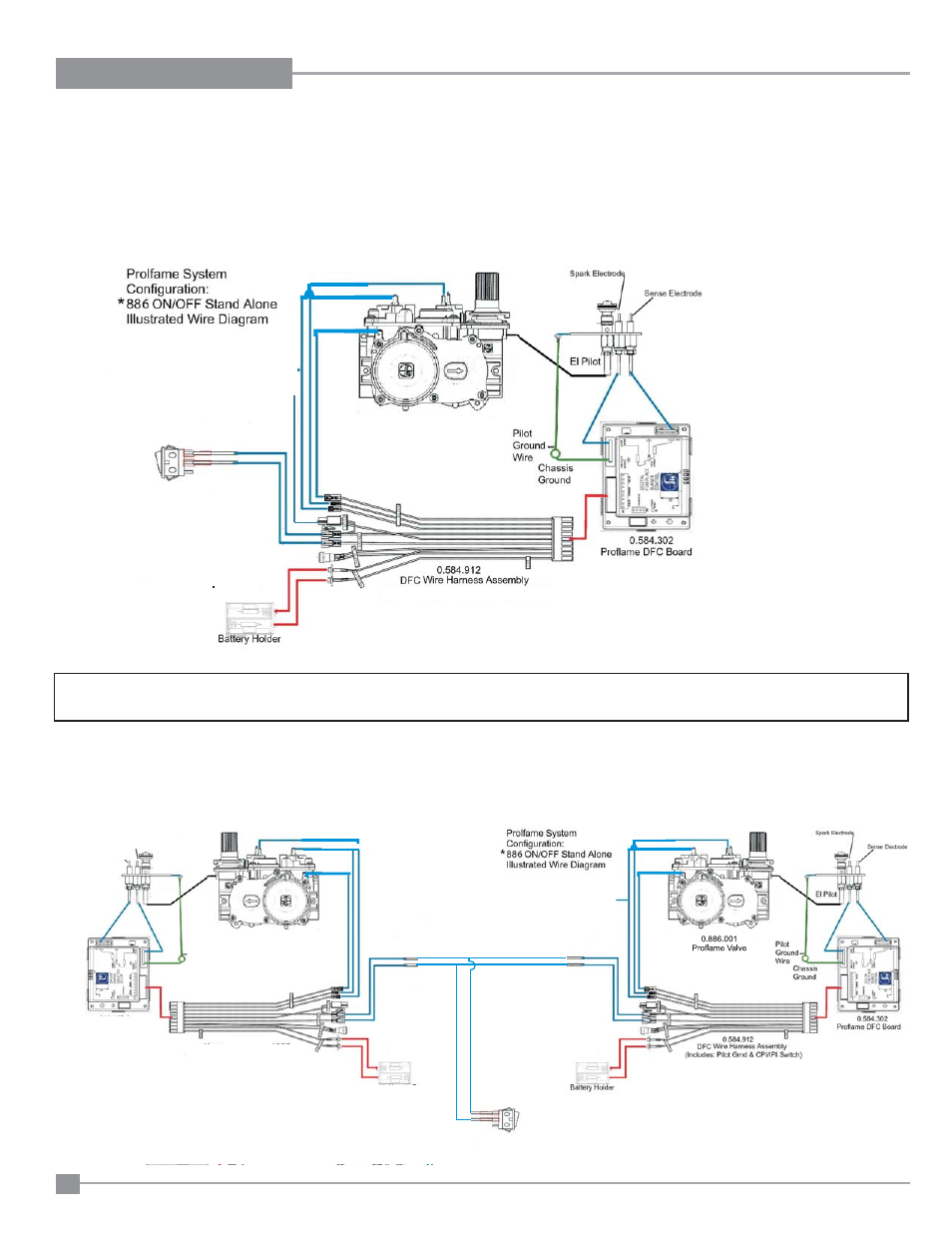

PTO30 WIRING DIAGRAM
This appliance does not require a 120V A.C. supply for operation.
NOTE: 4 AA batteries must be installed in the battery pack to operate the burner switch. Do not use a 9 volt battery.
The appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with theNational Electrical
Code, ANSI/NFPA 70, if applicable.
0.886.001
Proflame Valve
Standard Main On/Off Switch
or Optional Wall Switch
ON/OFF Switch
PTO60 WIRING DIAGRAM
(PTO60 = 2 X PTO30 ASSEMBLED END-TO-END)
Battery Holder
