2 ft

(61 cm)

Rain Cap (ensure

cap is at least 3ft

(91cm) above the

roof at the lowest

Roof Flashing

Roof Rafter

Fire Stop with

Support Collar

Ceiling Joist

Vertical Vent Pipe

Clean Out Tee

with Pipe Adapter

NOTE: All vent sections must

maintain the clearances to

combustibles set out by the

vent manufacturer.

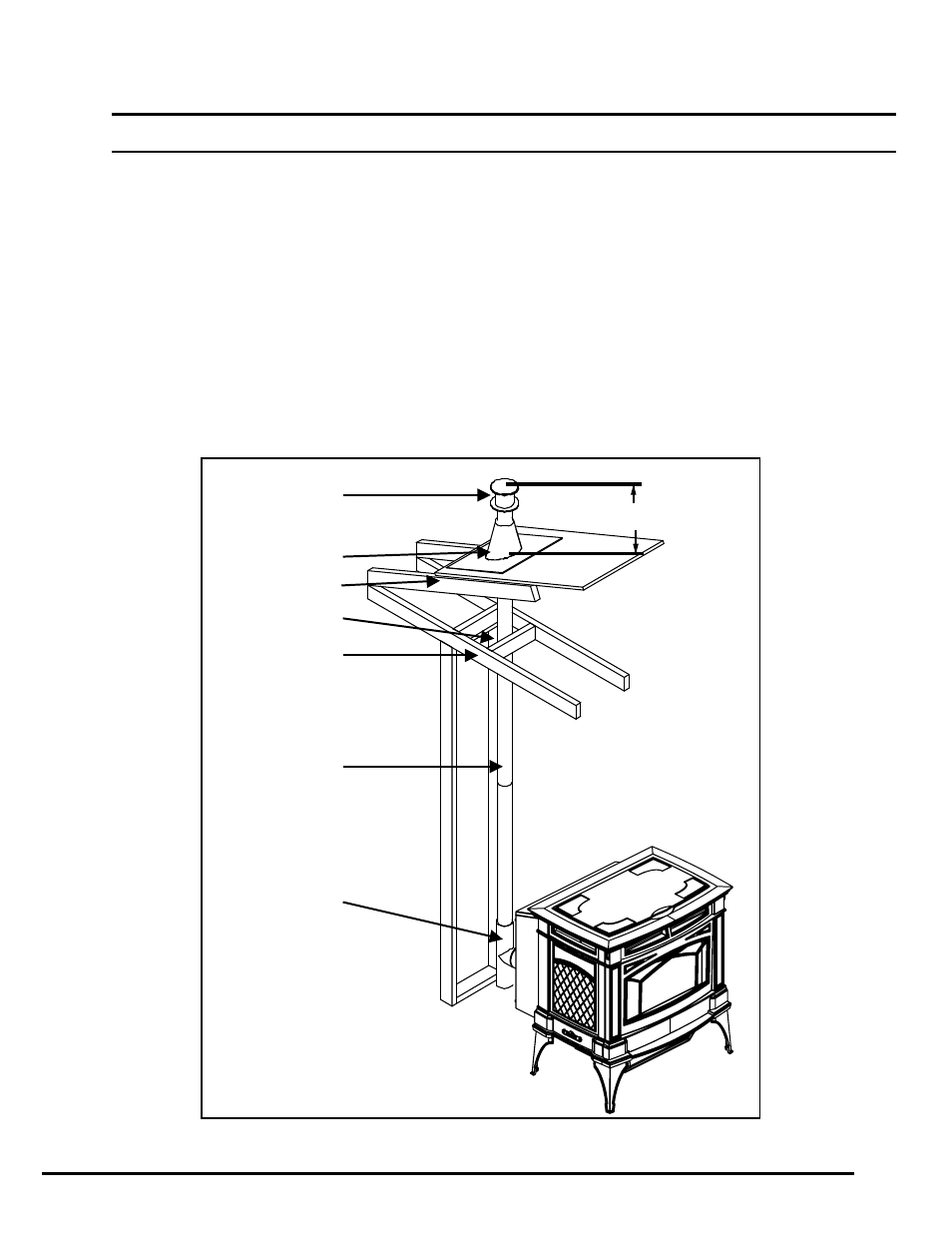

figure 16: inside Vertical installation.

Installation

i

nSide

v

ertical

i

nStallationS

:

1. Place the unit on the hearth pad if a hearth pad is to be used (or on solid material if installed on a

carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will

meet the minimum clearance from a combustible wall stated by the vent manufacturer.

2. Install the tee with clean out.
3.

I

nstall the pellet vent upward from tee. When you reach the ceiling, make sure that the vent goes

through a ceiling fire stop. Keep attic insulation away from the vent pipe & maintain an effective vapor

barrier. All joints in the exhaust venting system must be fastened with at least three (3) screws. Refer

to vent manufacturer for distance to combustibles & follow the vent manufacturer’s instructions on

sealing.

4. Finally, extend the pellet vent to go through the roof flashing.
5. Ensure that the rain cap is a minimum of 24” (61 cm) above the roof.
6. Install the fresh air system.

Hampton GC60 Cast Pellet Stove Technical Manual

17
