Installation – Regency Hampton GC60 Large Pellet Stove TECHNICAL MANUAL User Manual
Page 16
(610mm)
MIN 24"
4' (1220mm) MAX
All around
3"MIN Clearance
(75mm)
3"(76mm) MIN.
Rain Cap
Storm Collar
Flashing
Clean Out Tee
Wall Thimble
Wall Strap
Horizontal
Frame for
Thimble

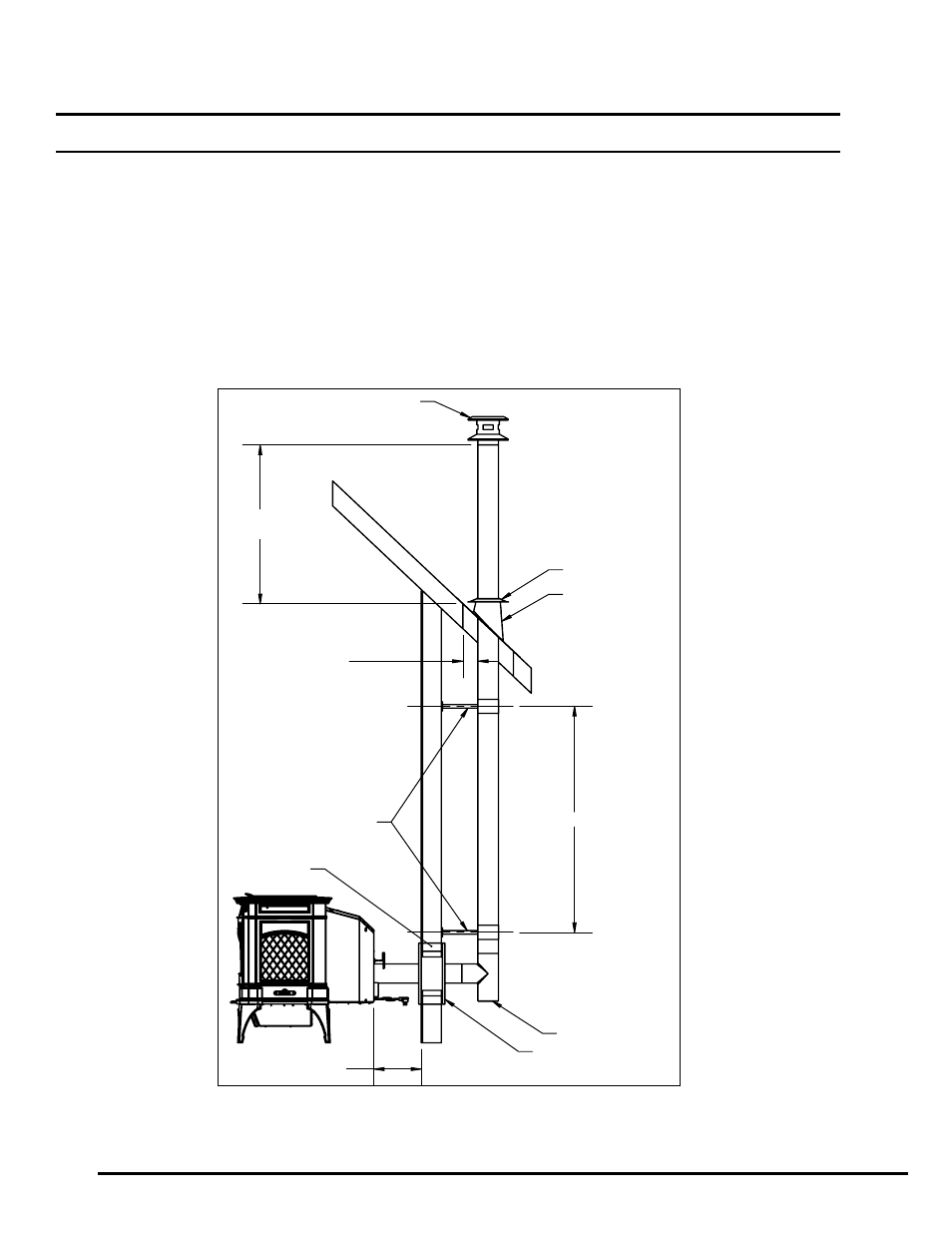

figure 15: outside Vertical installation.
Installation
o
utSide
v
ertical
i
nStallationS
:
To accomplish an outside vertical pipe installation, follow the “h
OrizOntAl
e
xhAust
t
hrOugh
W
All
i
nstAllAtiOns
”
section and then finish it by performing the following (refer to Figure 15).
1. Install a tee with clean out on the outside of the house.
2. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent
straight and secure. All joints in the exhaust venting system must be fastened with at least three (3)
screws.
3. Install ceiling thimble and secure the flashing as you go through the roof.
4. Ensure that the rain cap is a minimum of 24” (61 cm) above the roof.
Hampton GC60 Cast Pellet Stove Technical Manual
16
