GC60

4"(100mm) Exhaust

4"(100mm) Pellet Vent Pipe

4"(100mm) Pellet Vent Wall Thimble

45 Elbow with

Screen or

Termination Cap

REFER TO VENT MANUFACTURER'S INSTRUCTIONS

FOR CLEARANCES AND SEALING REQUIREMENTS.

3"(80mm) Intake

Installation

h

orizontal

e

xhauSt

t

hrough

W

all

i

nStallation

:

Vent installation: install vent at clearances specified by the vent manufacturer.
A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces,

or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired,

the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and

Equipment and with all local regulations, including those referring to regional and national. Only use

venting of L or PL type or corn certified venting if corn will be burned as a fuel with an inside diameter of 4

inches (100 mm). All joints in the exhaust venting system must be fastened with at least three (3) screws.
1. Place the appliance 15” (37.5 cm) away from the wall. If the stove will be installed on a hearth pad,

set the unit on it.

2. Locate the center of the exhaust pipe on the stove. Extend that line to the wall. Once you have located

the center point on the wall, refer to pellet vent manufacturer installation instructions for correct hole

size and clearance to combustibles.

3. Install the wall thimble as per the instructions written on the thimble. Maintain an effective vapour

barrier in accordance with local building codes.

4. Install a length of vent pipe into the wall thimble. Try not to have joints inside the thimble. The pipe

should install easily into the thimble.

5. Connect the exhaust vent pipe to the exhaust pipe on the stove. Seal the connection with high

temperature silicone.

6. Install the fresh air intake (see O

utside

F

resh

A

ir

C

OnneCtiOn

).

7. Push the stove straight back, leaving a minimum of 3” (7.6 cm) clearance from the back of the stove

to the wall. Refer to Vent Manufacturers’ instructions if sealant is required.

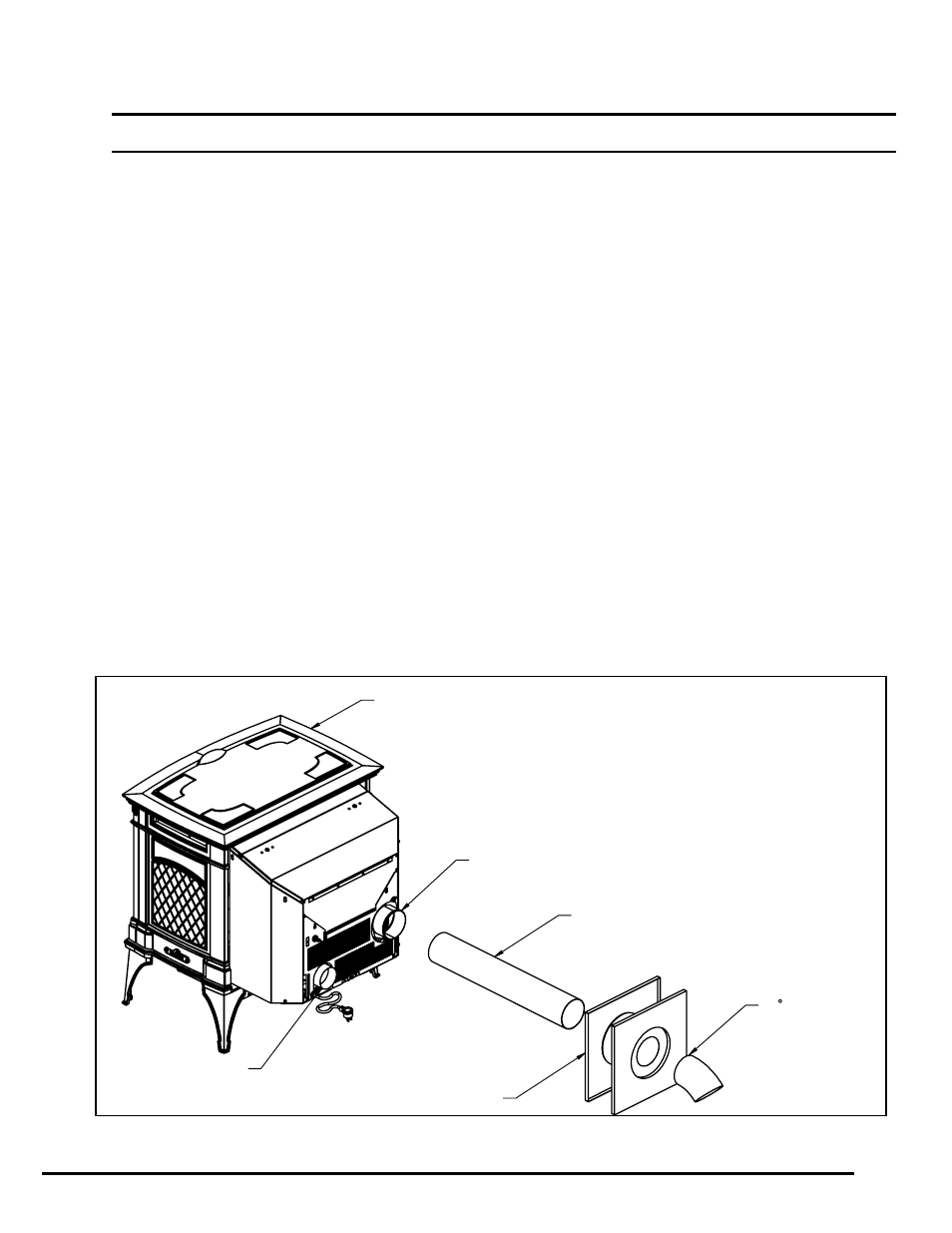

figure 11: straight through wall installation.
