Installation, Proflame system wiring diagram – Regency Bellavista B36XTCE Medium Gas Fireplace User Manual
Page 57
Regency B36XTCE Gas Fireplace
57
INSTALLATION
Proflame System
Configuration
886 GTMF
Wire Diagram

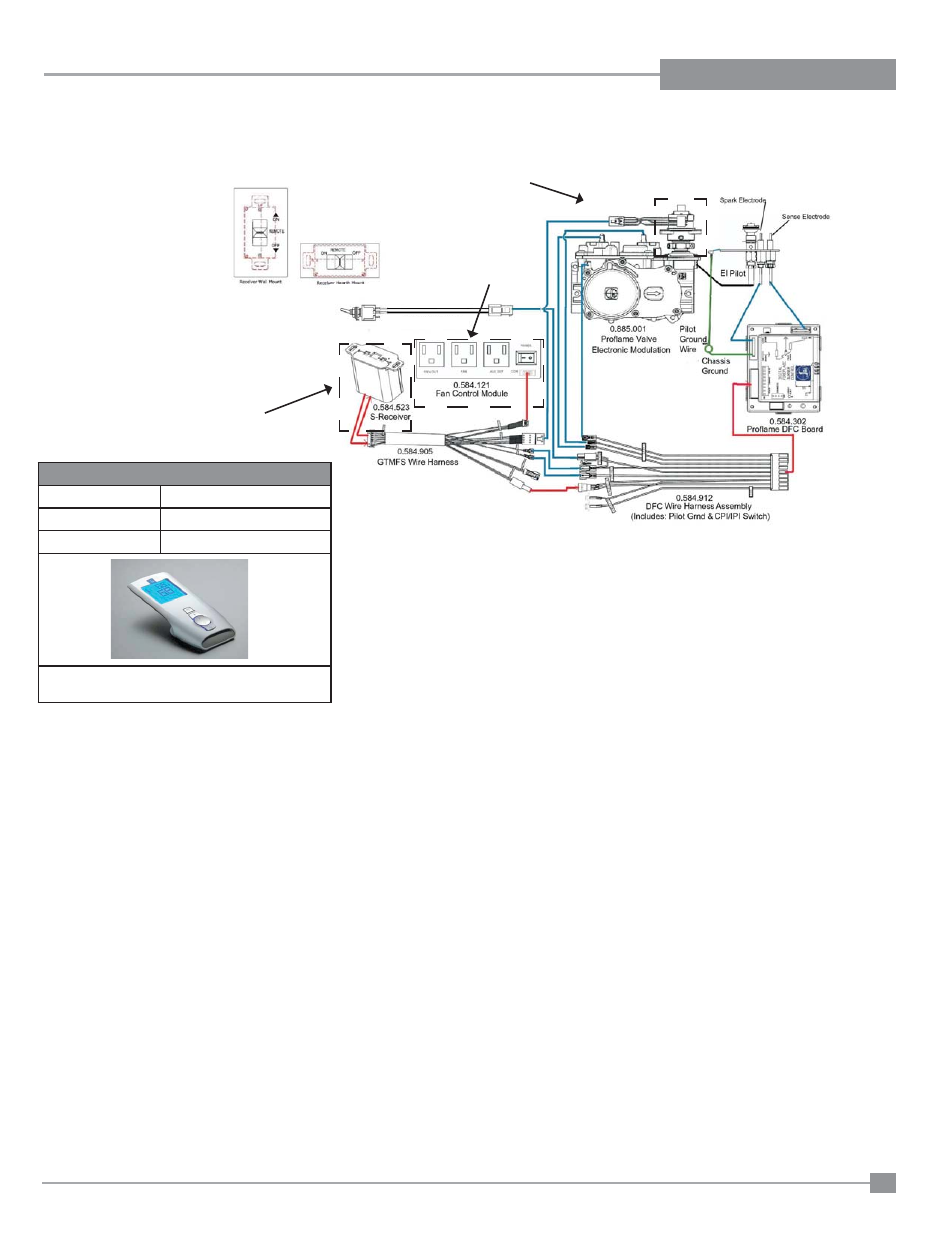

PROFLAME SYSTEM WIRING DIAGRAM
CONFIGURATION: 886 GTMF
GT, GTM, GTMF
Option
GTMF Option
GTM Option
PROFLAME REMOTE SERIES
946-690
GT Remote System
946-691*
GTM Remote System
946-692*
GTMF Remote
* Must also order a 946-693-NG or 946-694 modulator
if using the noted remote controls.
SureFire™ Switch
