INSTALLATION
MANTEL CLEARANCES
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.

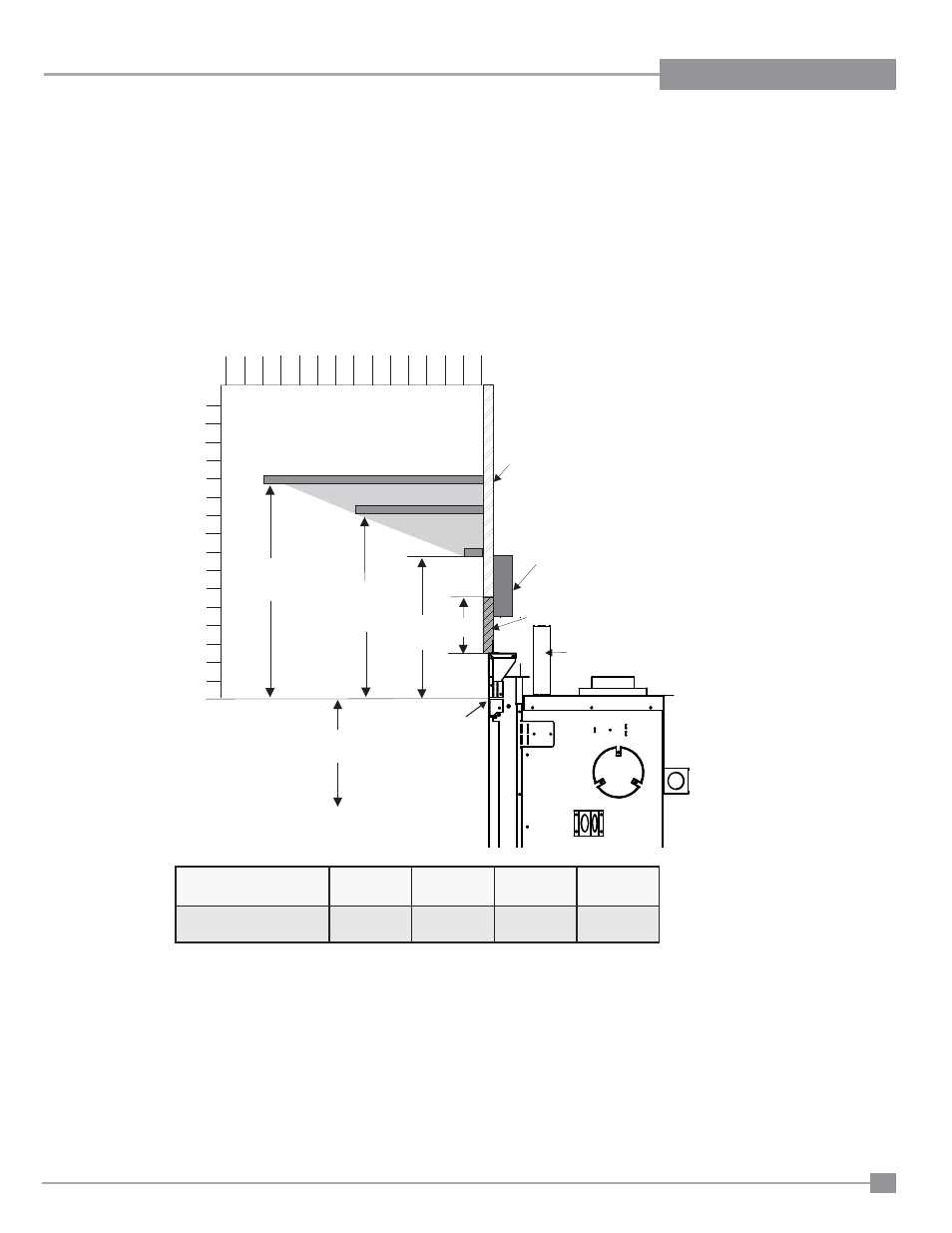

Due to the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the Diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.
Mantel Clearances
B36XTCE A B C D
From Top of Fireplace
Opening 29-11/16"
(754mm)
23-1/2"
(597mm)
20"
(508mm)
15-1/2"
(394mm)
Combustible
Mantel Clearances
2
0
12 6 4 8 10
0
Top of
Fireplace
Opening
12”
1"
7”
A
B
C
Non-combustible
Header
(steel stud)
on edge
14
To Floor
12
24
Inches
D
3-1/2”
Non-combustible
Standoff
