INSTALLATION
32-7/8"
835mm
25-5/8"
[651mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
41-5/8"
[1057mm]
40-5/8"
[1031mm]
4-1/8"
[105mm]
8-3/8"
[213mm]
3-7/8"
[98mm]
3-1/2"
[89mm]
Non combustible - supplied w/unit
J Style trim or metal
corner bead may be
used to finish edges
No Combustible
Materials in this Area
32-7/8"
835mm
25-5/8"
[651mm]

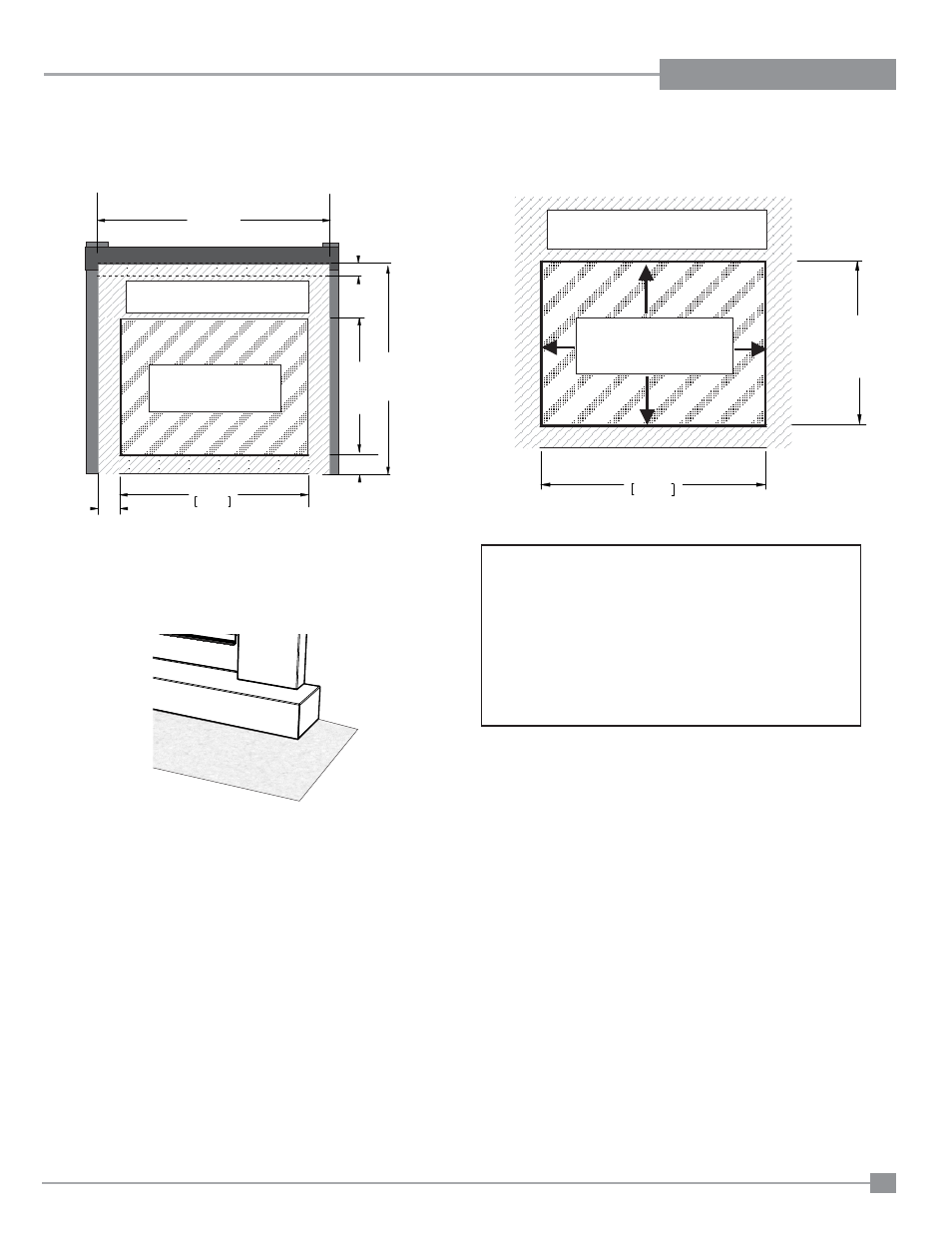

7. Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this
will assure ease of glass door removal and access to the lower panel.
NOTE: Non-combustible fi nishing materials may be of any thickness desired.
Minimum Clearances for Finishing Materials
Trim materials
Note: All non-combustible facing material should butt up cleanly
to the fl anges around the fi rebox opening.
Rough edges may be visible from an angle.
To maintain a clean fi nished edge - facing material edges
may be fi nished with a J-style trim or metal cornerbead (both
materials available at your local building or hardware store).
IMPORTANT: Materials used must be NON-COMBUSTIBLE.
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into fi nal position - it is important to know the
total thickness / height of fi nished hearth (tile, carpet, etc.) The base
of the fi replace, 4 sided faceplate or mantel should be level or higher
than the fi nished hearth height.
