12
Regency B36XTCE Gas Fireplace
INSTALLATION

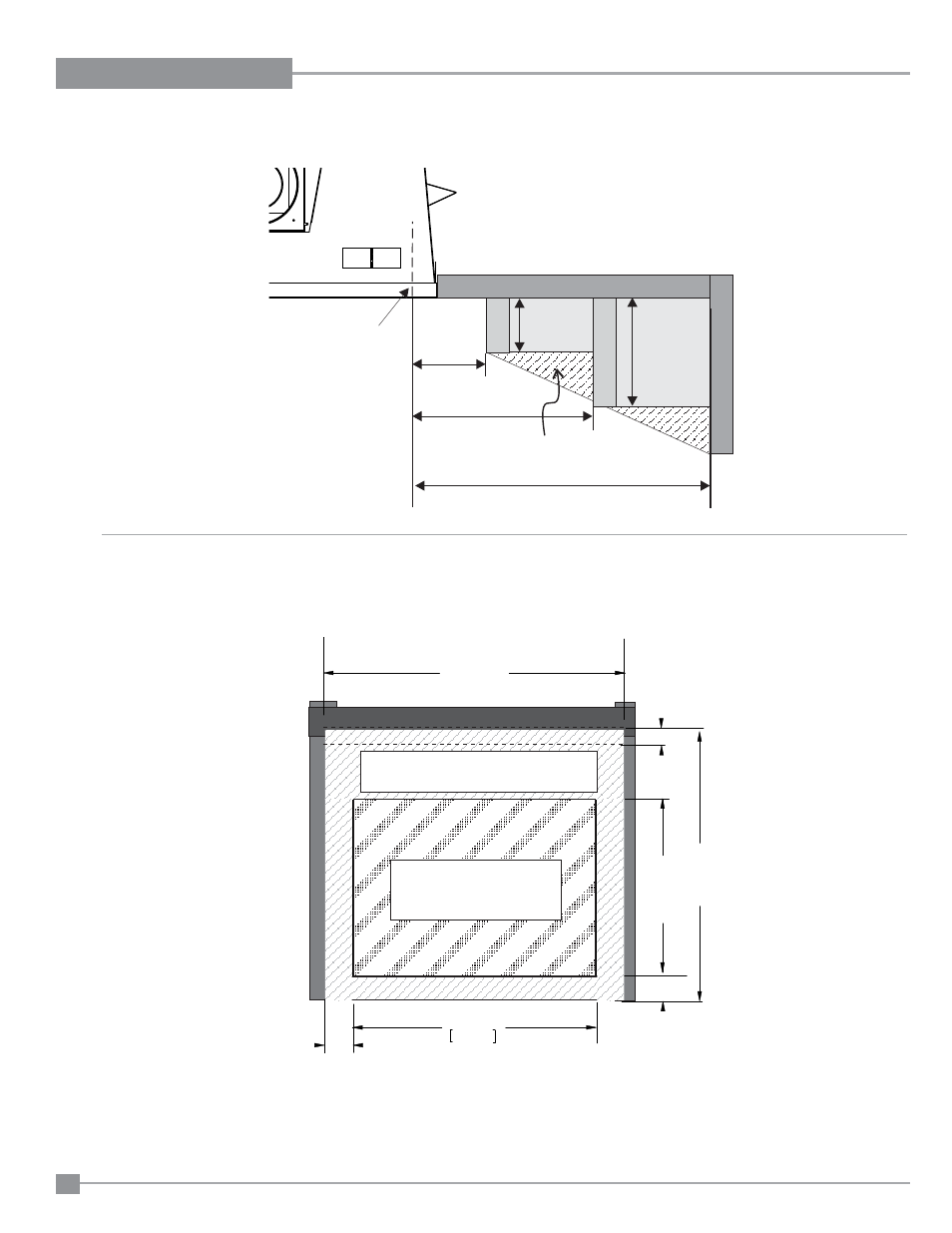

MANTEL LEG CLEARANCES
NON- COMBUSTIBLE REQUIREMENTS:
32-7/8"
835mm
25-5/8"
[651mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
41-5/8"
[1057mm]
40-5/8"
[1031mm]
4-1/8"
[105mm]
8-3/8"
[213mm]
3-7/8"
[98mm]
3-1/2"
[89mm]
Non combustible - supplied w/unit
6.5"
3.5”
Mantel leg Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"
Top View
12"
Side opening
of fireplace
See framing dimensions on next page.
NOTE: The 3-1/2" x 40-5/8" non combustible material supplied with this unit can be replaced if trying to achieve a clean fi nish. A large piece of non
combustible material (ie. 4' x 8' x 1/2") can be used to eliminate taped seams on or near unit.
