REMOTE SYSTEM

INSTALLATION

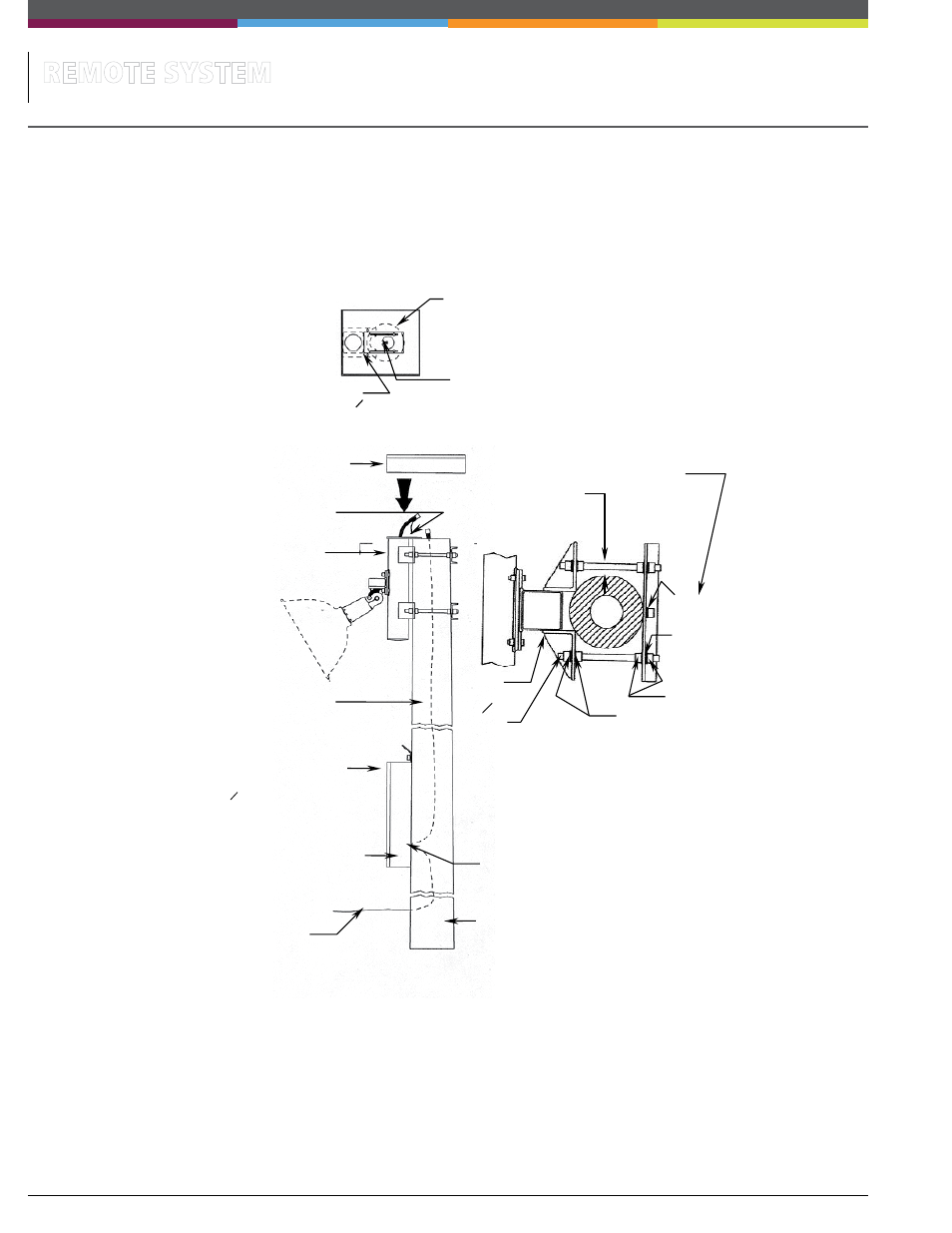

INSTRUCTIONS FOR CLAMP-ON COMPONENT MOUNTING TO CONCRETE POLES (FIG. 10)

FIELD SIDE

WIRING HARNESS
CONNECT TO PLUG IN REMOTE
BALLAST BOX AND JUNCTION
BOX AT TOP

SEAL ANY OPENINGS AROUND
BOTTOM ATTACHMENT POINT
WITH SILICONE SEALANT

SUPPLY WIRING
(BY OTHERS)

REMOTE BALLAST BOX
SECURE TO POLE WITH
¾” O BOLTS (2) AND
WASHERS SHIPPED WITH
BOX. (TIGHTEN TO 20 ft/lbs.
MAX)

JUNCTION BOX

CONCRETE POLE

BIRD GUARD/STRAIN RELIEF PLATE
(ADJUSTMENTS MAY BE REQ’D. FOR HOLE COVERAGE
AND ALIGNMENT OF WIREWAY OPENINGS)

TOP VIEW OF JUNCTION BOX

ATTACH WIRING HARNESS
STRAIN RELIEF HERE

SECURE JUNCTION BOX TO
CROSSARM ASSY. WITH ¼” O
BOLTS (2), WASHERS & NUTS
SHIPPED WITH JUNCTION BOX

GASKET BETWEEN POLE & REMOTE
BALLAST BOX FOR WATERTHGHT SEAL

THESE BOLTS SHIPPED WITH POLE
(TIGHTEN TO 20 ft/lbs MAX)

BOLT (2)
AND WASHERS

LOCK WASHER

NUT

FLAT WASHER

KEEP DISTANCE
TO A MINIMUM

CROSSARM ASSEMBLY

SECURE GRD WITH GRD SCREW
INSIDE JUNCTION BOX

CROSSARM
ANGLE

¾” O THD
ROD (4)

CROSSARM MOUNTING HARDWARE SHIPPED

WITH CROSSARM ASSEMBLY

NOTE: TIGHTEN ALL NUTS ON THREADED RODS
SNUG THEN AN ADDITIONAL ONE QUARTER TURN. DO
NOT OVERTIGHTEN TO CAUSE BENDING OF CHANNEL
OR CROSSARM ANGLES.

FOR DETAILED INSTALLATION INSTRUCTIONS
FOR THE REMOTE BOX, SEE THE INSTRUCTION
SHEET INCLUDED WITH EACH.
