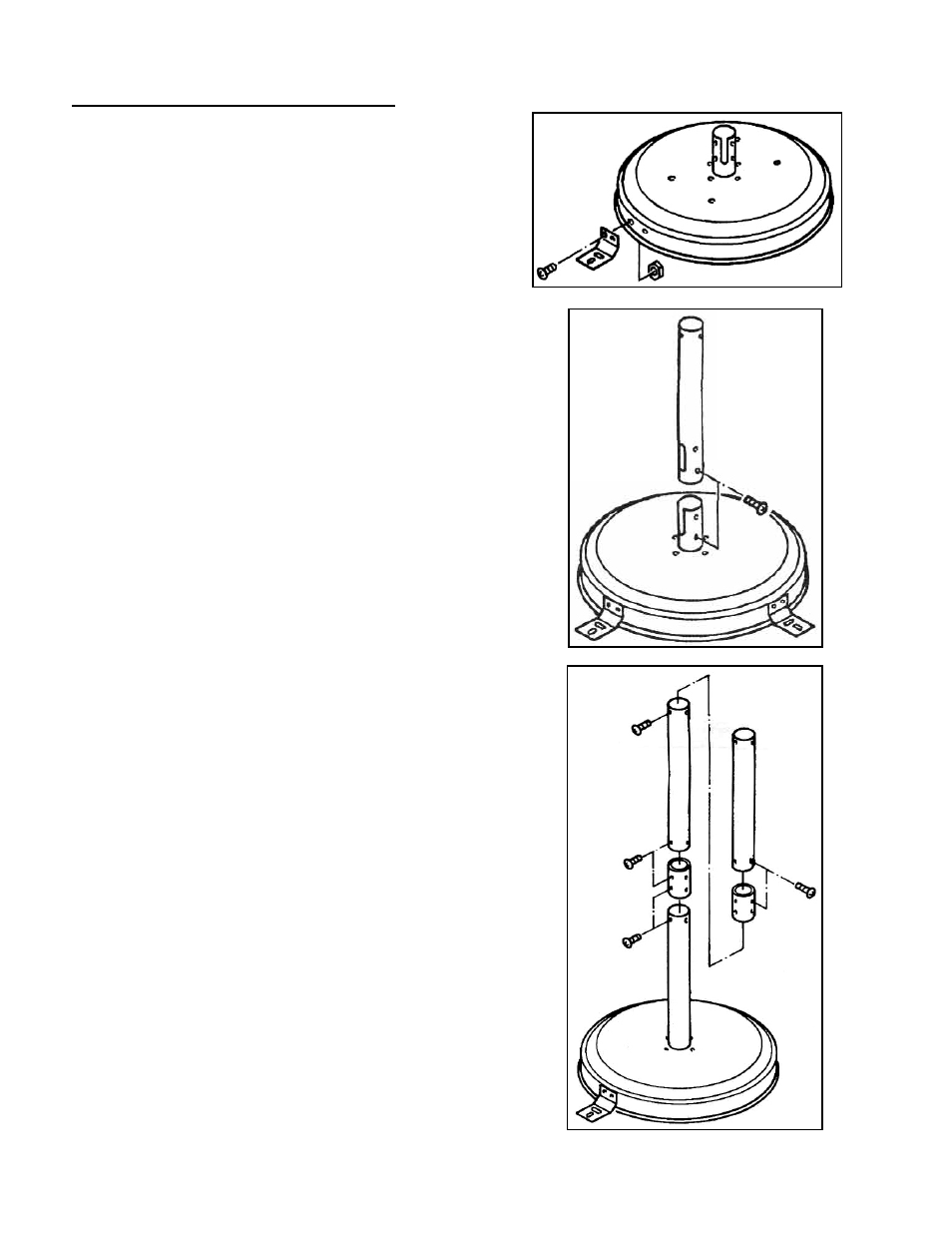

6. ASSEMBLY INSTRUCTIONS
Using screws, place L-shaped stabilizers to bottom
base.
Secure with nut on inside of bottom base.
Page 5
Place base post on the bottom of the base in upward
position.
Secure using screws.
Connect all center post sections together.
Secure with screws.
