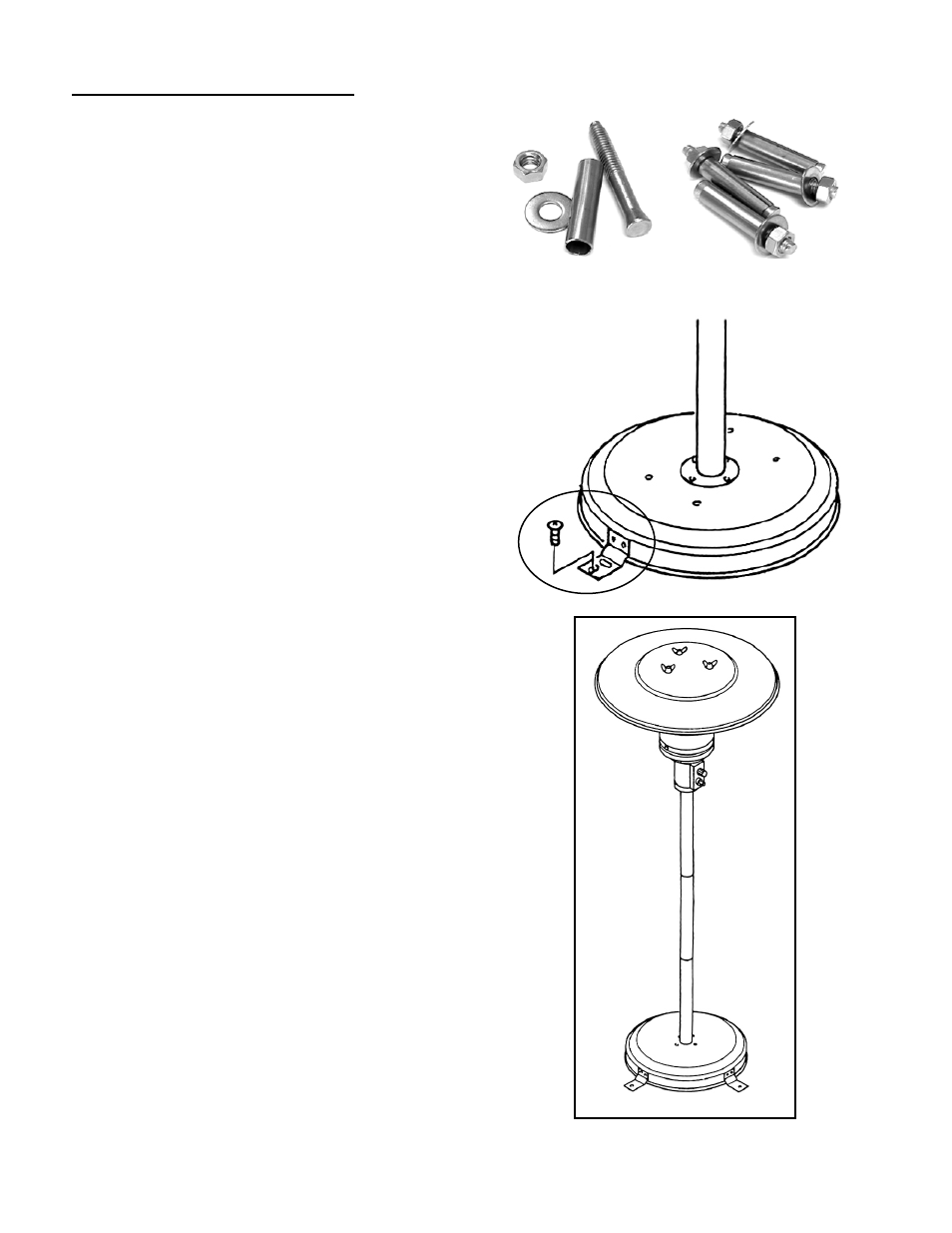

If placing on concrete patio only:
Drill 3 holes 1 3/4” deep using the 3/8” masonry
drill bit (not supplied). Insert the 3 x 3/8” lag
bolts provided, tapping them in using the hammer
shaft until the washer stops it at the floor. Tighten
the nuts down tight and the stud threads will get
longer.
Remove the nuts and washers, leaving 3 x
threaded studs sticking out of the concrete.
ASSEMBLY..... CONTINUED
Bolt 3 bolts down into the ground to secure heater
into place through the opening on the L-shaped sta-
bilizers.
Check that the center post and the burner assembly
stand vertically as shown.
Make sure all bolts and nut pairs are tightened.
Ensure correct connection by local gas professional.
Setup is now complete.
