TABLE 1 MINIMUM CLEARANCES TO COMBUSTIBLES*

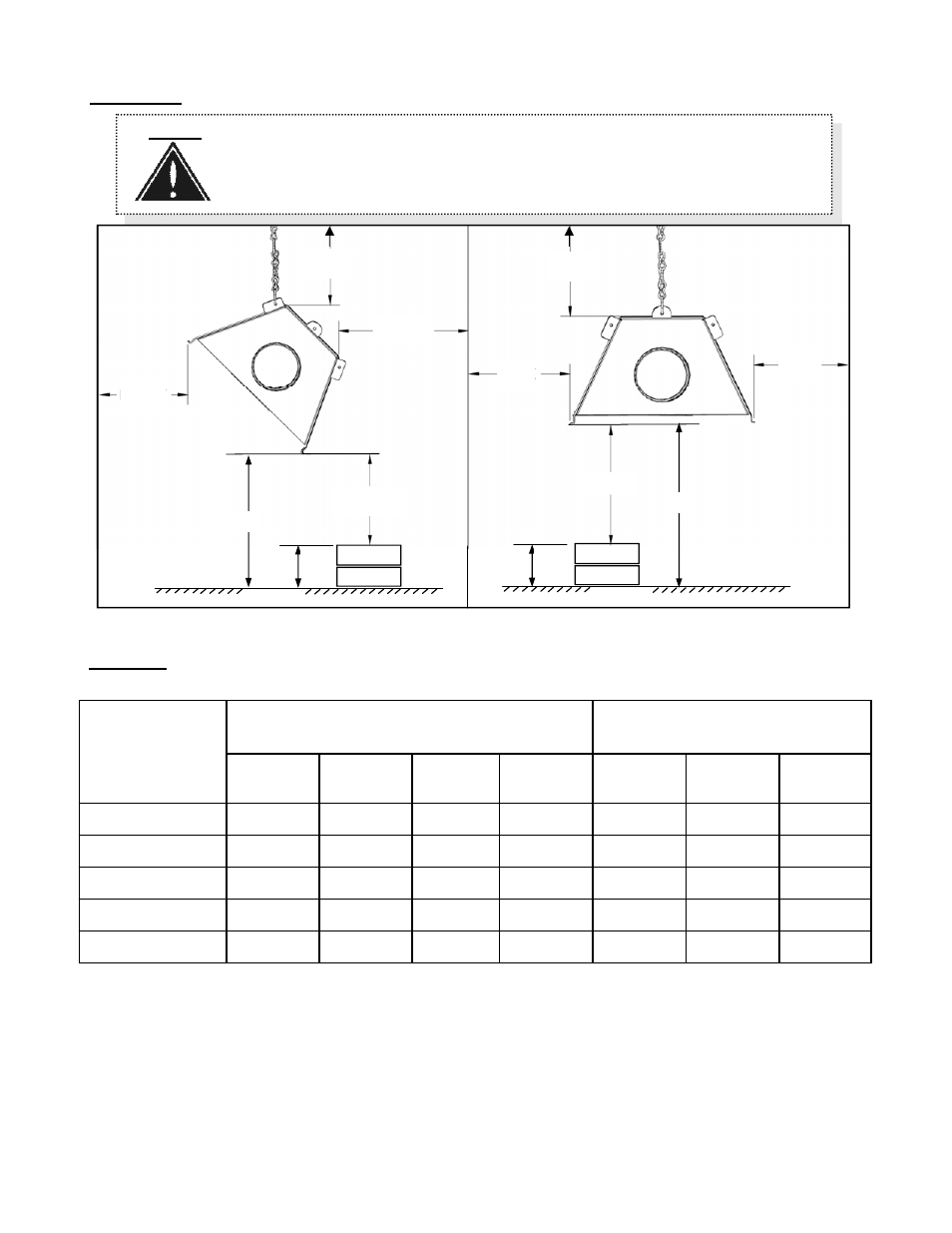

FIGURE 1 MINIMUM CLEARANCES TO COMBUSTIBLES* - refer to Table 1 for values
*The clearance to combustible materials represents the minimum distance that must be main-
tained between the heater and a nearby surface. The stated clearance to combustibles
represents a surface temperature of 90F° (50C°) above room temperature.
NOTE: A ‘PEEL & STICK’ SIGN IS SUPPLIED: USE AN INDELIBLE MARKER TO
ENTER VALUES ‘H’, ‘S’, ‘F’, & ‘B’ ON .
POST THE SIGN ADJACENT TO THE HEATER THERMOSTAT OR IN A
PROMINENT LOCATION.
See next page for details.
F
D
B
A
S
S
C
Suspended at an
angle up to 45°
Suspended
horizontally
C
FLOOR
H
T
H
M a x i m u m
Stack Height
H = T- C
‘T’ is meas-
ured on site,
FLOOR
T
M a x i m u m
Stack Height
H = T- C
‘T’ is meas-
ured on site,
MODEL
SUSPENDED AT AN ANGLE
UP TO 45 DEGREES
SUSPENDED
HORIZONTALLY
D
inches (cm)
B
inches (cm)
F
inches (cm)
C
inches (cm)
A
inches (cm)
S
inches (cm)
C
inches (cm)
STV-JZ 155
5.5
(14)
1 (2.5)
44
(112)
64
(163)
3.5 (9)
19 (48)
64
(163)
STV-JZ 130
4.5
(11)
1 (2.5)
35 (89)
60
(152)
3.3 (9)
11 (28)
60
(152)
STV-JZ 110
3.5 (9)
1 (2.5)
26 (66)
54
(137)
2 (5)
10 (25)
54
(137)
STV-JZ 80
3 (8)
1 (2.5)
23 (59)
38 (97)
1.75 (5)
6 (15)
38 (97)
STV-JZ 60
2.5 (6)
1 (2.5)
17 (43)
34 (86)
1.5 (4)
5.5 (14)
34 (86)
