30 replacement parts list - burner stv-jz burner – Schwank STSV User Manual
Page 51
51
STV-JZ I&O Manual
IM090512
RD: MAY 2009
RL: 08A- BA
#
PART DESCRIPTION
PART #
PART DESCRIPTION PRIMARY
SUPPLEMENT
1
AIR INLET COLLAR
JS-0595-AA
4" Diameter Air Inlet Collar
2
MANIFOLD BUSHING
JM-0589-XX
Manifold Bushing
3
90 DEGREE ELBOW FITTING
JS-0588-XX
Elbow Fitting 90 Degrees
4
COMB.GAS VALVE
JL-0701-AA
Valve gas comb 3.5" WC 24VAC VR8 NG
COMB.GAS VALVE
JL-0703-AA
Valve gas comb 10" WC 24VAC VR8 LP
5
4" NIPPLE
JS-0590-XX
Nipple 4"
6
GREEN INDICATOR LIGHT
JM-0524-GR Indicate Light Green 24 Volts
7
AMBER INDICATOR LIGHT
JM-0519-AM Indicate Light Amber
8
RED INDICATOR LIGHT
JM-0519-RE
Indicate Light Red
9
SCREW SELF DRILL
JF-8X12-HT
Screw Self Drill 1/2"
10
TERMINAL BLOCK
JM-0455-DD Terminal Block
11
IGNITION CONTROL
JA-0568XX
Control DSI 24VAC S87J-1034
12
COMPONENT PLATE
JS-0581-XX
Component mounting plate
13
FLEXIBLE TUBE
JW-3NFP-XX Flexible Tube Wire Protection 2'

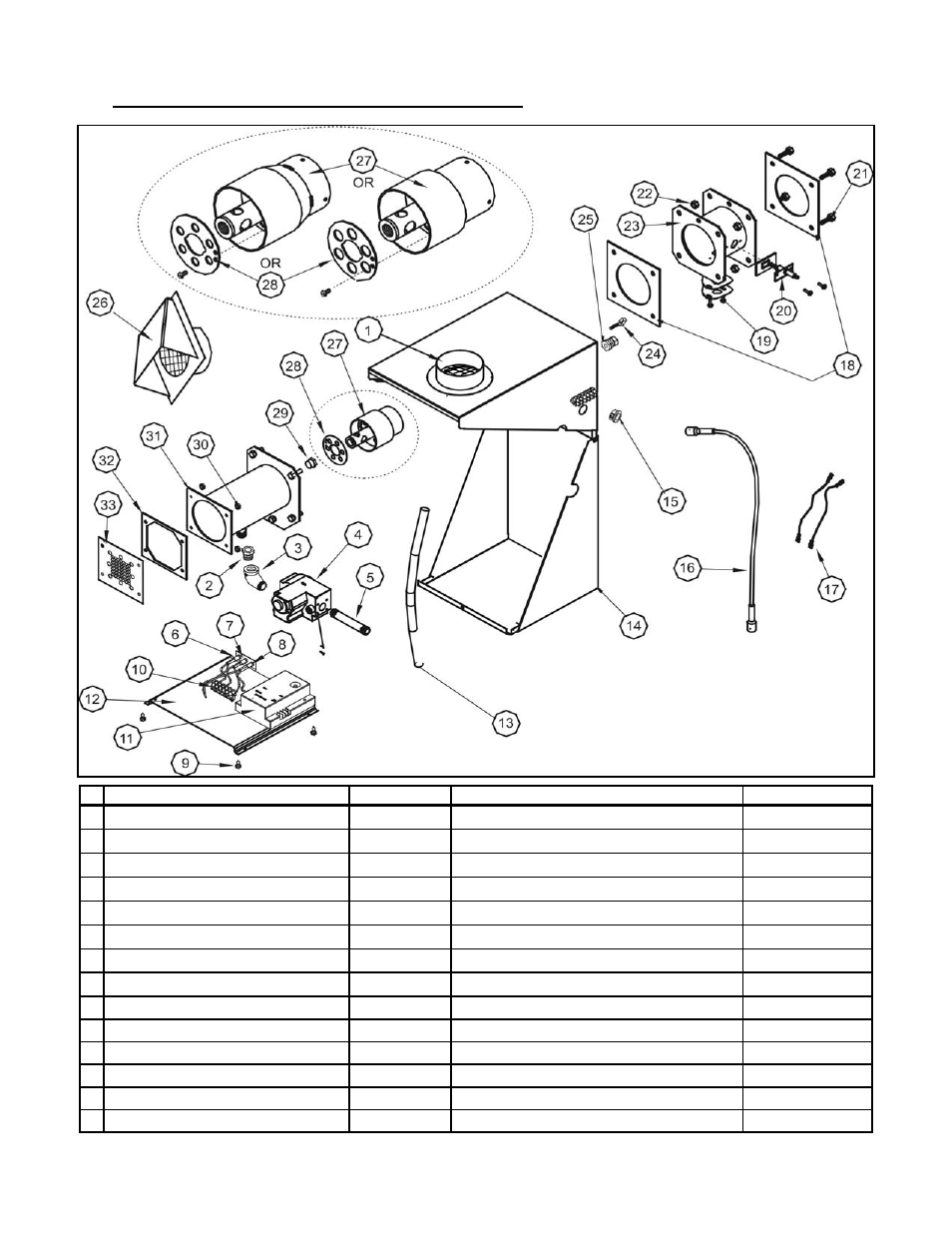

30 REPLACEMENT PARTS LIST - BURNER
STV-JZ Burner
