54
STV-JZ I&O Manual
IM090512
RD: MAY 2009
RL: 08A- BA

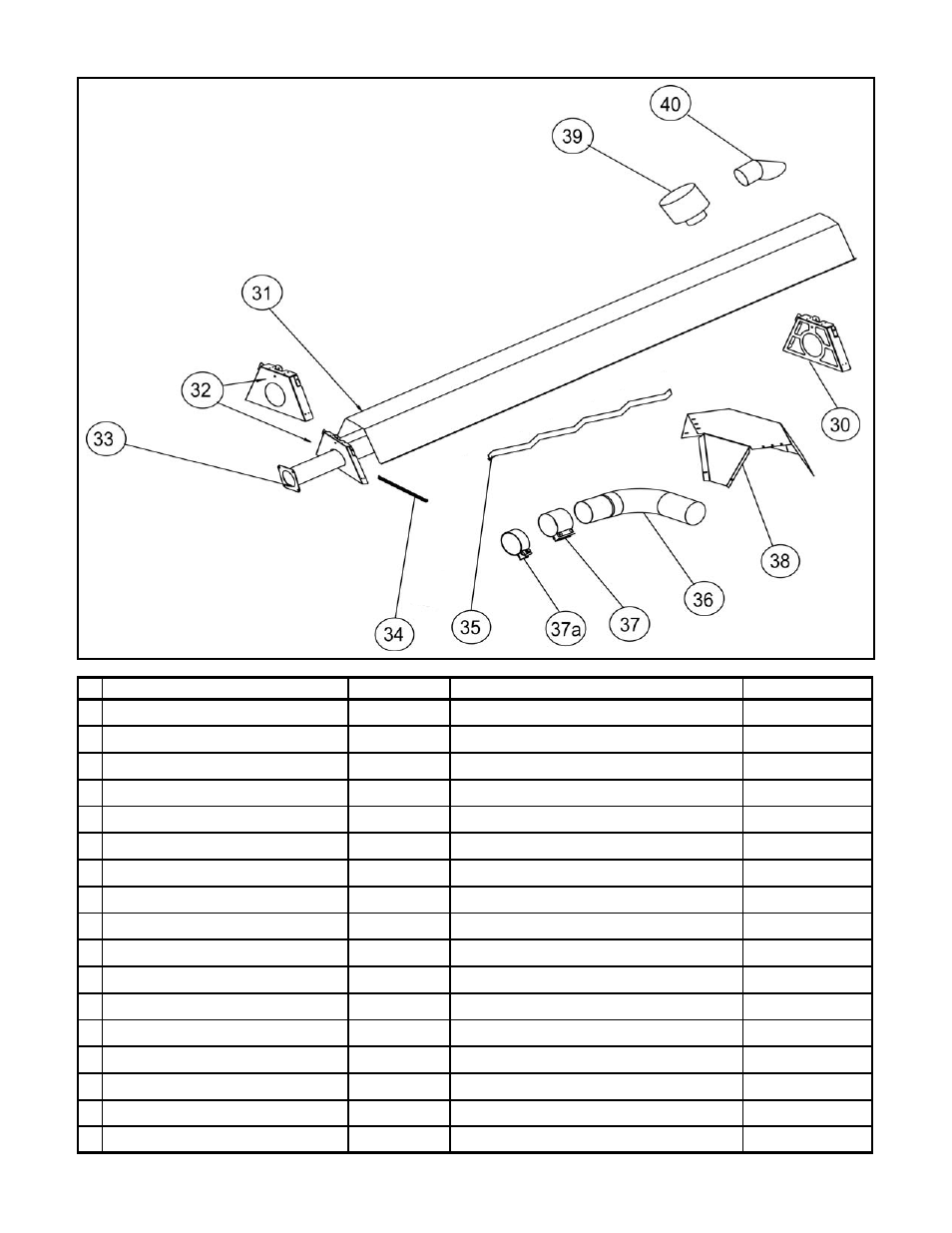

# PART DESCRIPTION PART # PART DESCRIPTION PRIMARY SUPPLEMENT
30 WEBBED HANGER JS-0505-JZ Webbed Hanger each
31 REFLECTOR JS-0502-JZ Reflector 24" x 116" each
32 END PLATE HANGER JS-0506-JZ End Plate hanger each
33 LOW INTENSITY TUBE JA-0501-PA-P Tube flanged aluminized sw no ports 45,000
JA-0501-SW-P Tube flanged aluminized sw no ports 60,000-155,000
JA-0499-SW-P Tube flanged alumatherm sw no ports 175,000-200,000
JS-0501-SK Tube aluminized 10' Slotted with AccuSeal Clam 175,000-200,000
JS-0515-SW-P Tube steel coated sw 10' each
34 REFLECTOR BRACE JS-0506-RB Reflector brace each
35 TURBULATOR JS-0533-SH Turbulator short 4' 60,000-130,000
JS-0533-LG Turbulator 10' 60,000-200,000
36 ELBOW 4" JA-0508-SW Elbow 90 deg
37 COUPLER JA-0516-SW Coupler 4" sw tube each
37a ACCUSEAL CLAMP 4" JA-0516-SA 4" Clamp for slotted Aluminized Tube 175-200
38 90° ELBOW REFLECTOR JS-0503-US Reflector Cap for 90° Elbow
39 VENT CAP JA-0530-XX Vent cap 4" roof
40 VENT CAP JA-0528-XX Horizontal wall 4" vent terminal
STV-JZ
TUBE SYSTEM PARTS
