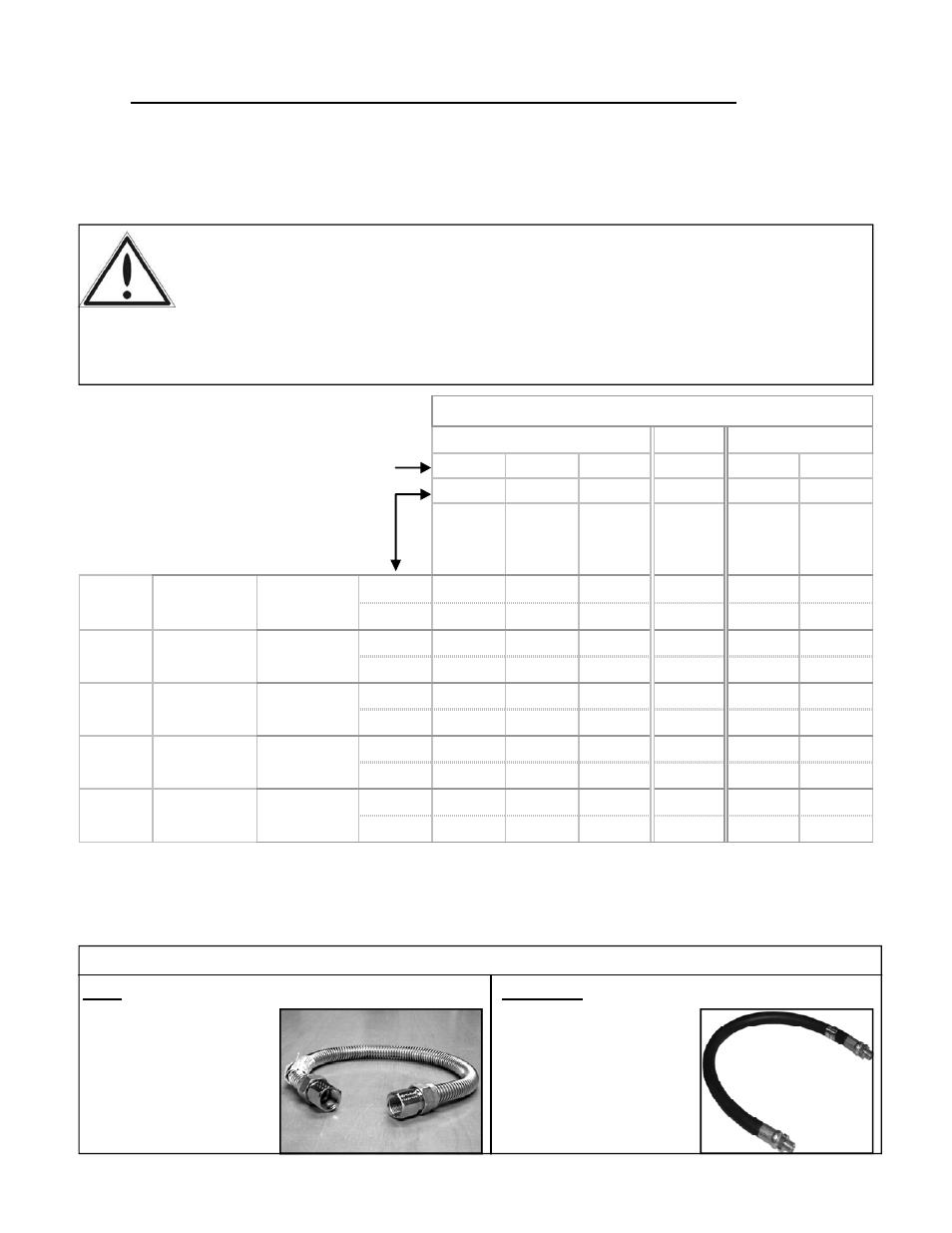

26. BURNER & TUBE KIT ASSEMBLY CHART MODELS STV-JZ
MODELS STV-JZ are approved for indoor commercial / industrial non-residential applications.
For outdoor, wet and harsh environment applications refer to models SPW-JZ / IWP (powder
coated burner box) and/or STW-JZ / IW (stainless steel burner box).
BEFORE INSTALLING: ENSURE you have the CORRECT TUBE KIT(s) for the
BURNER INPUT
USA: S/S Flexible Gas Connector is supplied with the Burner Kit
CANADA: Type 1 Hose Gas Connector is supplied with the Burner Kit
Primary
Tube Kit Gross Weight (lbs) 120 170 210 165 120 165
Nominal Length (ft) 20' 30' 40' 30' 20' 30'
INPUT
Btuh
TS-1420-
JZ
TS-1430-
JZ
TS-1040-
JZ
TS-F030-
JZ
TS-0020-
JZ
TS-0030-
JZ
20' 1
30' 1
30' 1
40' 1
40' 1
50' 1+ 1
40' 1
50' 1+ 1
50' 1+ 1
60' 1+ 1
Stand-Alone tube kits require no additional tube kits.
Primary tube kits require at least one additional Secondary tube kit.
Secondary tube kits require a Primary tube kit.
JS-V155-BN JS-V110-PM
60,000
80,000
110,000
130,000
155,000
JS-V110-BN JS-V110-PM
JS-V130-BN JS-V110-PM
JS-V060-BN JS-V060-PM
JS-V080-BN JS-V080-PM
STV-JZ TUBE KIT PART # & QUANTITY REQUIRED
Stand-Alone + Secondary Kits
BURNER KIT
Gross Wt = 25
lb
VACUUM
PUMP Kit
USA - Stainless Steel Flexible Gas Connector
130,000 or less:
JL-0771-XX - 1/2”x24”
155,000 or more:
JL-0771-YY - 3/4”x36”
FLEXIBLE GAS CONNECTOR (Included in Burner Kit) - MUST INSTALL - Section 13
CANADA - Type 1 Hose Gas Connector
130,000 or less:
JL-0771-RC - 1/2”x36”
155,000 or more:
JL-0771-RB - 3/4”x36”
