Schroth Racing AutoControl III - Manual (Page 8)

8

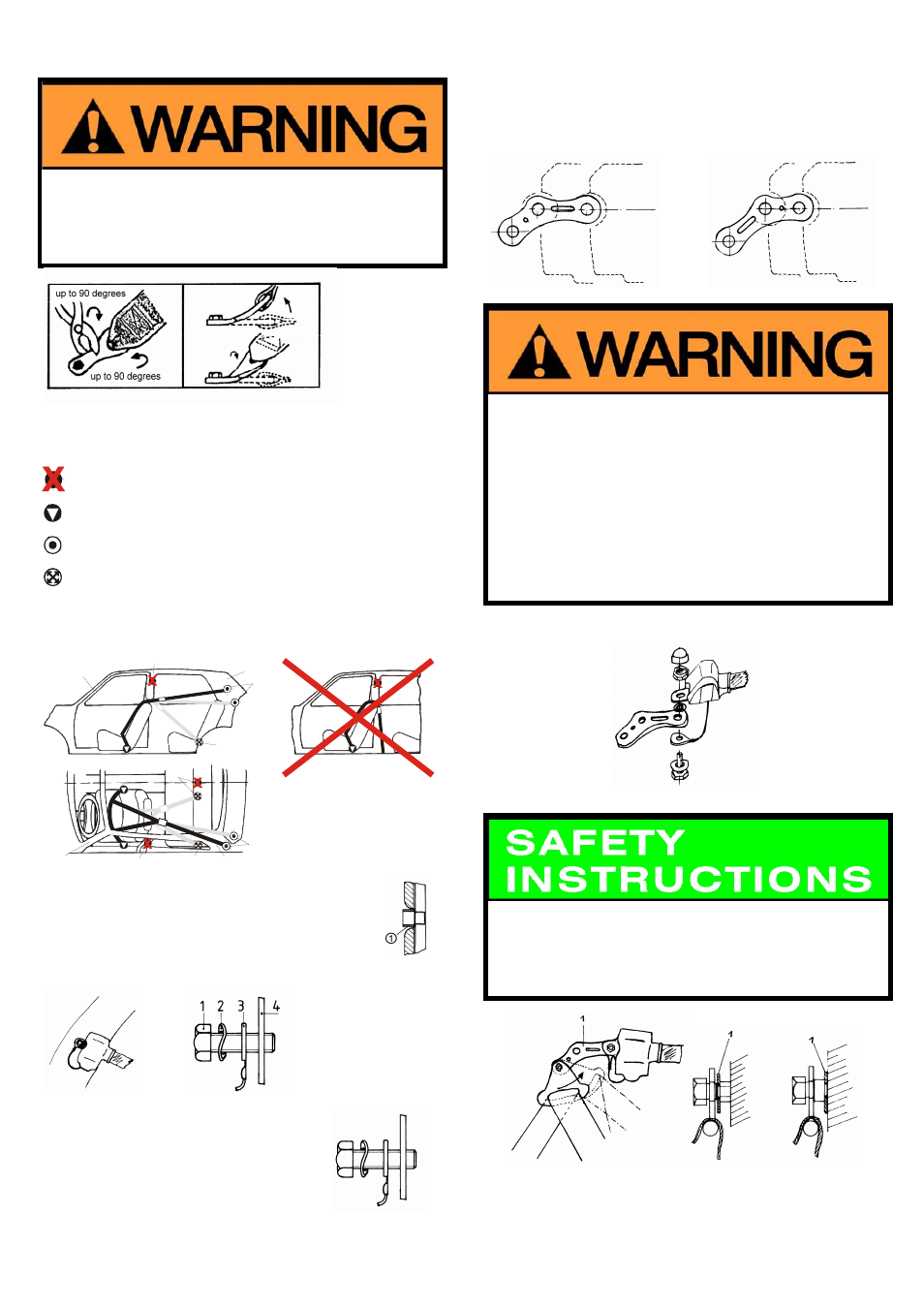

4 Flexible range of the seat belt mounting brackets
Repeated bending could weaken the bracket and cause it
to fail when loaded in an accident.
Never bend the bracket back and forth several times.
Any pivoting brackets of the stock 3-point belts must not
be limited in their range of motion.
5 Installation of retractor and ground wire
anchor points are not suitable
attachment of the lap belt portion of the harness belt
anchor points “C” are suitable
anchor points “D” and/or “E” are suitable only if allowed
for your vehicle’s make, model and model year and it is
used with an approved seat
[See Certified Vehicle List (Vehicle Reference List) and
heed all indexes.]
D + E
C
A-pillar
B-pillar
C-pillar
E
C
D
A-pillar B-pillar C-pillar
If retractor is installed at anchor point "C"
(without stock 3-point belts for outboard rear seats)
If necessary open panel covering at anchor point "C"
use spacer sleeve [1].
Bolt retractor directly to the anchor point
1 = bolt
2 = spring washer
3 = eye of ground wire
4 = retractor
To assure a proper ground, make sure
that the eye of the ground wire is located
between the spring washer and retractor
body (or the C-pillar mounting bracket, if
used). Take care not to crack the wire
when tightening.
Installation with bracket for C-pillar mounting
Choose the positioning of the bracket depending on the
installation situation as shown below.
Also select the position at the bracket for the installation of the
retractor.
Heed following WARNINGs!
The retractor
1. must be installed at a sufficient distance from the stock
3-point belt swivel attachment so the range of motion of
the stock belt is not restricted,
2. must be located as far as possible to the rear of the car.
The retractor must be well away from the head of the
rear seat passenger and the rear door,
3. must be positioned in direction of the pull of tail strap
when the belt is worn (see illustration).
4. must not lay on the backrest of the rear seat, so that it
cannot be positioned in direction of the tail strap
webbing.
Assembly for installation of the retractor to the bracket.
Bolt length: ¾"
• Depending on the design of the anchorage of the stock 3-
point belt, the C-pillar mounting bracket [1] must be
attached to the original assembly so that swivel
attachments will not be impeded or restricted in their range
of motion.
The SCHROTH bracket [1] can be carefully bend up to an
angle of 45 degrees and be twisted up to 90 degrees.
W R O N G
