6

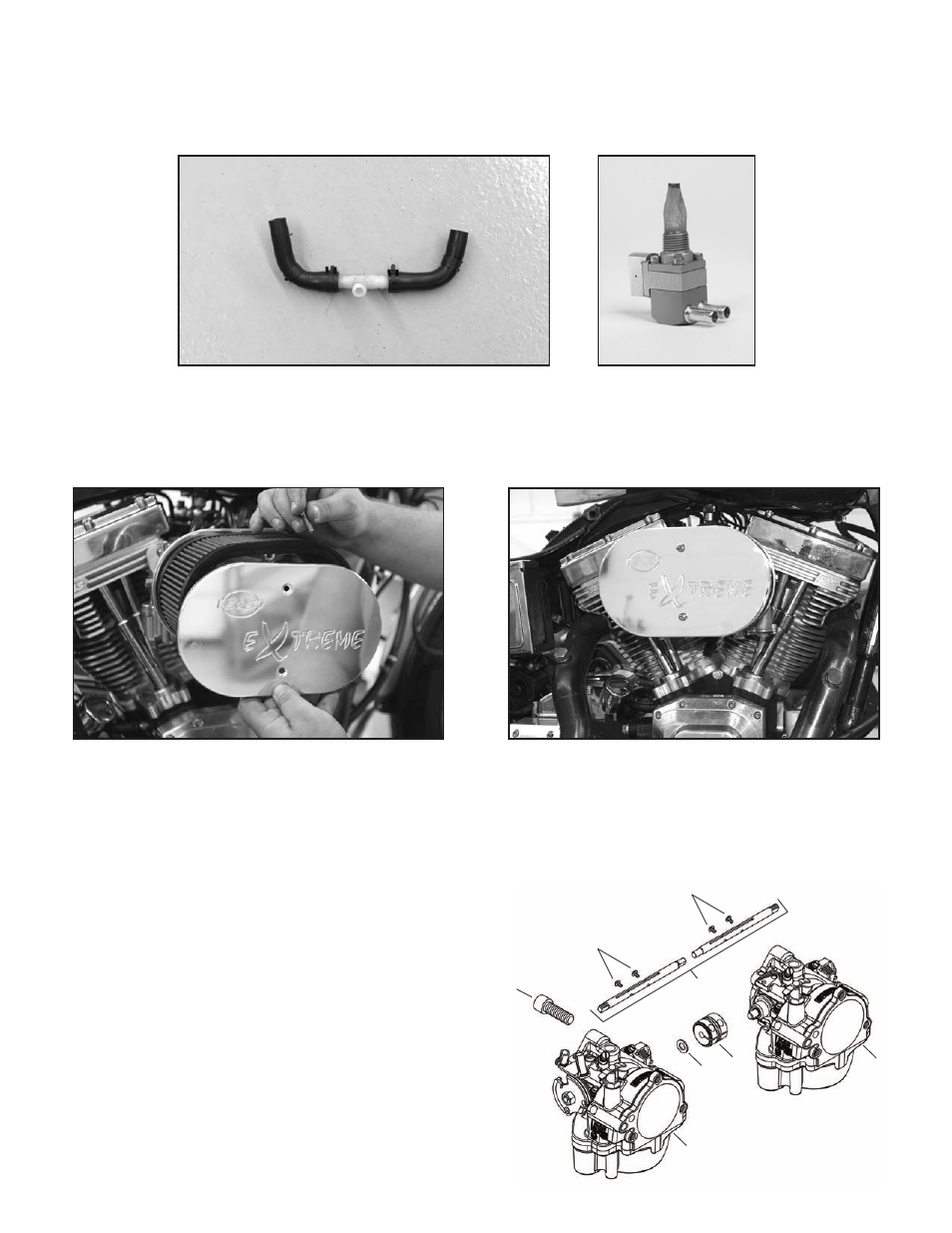

9- You will need a crossover fuel fitting such as the one shown in this Picture 12. The T-shaped fitting should be easy to find in an automotive
supply facility. Connect the center of the T-Fitting to the fuel line coming from the fuel supply valve (be sure to use the fuel line insulator).
Another alternative is to purchase a dual outlet petcock from Pingle similar to the one shown in the Picture 13. This dual outlet petcock is
offered in serveral styles and applications. See Pingle's web site for more information.
Picture 12
10- Verify the operation of both carbs by rolling on and off the throttle a few times. Be sure to check the set-screws on the throttle shaft coupler.
Once you are sure everything moves freely, slide the air cleaner element in place, followed by the polished cover. Use the supplied 1/4-20 x 1-
inch screws and blue threadlock before tightening them.
Picture 14 Picture 15
11- Reconnect the battery ground cable and turn the fuel supply valve on.
NOte: See Tuning Tips on Page 8.
4
1
2
3
6
6
5 7
G-E
xtrEmE
C
arburEtor
K
it
Replacement paRts FoR supeR G-extReme® Dual caRbuRetoR system
C
arburEtor
K
it
1. Carb, Super G-Extreme, Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-0176
2. Carb, Super G-Extreme, Rear (includes throttle shaft coupler)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-0178
3. Flat washer (12 pack) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50-7013
4. Coupler, Throttle shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-8525
5. Throttle shaft kit
(Includes front and rear throttle shafts, and throttle plate screws)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2407
6. Screw, SLTD RH 6-32 x 1/4 (12 pack) . . . . . . . . . . . . . . . . . . . . . . . . . 50-0064
7 Screw, SHC, 3/8-16 x 1 (10 pack). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-0186
NOTE: Only parts specific to G-Extreme are shown. All other carburetor parts are
the same as regular Super G carbs. Refer to page 3-22
Picture 13
