5- In order to install the G carburetors, position the mounting hardware in the manifold first. Next, install the front carburetor with the mounting bolts
snug but not tight. Be sure the set-screws on the throttle shaft coupler are loose and facing forward. Now, slide the rear carburetor into place and
onto the extended shaft of the front carburetor at the same time. Snug the rear carburetor mounting bolts—but do not tighten them.

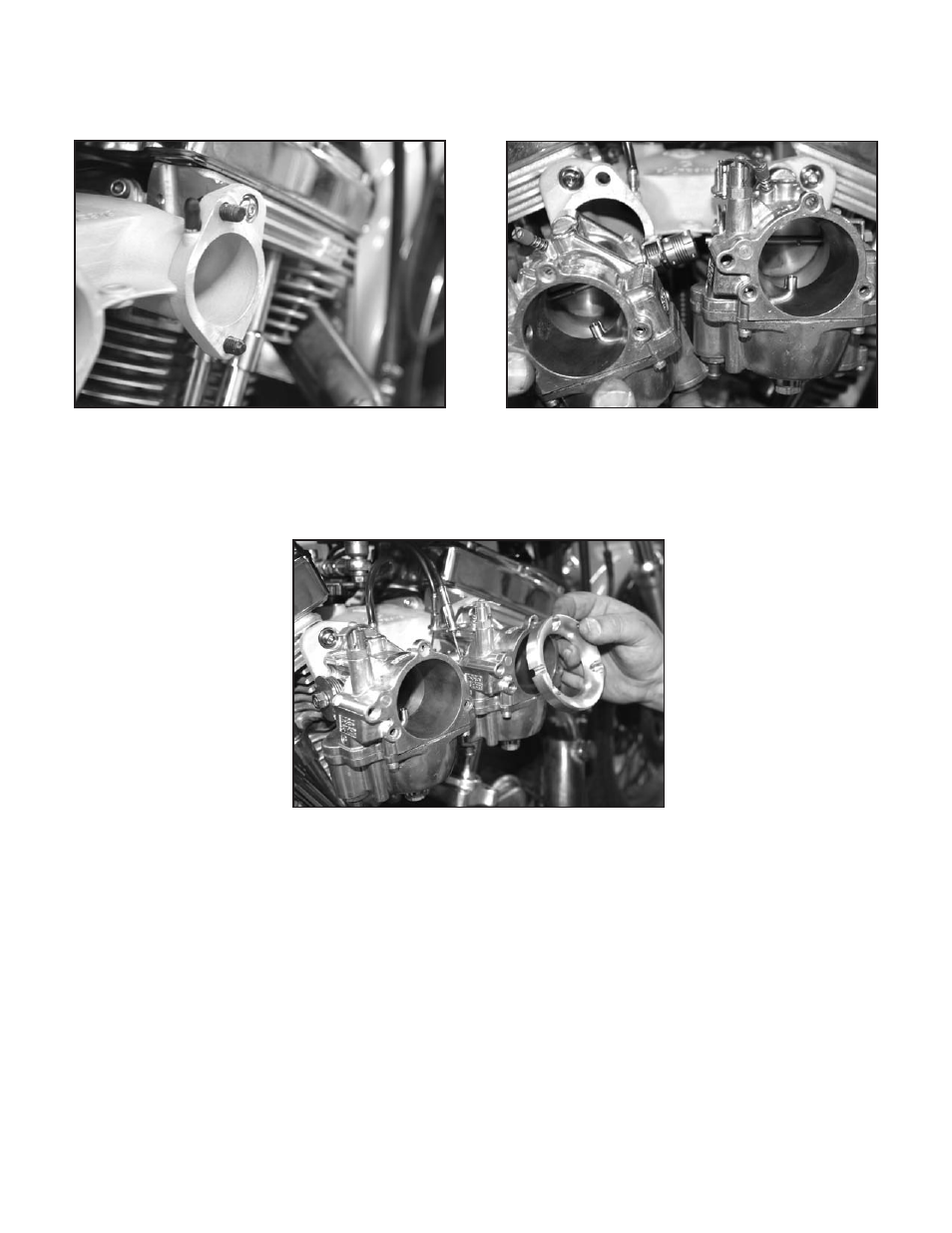

Picture 6 Picture 7
6- If you are installing the G-Extreme® with Radiused Air Inlets or Air Horns, tighten the carburetor mounting screws now. Then install the Radiused
Air Inlets or Air Horns using 1/4-20 x 1/2-inch screws coated with blue threadlock. Tighten them to 10 to 12 ft-lbs. Tighten the set-screws on the
throttle shaft coupler and install the throttle cables on the front carburetor.
