S&S Cycle 2006-Up Gear Drive Cams for Harley-Davidson Twin Cam 88 Engines User Manual
Page 4
4
G- Remove bolts and washers from the cam drive sprocket and crankcase sprocket.

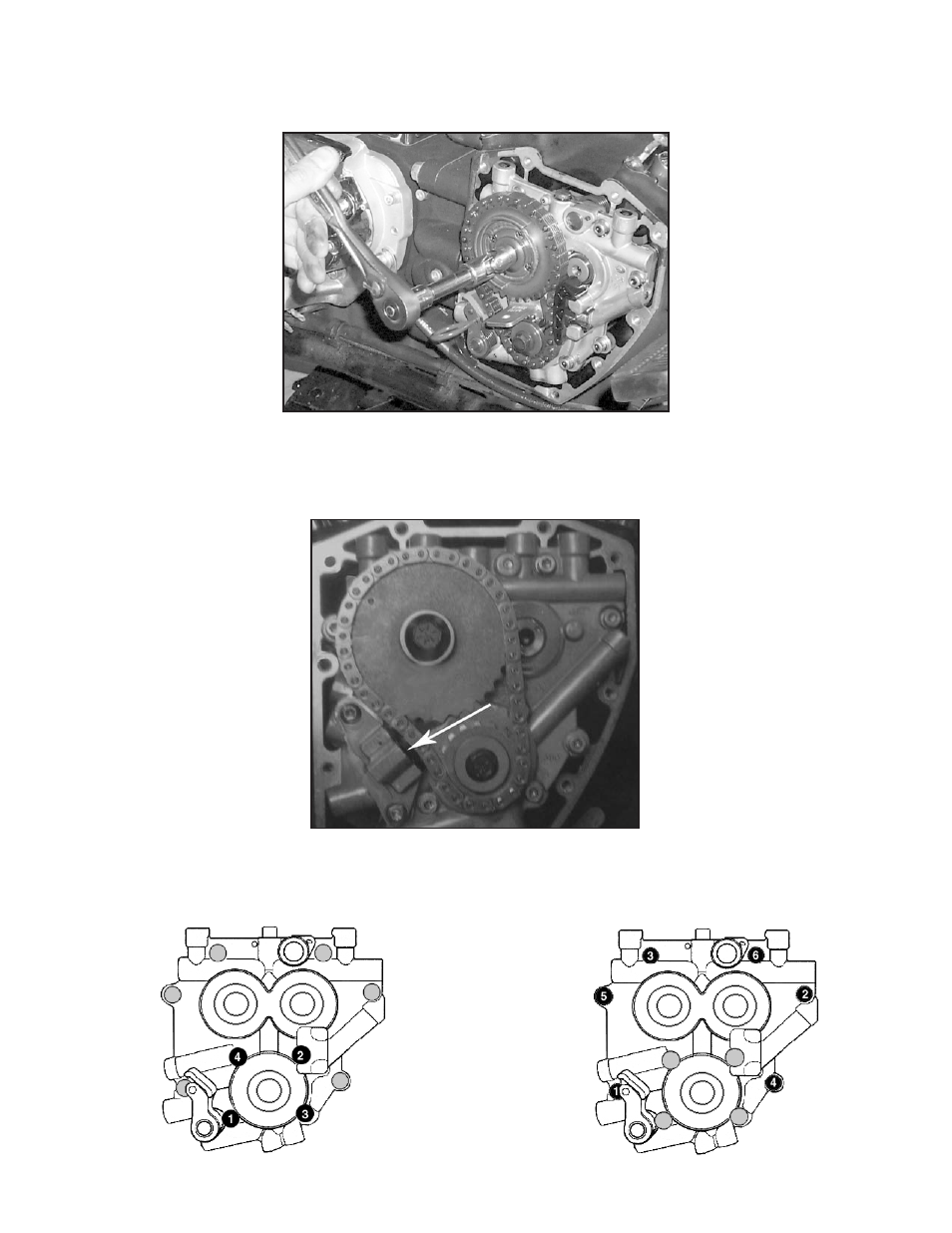

NOTE: S&S recommends using H-D® sprocket locking tool H-D# 42314 to secure sprockets while bolts are being removed. See Picture 2.
Picture 2
H- Working gradually around the edge of the sprocket, carefully pry the sprockets loose. Remove the sprockets and chain assembly.
I- Remove the front hydraulic chain tensioner assembly. See Picture 3.
Picture 3
J- Follow the sequence shown and alternately loosen and remove the oil pump bolts. See Figure 1.
K- Follow the sequences shown and alternately loosen and remove the cam support plate bolts. See Figure 2.
Figure 1
Figure 2
